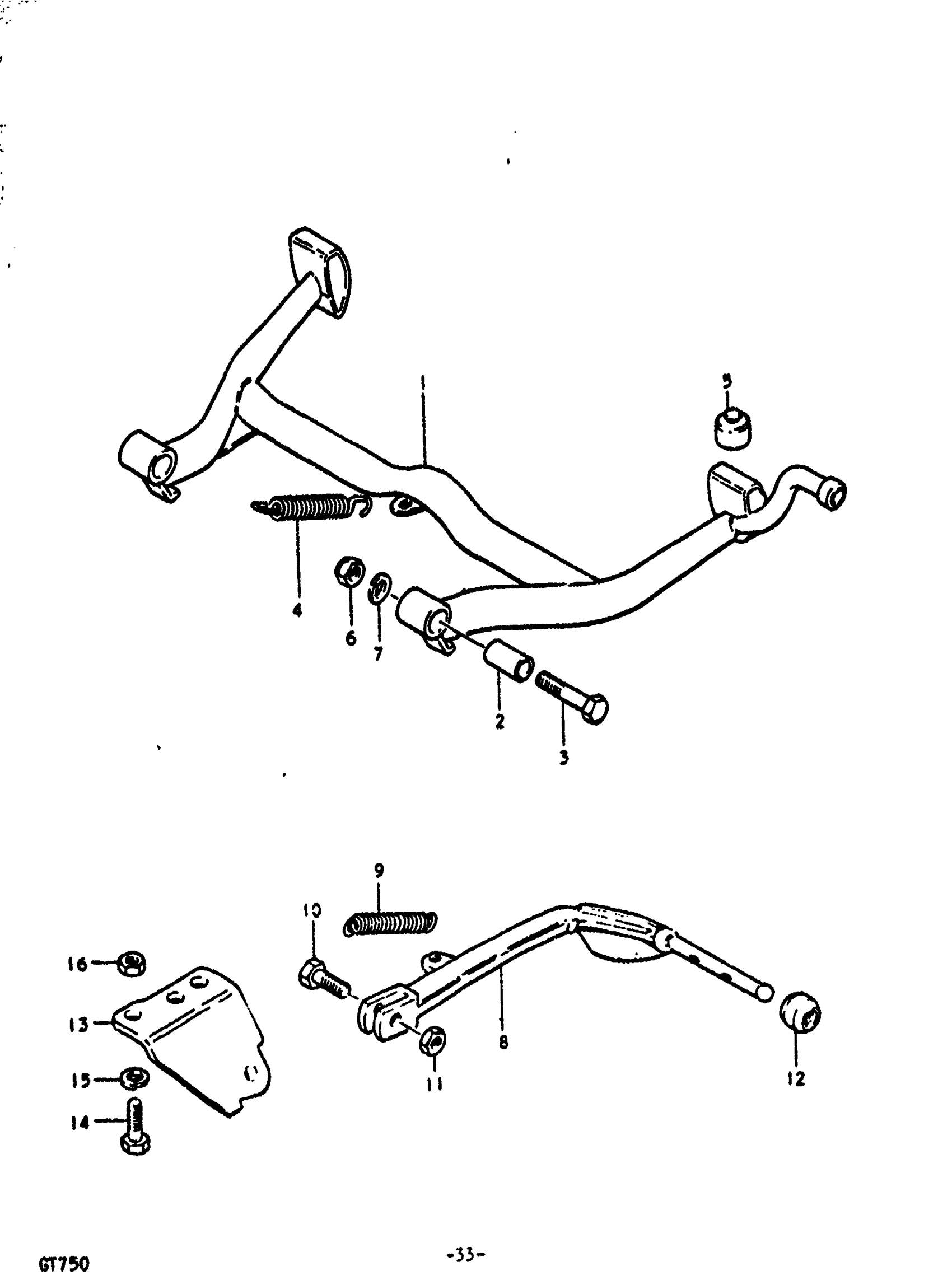

Suzuki GT750 (1972) CENTER STAND Diagram

#

Description
Price

1

STAND, CENTER

42100-31000

Unavailable

2

SPACER | 10.4x16x30

09180-10001

$3.58

3

BOLT | 10x48

09100-10006

Unavailable

4

SPRING This part replaces 09443-16005.

09443-16005-XC0

Unavailable

5

CUSHION

09321-10001

$2.61

6

NUT

09159-10011

$3.23

7

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

8

STAND, PROP

42310-31900

Unavailable

9

SPRING This part replaces 09443-14005.

09443-14017

$3.04

10

BOLT | 10x27 This part replaces 09100-10007.

09100-10287

$3.48

11

NUT This part replaces 08312-32108.

08310-00107

$2.19

12

CUSHION

09320-07001

$2.92

13

BRACKET, PROP STAND

42330-31600

Unavailable

14

BOLT This part replaces 09100-10007.

09100-10287

$3.48

15

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

16

NUT This part replaces 08312-32108.

08310-00107

$2.19
