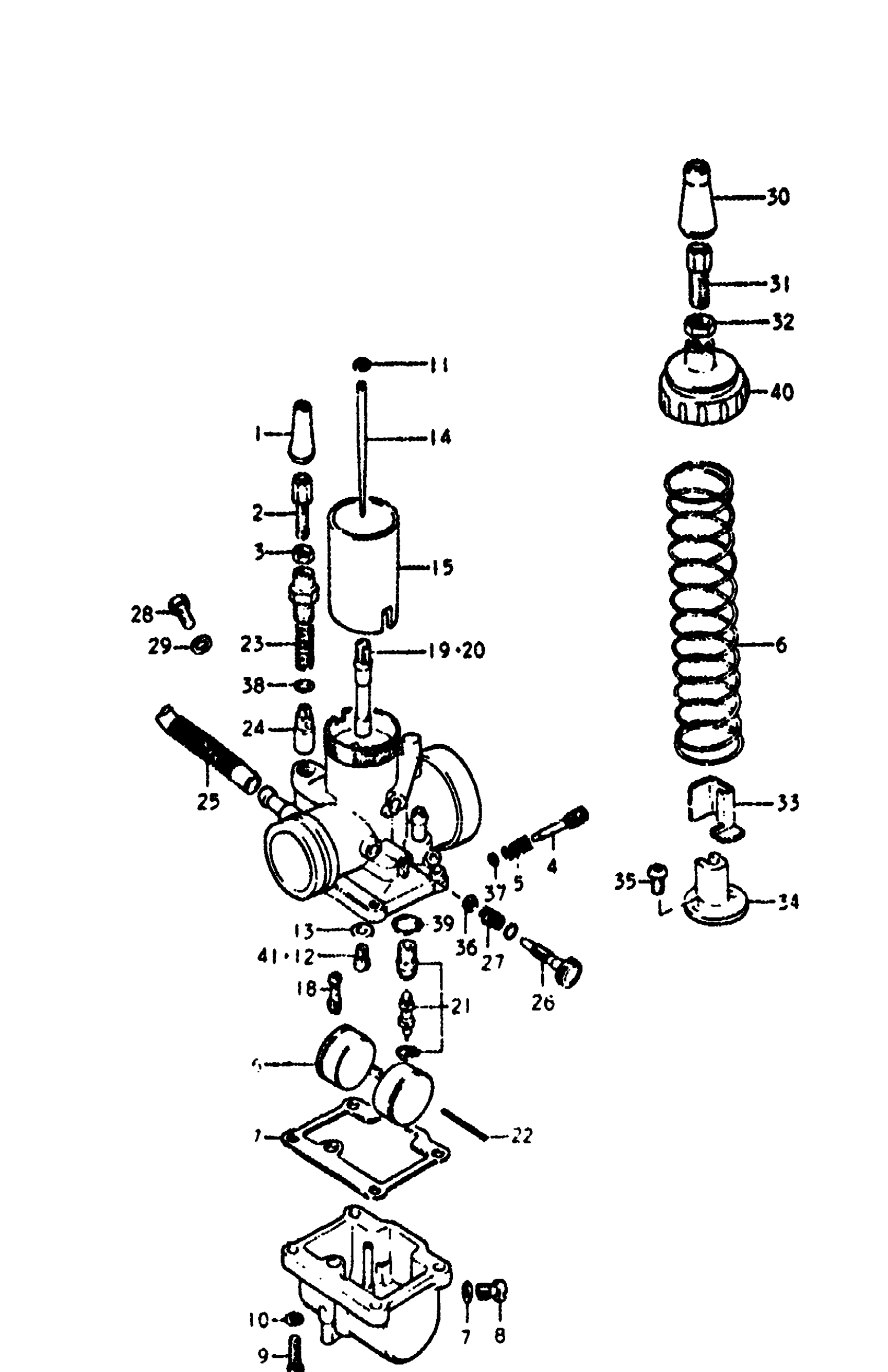

Suzuki GT750 (1972) CARBURETOR (MARKED : 31015) Diagram

#

Description
Price

0

CARBURETOR ASSY, RH

13201-31015

Unavailable

0

CARBURETOR ASSY, MIDDLE

13202-31015

Unavailable

0

CARBURETOR ASSY, LH | Includes Item(s) 1 - 40

13203-31015

Unavailable

1

BOOT | FROM 13681-16600

13681-16601

$8.26

2

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

3

NUT, CABLE ADJUSTER

13661-16600

$4.64

4

SCREW, PILOT AIR

13269-15010

Unavailable

5

SPRING, PILOT AIR SCREW

13268-01010

$5.28

6

SPRING, THROTTLE VALVE

13573-31012

Unavailable

7

GASKET, DRAIN PLUG

13249-05010

$1.98

8

PLUG, DRAIN

13247-05010

$5.11

9

SCREW This part replaces 02111-04168.

02112-0416A

$1.49

10

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

11

CLIP, NEEDLE

13394-10010

$5.45

12

.JET (#102.5) | #102.5 This part replaces 09491-20004.

09491-20012

$11.38

12

JET, MAIN (100) | #100 This part replaces 09491-20003.

09491-20017

$9.69

13

WASHER

13382-03110

$2.80

14

NEEDLE, JET | 5F 16-3

13383-31010

Unavailable

15

VALVE, THROTTLE (LH) | CA:2.5

13561-31013

Unavailable

15

VALVE, THROTTLE (RH & MIDDLE) | CA:2.5

13551-31013

Unavailable

16

FLOAT

13252-18010

Unavailable

17

GASKET, FLOAT CHAMBER | FROM 13251-18010

13251-33110

$9.03

18

JET, PILOT (30) | #30 This part replaces 09492-30003.

09492-30006

$9.55

19

JET, NEEDLE (RH & LH) | P-4

09494-00051

Unavailable

20

JET, NEEDLE (MIDDLE) | P-3

09494-00095

Unavailable

21

VALVE,NEEDLE This part replaces 13370-18010.

13370-41500

Unavailable

22

.PIN, FLOAT

13254-01010

$3.62

23

SPRING, STARTER VALVE

13417-18630

$6.00

24

VALVE, STARTER

13411-01010

$18.43

25

HOSE, BOOST

44390-15050

Unavailable

26

SCREW, THROTTLE STOP

13267-33010

Unavailable

27

SPRING, STOP SCREW This part replaces 13268-31010.

13268-03110

$5.45

28

BOLT, VALVE INSPECTION

13664-18654

$8.98

29

GASKET, INSPECTION BOLT

13663-31010

$2.80

30

BOOT

13681-16601

$8.26

31

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

32

NUT, CABLE ADJUSTER

13661-16600

$4.64

33

COVER, CONNECTOR

13394-31010

Unavailable

34

HOLDER, JET NEEDLE This part replaces 13398-34010.

13581-40200

Unavailable

35

SCREW This part replaces 13399-34010.

02112-3308A

$2.23

36

COVER, THROTTLE STOP SCREW

13291-34010

Unavailable

37

O RING

13295-33010

$4.48

38

O RING

13295-34010

Unavailable

39

GASKET, VALVE SEAT

13392-16600

$1.94

40

CAP, MIXING CHAMBER

13261-15111

Unavailable

41

JET, MAIN (97.5) | #97.5 OPT This part replaces 09491-97001.

09491-97003

$11.38

41

JET, MAIN (105) | #105 OPT This part replaces 09491-21003.

09491-21016

$12.13

41

JET, MAIN (#107.5) | #107.5 OPT This part replaces 09491-21006.

09491-21014

$11.83

41

JET, MAIN (110) | #110 OPT This part replaces 09491-22004.

09491-22016

$10.06

41

JET, MAIN (112.5) | #112.5 OPT This part replaces 09491-22005.

09491-22015

$9.69
