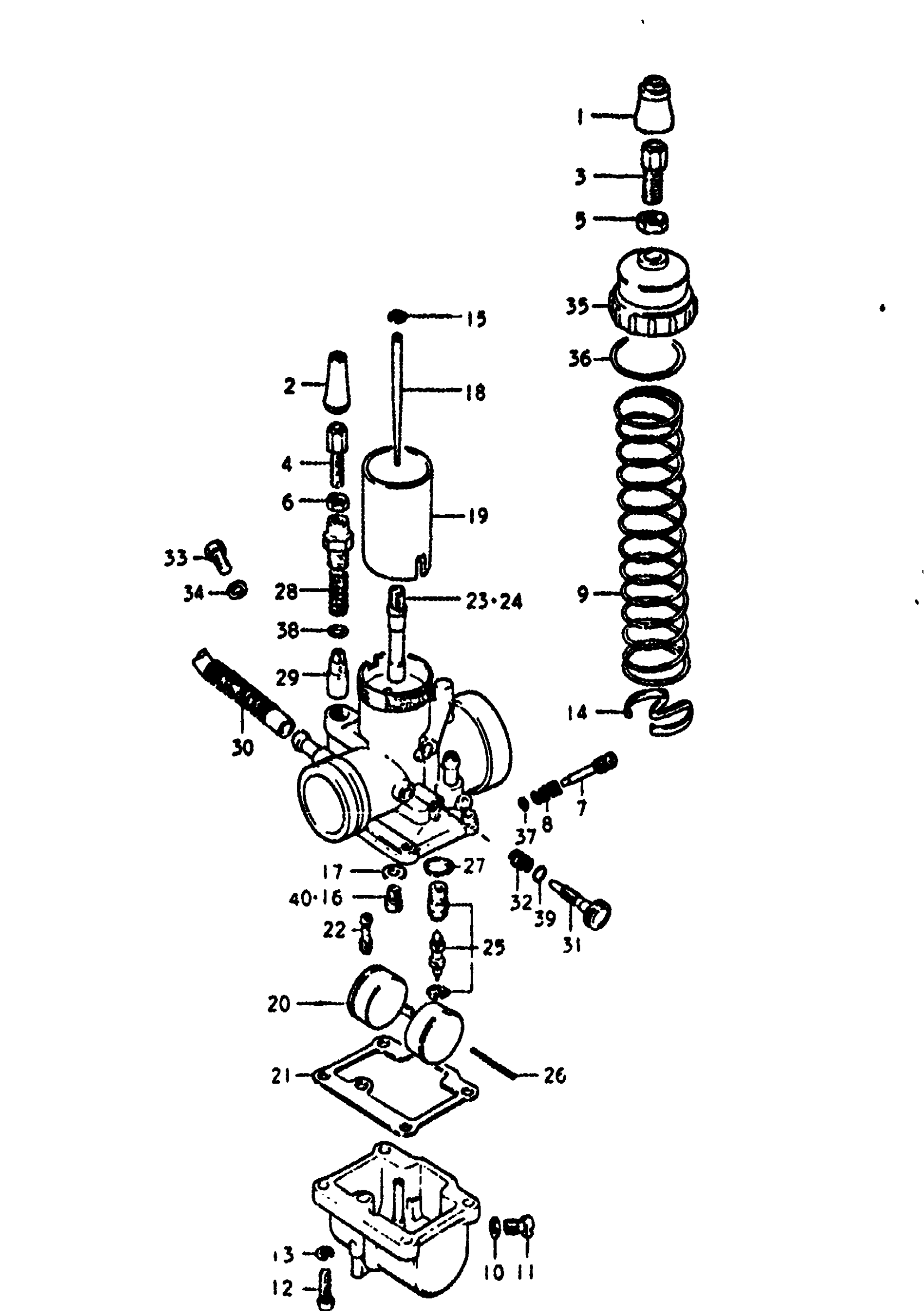

Suzuki GT750 (1972) CARBURETOR (MARKED : 31014) Diagram

#

Description
Price

0

CARBURETOR ASSY, RH | TO 13201-31015 This part replaces 13201-31014.

13201-31015

Unavailable

0

CARBURETOR ASSY, MIDDLE | TO 13202-31015 This part replaces 13202-31014.

13202-31015

Unavailable

0

CARBURETOR ASSY, LH | TO 13203-31015; Includes Item(s) 1 - 39 This part replaces 13203-31014.

13203-31015

Unavailable

1

BOOT

13681-31010

Unavailable

2

BOOT | FROM 13681-16600

13681-16601

$8.26

3

ADJUSTER, CABLE

13577-31010

Unavailable

4

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

5

NUT, CABLE ADJUSTER

13661-31010

Unavailable

6

NUT, CABLE ADJUSTER

13661-16600

$4.64

7

SCREW, PILOT AIR

13269-15010

Unavailable

8

SPRING, PILOT AIR SCREW

13268-01010

$5.28

9

SPRING, THROTTLE VALVE

13573-31010

Unavailable

10

GASKET, DRAIN PLUG

13249-05010

$1.98

11

PLUG, DRAIN

13247-05010

$5.11

12

SCREW This part replaces 02111-04168.

02112-0416A

$1.49

13

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

14

SEAT, THROTTLE VALVE

13581-15010

Unavailable

15

CLIP, NEEDLE

13394-10010

$5.45

16

.JET (#102.5) | #102.5 This part replaces 09491-20004.

09491-20012

$11.38

16

JET, MAIN (100) | #100 This part replaces 09491-20003.

09491-20017

$9.69

17

WASHER

13382-03110

$2.80

18

NEEDLE, JET | 5F 16-3

13383-31010

Unavailable

19

VALVE, THROTTLE (LH) | CA:2.5

13561-31012

Unavailable

19

VALVE, THROTTLE (RH & MIDDLE) | CA:2.5

13551-31012

Unavailable

20

FLOAT

13252-18010

Unavailable

21

GASKET, FLOAT CHAMBER | FROM 13251-18010

13251-33110

$9.03

22

JET, PILOT (30) | #30 This part replaces 09492-30003.

09492-30006

$9.55

23

JET, NEEDLE (RH & LH) | P-4

09494-00051

Unavailable

24

JET, NEEDLE (MIDDLE) | P-3

09494-00095

Unavailable

25

VALVE,NEEDLE This part replaces 13370-18010.

13370-41500

Unavailable

26

.PIN, FLOAT

13254-01010

$3.62

27

GASKET, VALVE SEAT This part replaces 13392-15010.

13392-16600

$1.94

28

SPRING, STARTER VALVE

13417-18630

$6.00

29

VALVE, STARTER

13411-01010

$18.43

30

HOSE BOOST

44390-15050

Unavailable

31

SCREW, THROTTLE STOP

13267-31010

Unavailable

32

SPRING, STOP SCREW This part replaces 13268-31010.

13268-03110

$5.45

33

BOLT, VALVE INSPECTION

13664-18654

$8.98

34

GASKET, INSPECTION BOLT

13663-31010

$2.80

35

CAP, MIXING CHAMBER

13261-31011

Unavailable

36

O RING, MIXING CHAMBER TOP | F.NO.39101~

13295-31010

Unavailable

37

O RING, PILOT AIR SCREW

13295-33010

$4.48

38

O RING, STARTER VALVE

13295-34010

Unavailable

39

O RING This part replaces 13294-30010.

13278-02340

$1.91

40

JET, MAIN (97.5) | #97.5 OPT This part replaces 09491-97001.

09491-97003

$11.38

40

JET, MAIN (105) | #105 OPT This part replaces 09491-21003.

09491-21016

$12.13

40

JET, MAIN (#107.5) | #107.5 OPT This part replaces 09491-21006.

09491-21014

$11.83

40

JET, MAIN (110) | #110 OPT This part replaces 09491-22004.

09491-22016

$10.06

40

JET, MAIN (112.5) | #112.5 OPT This part replaces 09491-22005.

09491-22015

$9.69
