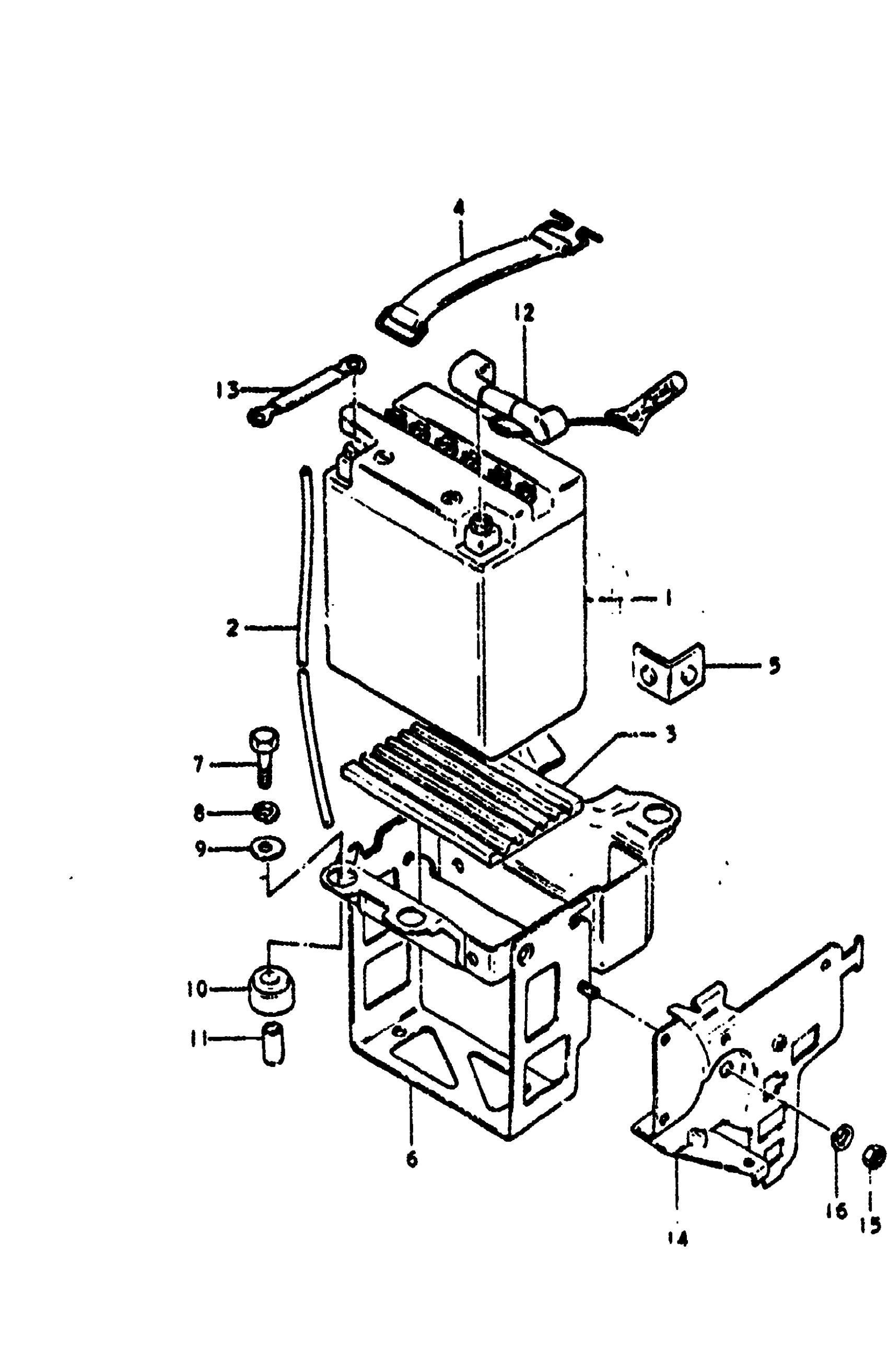

Suzuki GT750 (1972) BATTERY Diagram

#

Description
Price

1

BATTERY (12V,14AH) | 12V, 14AH This part replaces 33610-31010.

33610-49210

Unavailable

2

HOSE,BATTERY EX | FROM 33680-31001 This part replaces 33680-31003.

33680-16A11

$6.78

3

PROIECTOR, BATTERY (1)

33651-31000

$18.02

4

BAND

09462-00050

Unavailable

5

PROTECTOR (80X80X2) | FROM 33652-33000 This part replaces 33652-34000.

33652-07D00

$5.64

6

HOLDER, BATTERY

41540-31000

Unavailable

7

BOLT, REAR This part replaces 01112-06308.

01500-06307

$2.48

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

10

CUSHION

09320-08011

$3.54

11

SPACER (6.1X8X15.5) | 6.1x8x15.5 This part replaces 09180-06040.

09180-06251

$2.44

12

LEAD WIRE, BATTERY (+)

36861-31001

Unavailable

13

WIRE, ENG GROUN This part replaces 36862-31000.

33850-35400

Unavailable

14

PLATE, ELECTORIC HOLDER

37900-31000

Unavailable

15

.NUT This part replaces 08311-11068.

08310-00067

$2.13

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
