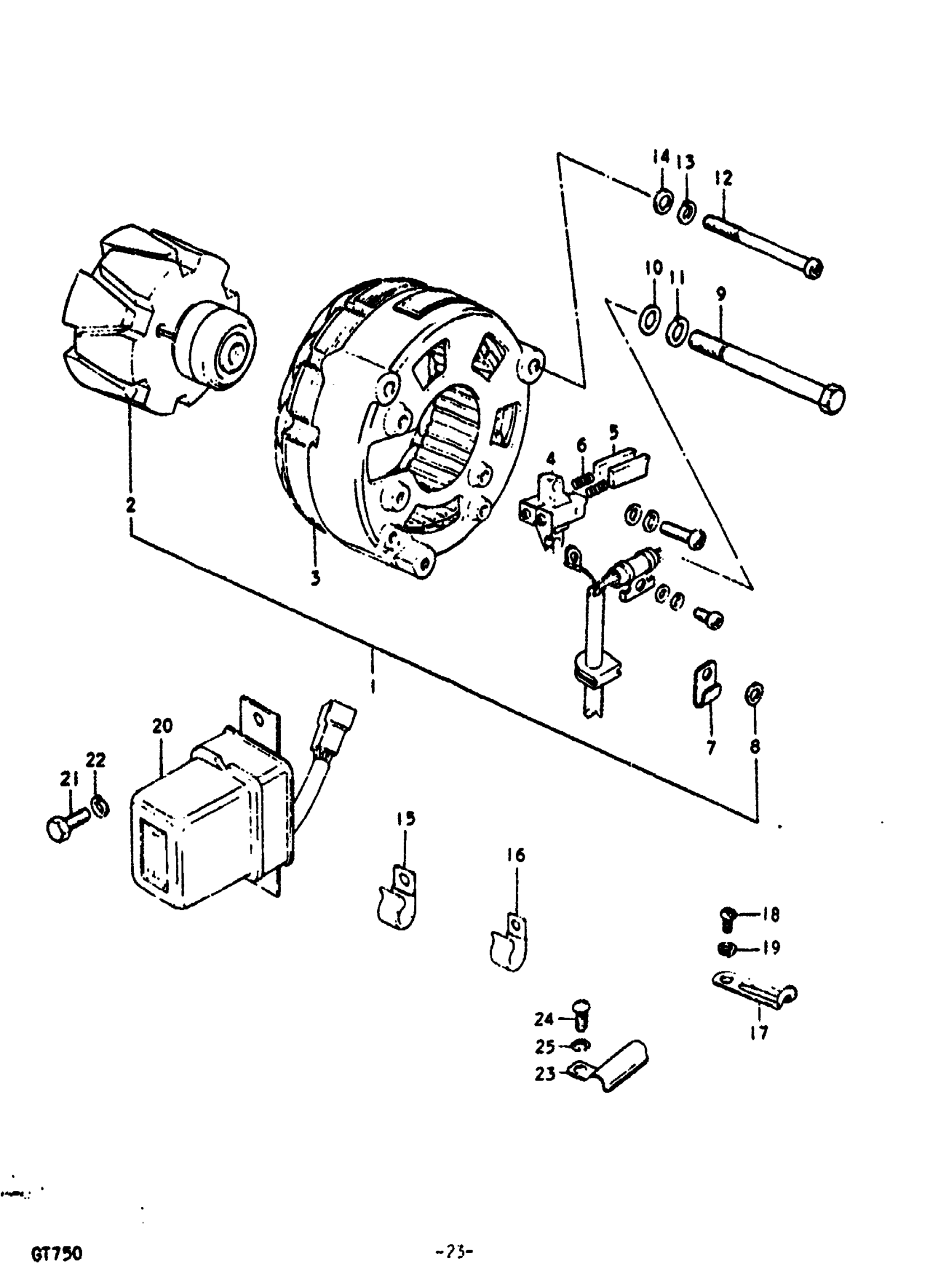

Suzuki GT750 (1972) A.C.GENERATOR Diagram

#

Description
Price

1

GENERATOR ASSY | TO 31400-31011; Includes Item(s) 2 - 8

31400-31010

Unavailable

2

ROTOR ASSY | FROM 31402-31011

31402-31012

Unavailable

3

STATOR ASSY | TO 31401-31013 This part replaces 31401-31012.

31401-31013

Unavailable

4

HOLDER, BRUSH | TO 31656-31012 This part replaces 31656-31011.

31656-31012

Unavailable

5

BRUSH

31631-31011

Unavailable

6

SPRING This part replaces 31635-55011.

31635-55012

Unavailable

7

PLATE, TERMINAL

31667-31010

Unavailable

8

INSULATOR, HOLDER

31668-31010

Unavailable

9

BOLT

09100-08092

Unavailable

10

WASHER This part replaces 09160-08030.

09160-08128

$2.80

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

SCREW This part replaces 02111-05658.

02112-0565B

$2.98

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

14

WASHER This part replaces 08322-21058.

08322-01057

$2.13

15

CLAMP | FROM 09403-00048 This part replaces 09403-00059.

09404-08420

$3.16

16

CLAMP | FROM 09403-00090 This part replaces 09403-00069.

09404-06037

Unavailable

17

REGURATOR ASSY, VOLTAGE

32500-31010

Unavailable

18

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

20

CLAMP

33280-31000

Unavailable

21

SCREW This part replaces 02112-06108.

02112-06107

$1.49

22

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
