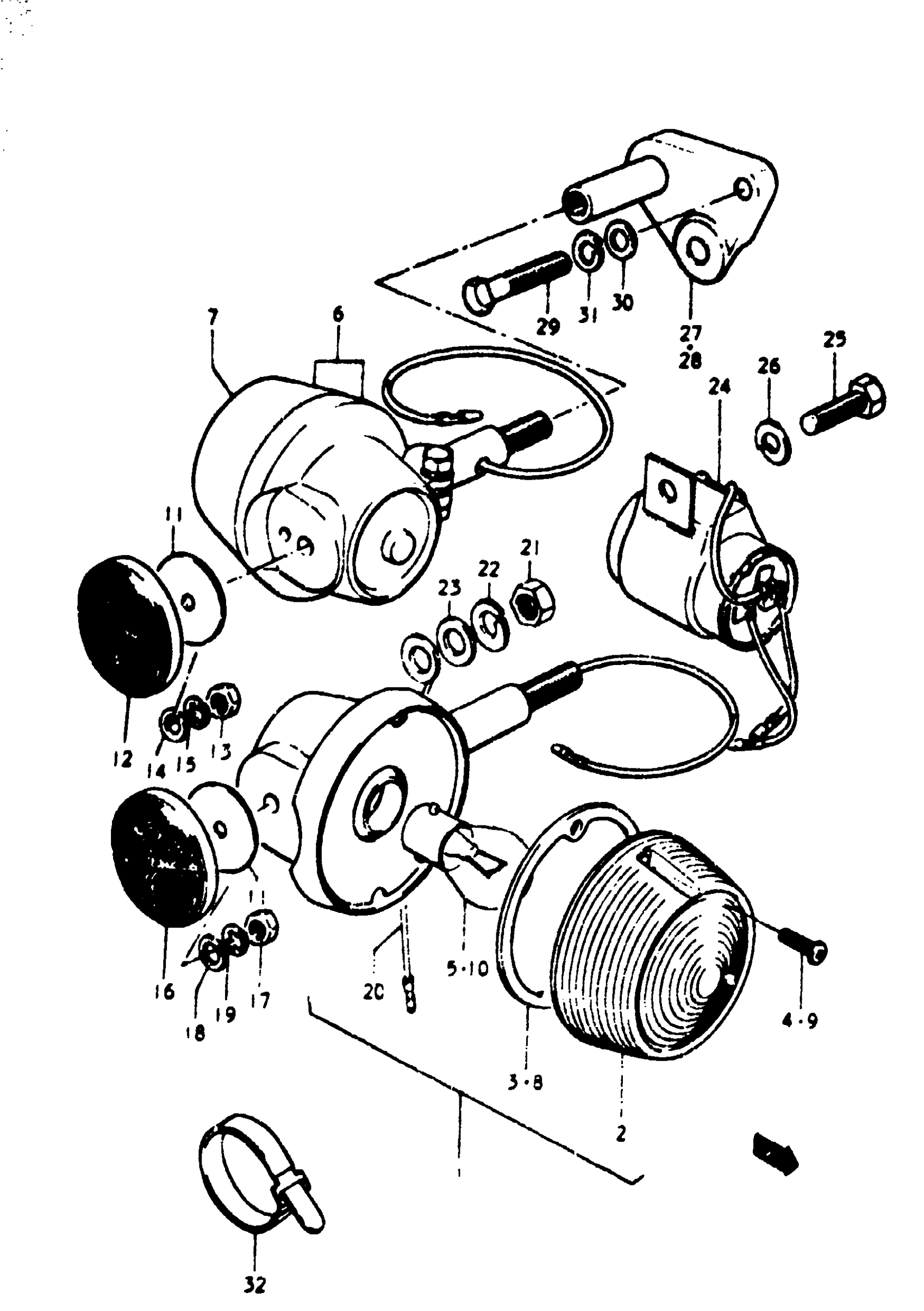

Suzuki GT550 (1977) TURN SIGNAL LAMP (GT550K Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL | K,L,M,A; FROM 35601-31660-999; Includes Item(s) 2 - 5

35601-31660

Unavailable

2

LENS | K,L,M,A; AMBER

35612-31010

Unavailable

3

GASKET | K,L,M,A

35613-03610

$13.34

4

SCREW | K,L,M,A This part replaces 02111-03168.

02112-0316B

$2.35

5

BULB | K,L,M,A; 12V, 32CP

09471-12006

$3.98

6

NO DESCRIPTION AVAILABLE | K,L,M,A; FROM 35600-31830; Includes Item(s) 7 - 10 This part replaces 35603-31010.

35603-31010-999

Unavailable

7

LENS, REAR | K,L; RED

35652-31610

Unavailable

7

LENS | M; AMBER

35601-31010

Unavailable

7

LENS | A; AMBER

35612-31010

Unavailable

8

GASKET | K,L,M,A

35613-03610

$13.34

9

SCREW | K,L,M,A This part replaces 02111-03168.

02112-0316B

$2.35

10

BULB | K,L,M,A; 12V, 32CP

09471-12006

$3.98

11

CUSHION | K,L,M

35656-31010

Unavailable

12

REFLEX REFLECTOR, REAR | K,L,M; TO 35970-15010

35970-31610

Unavailable

12

REFLEX REFLECTOR, REAR | A

35970-15010

Unavailable

13

NUT | K,L,M,A This part replaces 08311-11058.

08310-00057

$1.84

14

WASHER (5.5X18X1) | K,L,M,A; 5.5x18x1 This part replaces 09160-05003.

09160-05045

$1.93

15

LOCK WASHER | K,L,M This part replaces 08321-21058.

08321-0105A

$1.84

16

REFLEX REFLECTOR FRONT | K,L,M; TO 35950-15010 This part replaces 35950-31010.

35950-49080

$17.24

16

REFLEX REFLECTOR FRONT | A This part replaces 35950-15010.

35950-49080

$17.24

17

NUT | K,L,M,A This part replaces 08311-11058.

08310-00057

$1.84

18

WASHER (5.5X18X1) | K,L,M,A; 5.5x18x1 This part replaces 09160-05003.

09160-05045

$1.93

19

LOCK WASHER | K,L,M This part replaces 08321-21058.

08321-0105A

$1.84

20

WARE, GROUND LEAD | K

36660-33000

$4.52

21

NUT | K,L,M,A This part replaces 08311-11108.

08310-00107

$2.19

22

LOCK WASHER | K,L,M,A This part replaces 08321-21108.

08321-01107

$1.84

23

WASHER | K,L,M,A This part replaces 08322-21108.

08322-01107

$2.15

24

TURN SIGNAL REL | K,L,M,A; TO 38610-32210 This part replaces 38610-15611.

38610-322V0

Unavailable

24

TURN SIGNAL REL | A This part replaces 38610-32210.

38610-322V0

Unavailable

25

BOLT | M,A This part replaces 01112-06128.

01500-06127

$1.97

26

LOCK WASHER | M This part replaces 08321-21068.

08321-01067

$2.13

27

BRACKET, TURN SIGNAL LAMP RH | K,L,M,A

41640-33001

Unavailable

28

BRACKET, TURN SIGNAL LAMP LH | K,L,M,A

41650-33001

Unavailable

29

BOLT | K,L,M,A This part replaces 01111-10207.

01500-1020B

$3.16

30

WASHER | K,L,M,A This part replaces 08322-21108.

08322-01107

$2.15

31

LOCK WASHER | K,L,M,A This part replaces 08321-21108.

08321-01107

$1.84

32

CLAMP | KL,M; FROM 09407-09302

09407-09401

Unavailable

32

CLAMP | K,L,M,A; L:110 This part replaces 09407-11302.

09407-18302

$2.28

32

CLAMP | L,M; TO 09407-18301 This part replaces 09407-14301.

09407-18302

$2.28

32

CLAMP | A; TO 09407-11302 This part replaces 09407-09301.

09407-09303

$1.93
