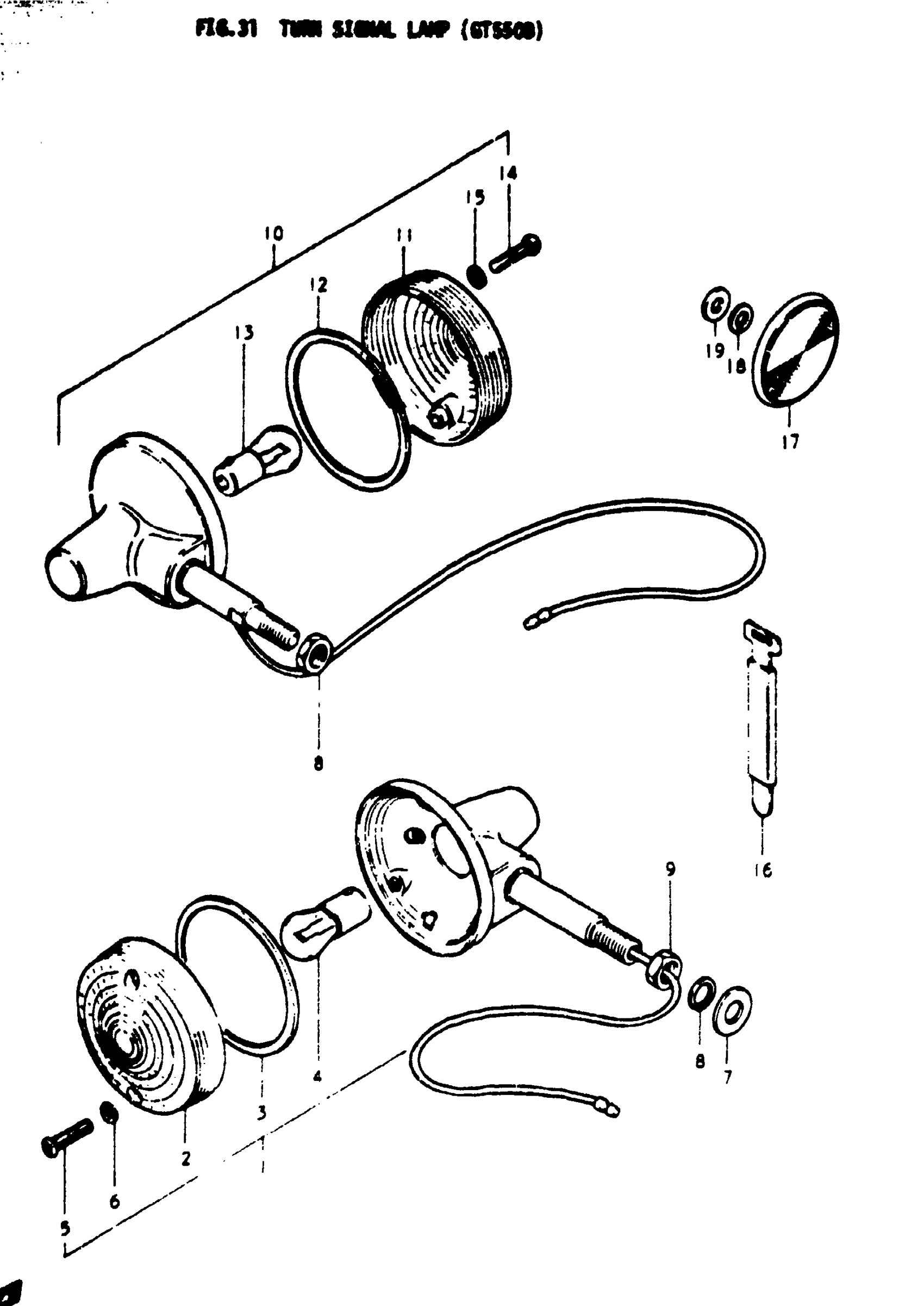

Suzuki GT550 (1977) TURN SIGNAL LAMP (GT5@@@) Diagram

#

Description
Price

1

LAMP ASSY,FR TR | Includes Item(s) 2 - 6 This part replaces 35601-44010.

35601-39370-999

Unavailable

2

LENS

35612-28620

$8.98

3

GASKET

35613-28620

$4.55

4

BULB | 12V, 25W

09471-12006

$3.98

5

SCREW

02111-04258

Unavailable

6

GASKET

35627-43010

$2.28

7

WASHER This part replaces 08322-21108.

08322-01107

$2.15

8

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

9

NUT This part replaces 08311-11108.

08310-00107

$2.19

10

LAMP RR TURN SI | Includes Item(s) 11 - 15 This part replaces 35603-18411.

35603-25610-999

Unavailable

11

LENS

35612-28620

$8.98

12

GASKET

35613-28620

$4.55

13

BULB | 12V, 23W

09471-12006

$3.98

14

SCREW

02111-04258

Unavailable

15

GASKET

35627-43010

$2.28

16

CLAMP | IRE This part replaces 09407-11302.

09407-18302

$2.28

17

REFLEX REFLECTOR, FRONT

35950-45010

$17.09

18

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

19

WASHER This part replaces 08322-21058.

08322-01057

$2.13
