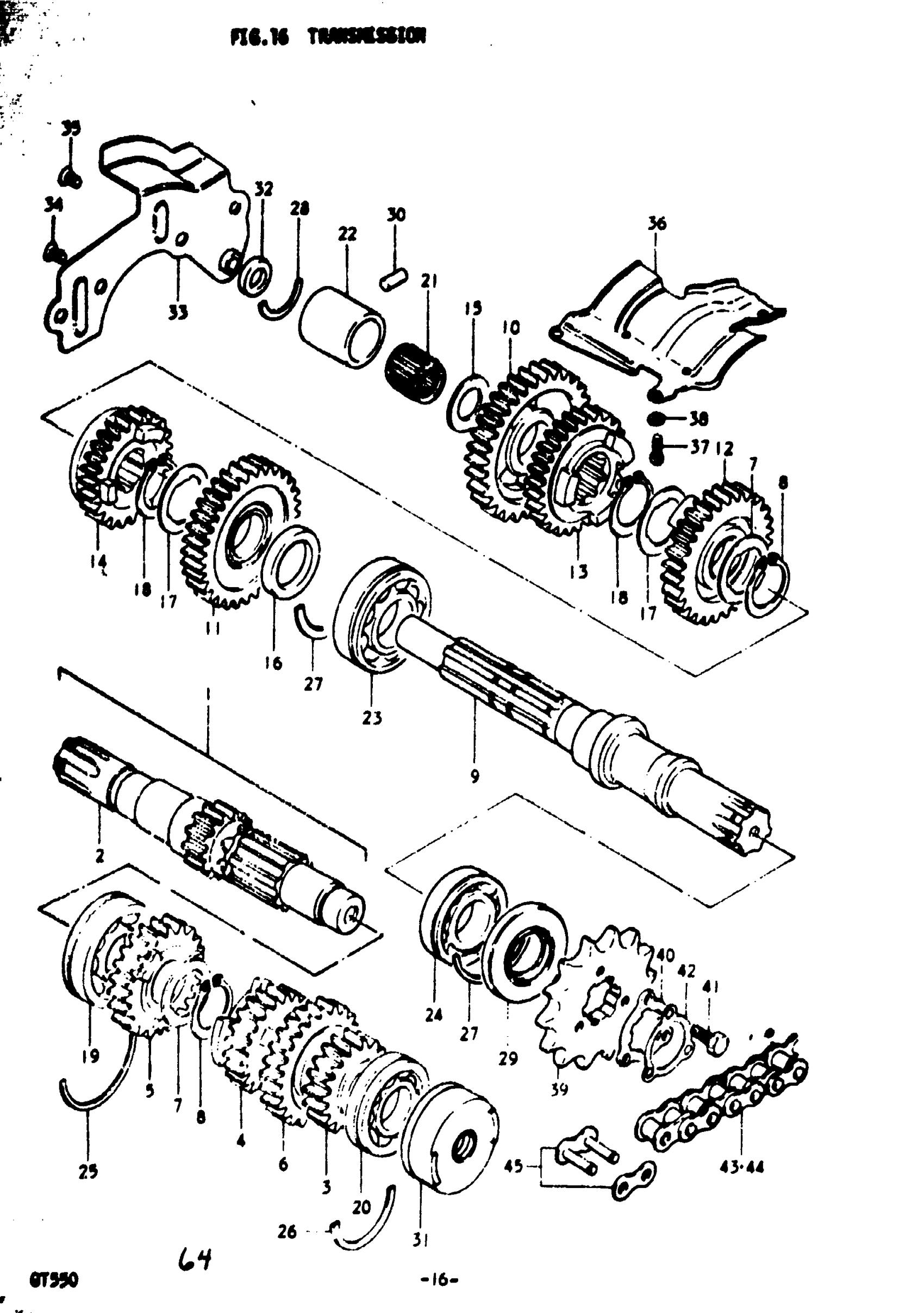

Suzuki GT550 (1977) TRANSMISSION Diagram

#

Description
Price

1

COUNTER SHAFT ASSY | K,L,M,A; FROM 24120-34000 TO 24120-34002 SEE NOTE

24120-34001

Unavailable

1

COUNTER SHAFT ASSY | A; TO 24120-34003

24120-34002

Unavailable

1

COUNTER SHAFT ASSY | B; Includes Item(s) 2 - 8

24120-34003

Unavailable

2

COUNTER SHAFT | K,L,M,A,B; NT : 13

24121-34000

Unavailable

3

GEAR, 2ND DRIVE (NT:18) | K,L,M,A; NT : 19 This part replaces 24221-31000.

24221-49001

Unavailable

3

GEAR, 2ND DRIVE (NT:18) | A,B; NT : 18 This part replaces 24221-37000.

24221-49001

Unavailable

4

GEAR, 3RD DRIVE | K,L,M,A; NT : 22

24231-31000

Unavailable

4

GEAR, 3RD DRIVE | A,B; NT : 21 This part replaces 24231-37000.

24231-49000

Unavailable

5

GEAR, 4TH DRIVE | K,L,M,A; NT : 24 This part replaces 24240-31000.

24240-49000

Unavailable

5

GEAR, 4TH DRIVE | B; NT : 24 This part replaces 24240-31001.

24240-49000

Unavailable

6

GEAR, 5TH DRIVE | K,L,M; NT : 26 TO 24250-31001 This part replaces 24250-31000.

24250-31001

Unavailable

6

GEAR, 5TH DRIVE | A,B; NT : 26

24250-31001

Unavailable

7

WASHER | K,L,M,A,B

09167-28001

$4.60

8

CIRCLIP | K,L,M,A,B; FROM 09380-28002 This part replaces 08331-11289.

08331-31289

$2.19

9

DRIVE SHAFT | K,L,M,A,B

24131-34000

Unavailable

10

GEAR SET, 1ST DRIVEN | K,L,M,A,B; NT : 37 YELLOW PAINTED This part replaces 24310-31940.

24310-31821

Unavailable

11

GEAR, 2ND DRIVEN | K,L,M,A; NT : 33 BLUE PAINTED

24320-31930

Unavailable

11

GEAR SET, 2ND DRIVEN | A,B; NT : 32 This part replaces 24320-37000.

24300-37810

Unavailable

12

GEAR, 3RD DRIVEN | K,L,M,A; NT : 30 This part replaces 24330-31000.

24330-37000

Unavailable

12

GEAR, 3RD DRIVEN | A,B; NT : 29

24330-37000

Unavailable

13

GEAR, 4TH DRIVEN | K,L,M,A,B; NT : 27

24341-31000

Unavailable

14

GEAR, 5TH DRIVEN | K,L,M; NT : 24 TO 24351-31001 This part replaces 24351-31000.

24351-31001

Unavailable

14

GEAR, 5TH DRIVEN | A,B; NT : 24

24351-31001

Unavailable

15

WASHER | K,L,M,A,B; 20x30.5x1

09160-20004

Unavailable

16

WASHER | K,L,M,A,B; 28x38x4

09160-28006

Unavailable

17

WASHER | K,L,A,BM

09167-28001

$4.60

18

CIRCLIP | K,L; TO 08331-11289 This part replaces 09380-28002.

08331-31289

$2.19

18

CIRCLIP | M,A,B This part replaces 08331-11289.

08331-31289

$2.19

19

BEARING | K,L,M,A,B

09262-30022

Unavailable

20

B1 20X47X14 BEA | K,L,M,A,B This part replaces 08163-62040.

09262-20047

$34.92

21

BEARING | K,L,M,A,B

09263-20005

Unavailable

22

BUSHING | K; TO 09319-26001 This part replaces 09319-26002.

09319-26001

Unavailable

22

BUSHING | L,M,A,B

09319-26001

Unavailable

23

NO DESCRIPTION AVAILABLE | K,L,M,A,B This part replaces 08163-62063.

08163-62060

Unavailable

24

BEARING | K,L,M,A,B

08163-63050

Unavailable

25

C RING | K,L,M,A,B

09390-72004

Unavailable

26

C RING | K,L,M,A,B

09390-47003

Unavailable

27

C RING | K,L,M,A,B This part replaces 09390-62005.

09390-62009

$4.68

28

C RING | K,L,M,A,B

09390-32001

Unavailable

29

OIL SEAL | K,L,M,A,B

09283-25050

Unavailable

30

PIN | K,L,M,A,B This part replaces 06211-07122.

04221-07129

$1.86

31

PLUG, OIL RESERVOIR | K,L,M,A,B

24973-34000

Unavailable

32

OIL, SEAL | K,L,M,A,B

09285-08003

Unavailable

33

PLATE, OIL RESERVOIR | K,L,M,A,B

24870-34000

Unavailable

34

SCREW | K,L,M,A,B This part replaces 02112-06128.

02112-06127

$1.84

35

SCREW | K,L,M,A,B This part replaces 02122-06128.

02122-06127

$1.84

36

PLATE, OIL GUIDE | K,L; TO 24881-34001

24881-34000

Unavailable

36

PLATE, OIL GUIDE | M,A,B

24881-34001

Unavailable

37

SCREW | K,L,M,A,B This part replaces 02112-05168.

02112-05167

$1.97

38

LOCK WASHER | K,L,M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

39

SPROCKET, ENGINE | K,L,M,A,B; NT : 16K,L,M,A,B; NT : 15, OPT

27511-33600

Unavailable

40

PLATE, ENGINE SPROCKET | K,L,M,A,B

27512-33000

Unavailable

41

BOLT | K,L,M,A,B This part replaces 01112-06128.

01500-06127

$1.97

42

WASHER | K,L,M,A,B

09167-25008

Unavailable

43

CHAIN ASSY, DRIVE (#50HDS x 10 | K; TO 27600-31013K; TO 27600-31013

27600-34010

Unavailable

43

CHAIN ASSY, DRIVE (#50HDS x 10 | L; TO 27600-31015L; TO 27600-31015

27600-31013

Unavailable

43

CHAIN, DRIVE | M,A,BM,A,B This part replaces 27600-31015.

27600-15911

Unavailable

44

CHAIN ASSY, DRIVE | K,L; 41, EXTENTION CHAIN OPT

27600-31700

Unavailable

45

JOINT, CHAIN (DID 50HDS) | K,L; OPT

27620-31012

Unavailable
