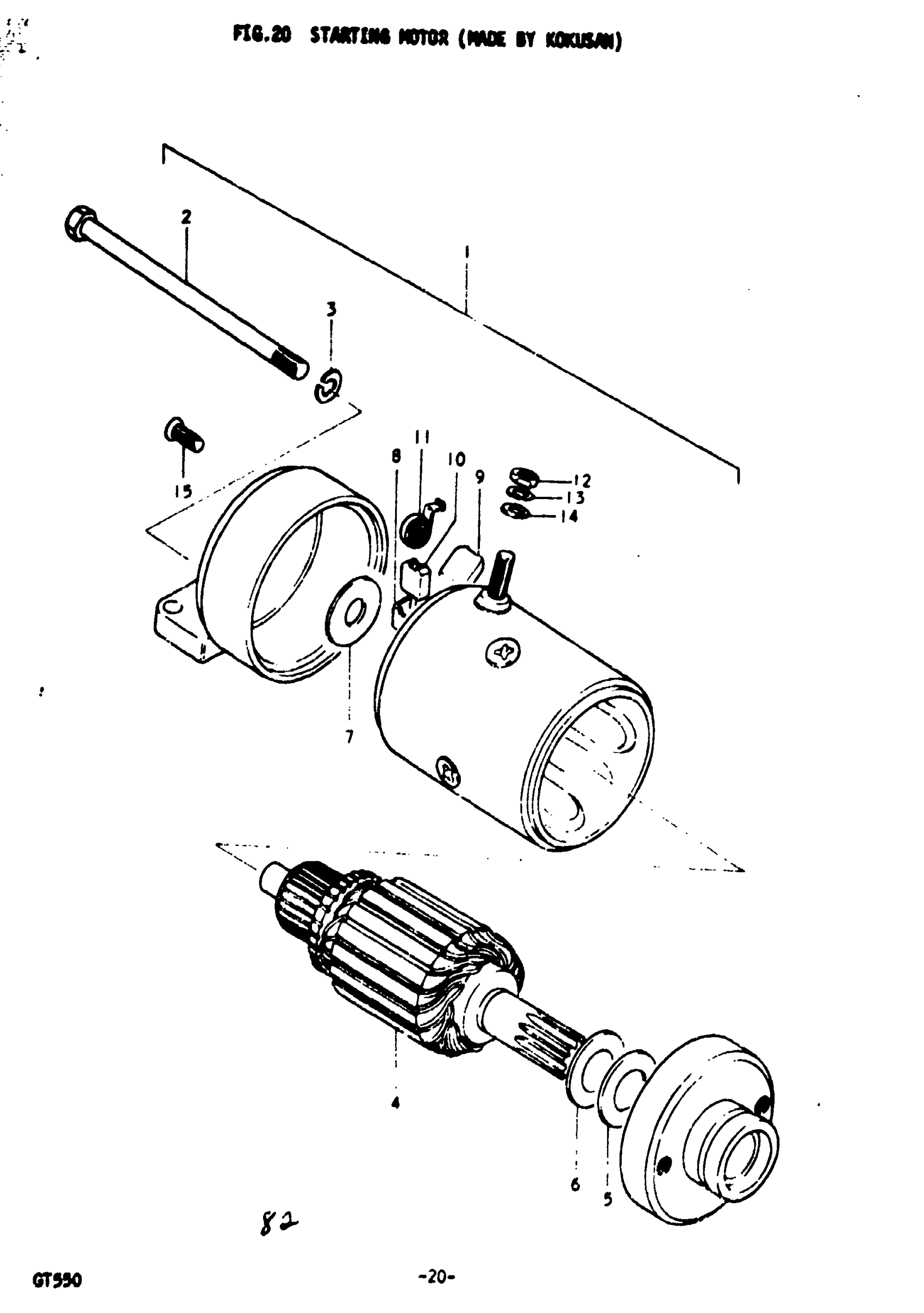

Suzuki GT550 (1977) STARTING MOTOR (KOKUSAN) Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | K,L,M,A,B; Includes Item(s) 2 - 15

31100-34020

Unavailable

2

BOLT, HOUSING | K,L,M,A,B

31281-34020

Unavailable

3

LOCK WASHER | K,L,M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

4

ARMATURE | K,L,M,A,B

31311-34020

Unavailable

5

SHIM (1) | K,L,M,A,B; 30x15.5x1

31361-34020

Unavailable

6

SHIM (2) | K,L,M; 30x15.5x0.2A,B; 30x15.5x0.2

31362-34020

Unavailable

7

SHIM (3) | K,L,M,A,B; 25x9.7x1

31363-34020

Unavailable

8

HOLDER ASSY, BRUSH | K,L,M,A,B

31173-34020

Unavailable

9

BRUSH (+) | K,L,M,A,B

31131-34020

Unavailable

10

BRUSH (-) | K,L,M,A,B

31132-34020

Unavailable

11

SPRING, BRUSH | K,L,MA,B

31135-34020

Unavailable

12

.NUT | K,L,M,A,B This part replaces 08311-31068.

08310-00067

$2.13

13

LOCK WASHER | K,L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

14

WASHER | K,L,M,A,B This part replaces 08322-21068.

08322-01067

$2.13

15

SCREW | K,L,M,A,B This part replaces 02111-04127.

02112-0412A

$1.49
