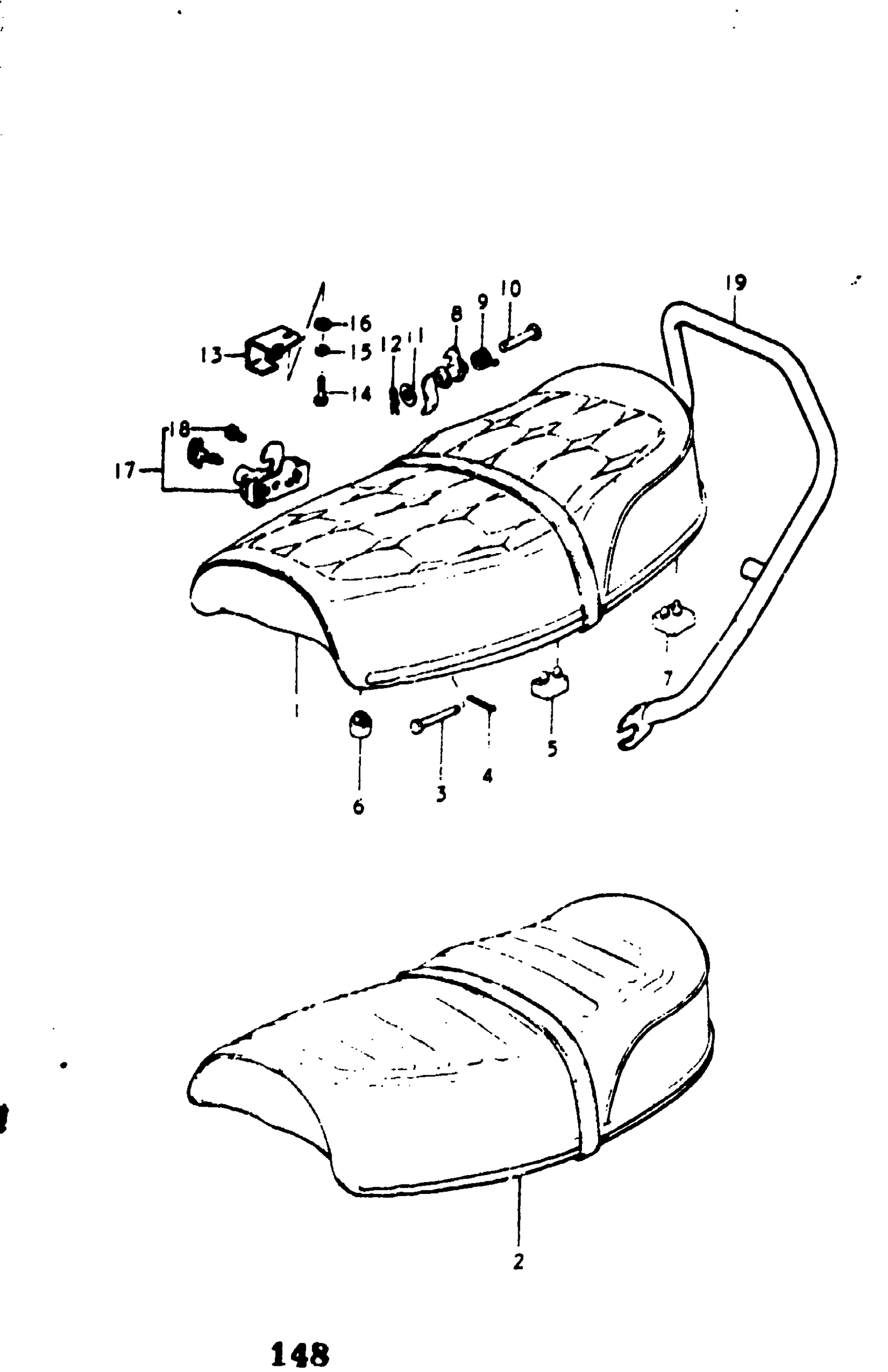

Suzuki GT550 (1977) SEAT Diagram

#

Description
Price

1

SEAT ASSY | K This part replaces 45100-33000-403.

45100-33X00-865

Unavailable

2

SEAT ASSY | L; TO 45100-33101-403

45100-33100-403

Unavailable

2

SEAT ASSY | M,A

45100-33101-403

Unavailable

2

SEAT ASSY | B This part replaces 45100-33101-865.

45100-33X00-865

Unavailable

2

SEAT ASSY | L,M,A,B; FROM OPT 45100-33700-403 This part replaces 45100-33701-403.

45100-33X00-865

Unavailable

3

PIN

09200-06018

$2.06

4

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

5

CUSHION

09321-08006

$2.90

6

CUSHION

09321-10002

$2.22

7

CUSHION

09321-09003

Unavailable

8

CLAMP, SEAT | K; TO 45210-33002

45210-33001

Unavailable

8

CLAMP, SEAT | K

45210-33002

Unavailable

9

SPRING | K

09448-15001

Unavailable

10

PIN | K

09200-06018

$2.06

11

WASHER | K This part replaces 08322-21068.

08322-01067

$2.13

12

CLIP | K

09385-06001

$3.10

13

PLATE, CLAMP GUIDE | L,M,A,B

45213-36200

Unavailable

14

BOLT | L,M,A,B This part replaces 01112-06128.

01500-06127

$1.97

15

LOCK WASHER | L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

16

WASHER | L,M,A,B This part replaces 08322-21068.

08322-01067

$2.13

17

LOCK ASSY, SEAT | L,M,A; TO 95700-36811 This part replaces 95700-36810.

95700-49811

Unavailable

17

LOCK ASSY, SEAT | B; Includes Item(s) 18 This part replaces 95700-36811.

95700-49811

Unavailable

18

BOLT | B

09108-05001

Unavailable

19

DAMPER, REAR | L

94710-34001

Unavailable
