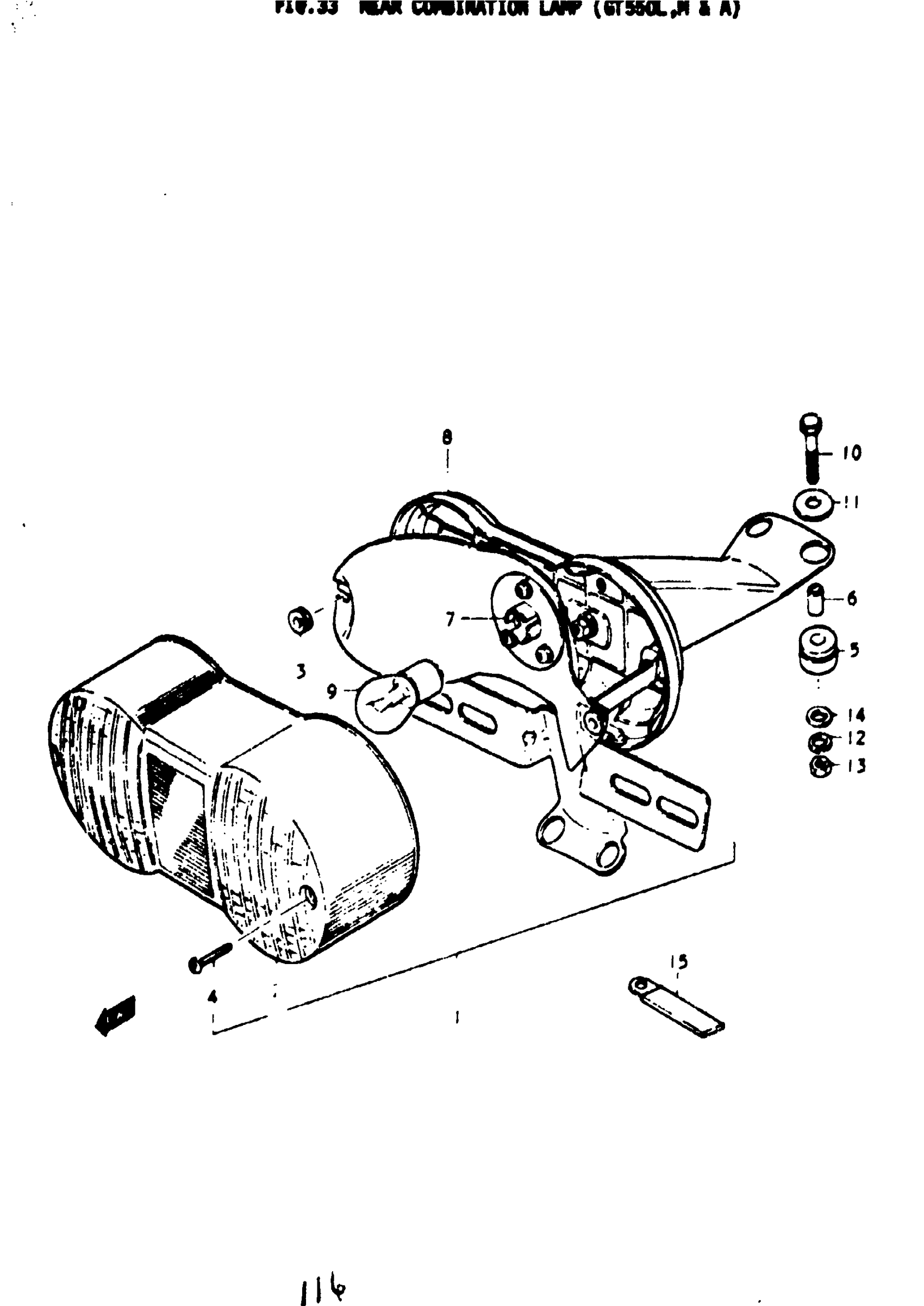

Suzuki GT550 (1977) REAR COMBINATION LAMP (GT550L Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | L,M,A; FROM 35710-33110; Includes Item(s) 2 - 9

35710-33111

Unavailable

2

TAIL LAMP LENS | L,M,A This part replaces 35712-27660.

35712-27671

Unavailable

3

CUSHION | L,M,A

35765-27691

Unavailable

4

SCREW | L,M,A This part replaces 02111-04208.

02112-0420A

$1.49

5

CUSHION | L,M,A

35765-15010

Unavailable

6

SPACER | L,M,A This part replaces 35766-15010.

35766-37110

$5.28

7

SOCKET / CORD | L; INNER PART OF 35710-33110

35718-33110

Unavailable

8

HOUSING | L,M,A

35715-27691

Unavailable

9

BULB | L,M,A; 12V, 23/8W

09471-12035

$4.49

10

BOLT | L,M This part replaces 01112-06208.

01500-06207

$2.28

10

BOLT, CANISTER | A This part replaces 01112-06168.

01500-06167

$1.97

11

WASHER (6.5X20X1.6) | L,M; 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

11

WASHER (6.5X20X1.2) | A This part replaces 09160-06027.

09160-06077

$1.91

12

LOCK WASHER | L,M This part replaces 08321-21068.

08321-01067

$2.13

13

.NUT | L,M,A This part replaces 08311-11068.

08310-00067

$2.13

14

WASHER | L,M,A This part replaces 08322-21068.

08322-01067

$2.13

15

CLAMP | L,M,A; L:60 This part replaces 09403-00069.

09404-06037

Unavailable
