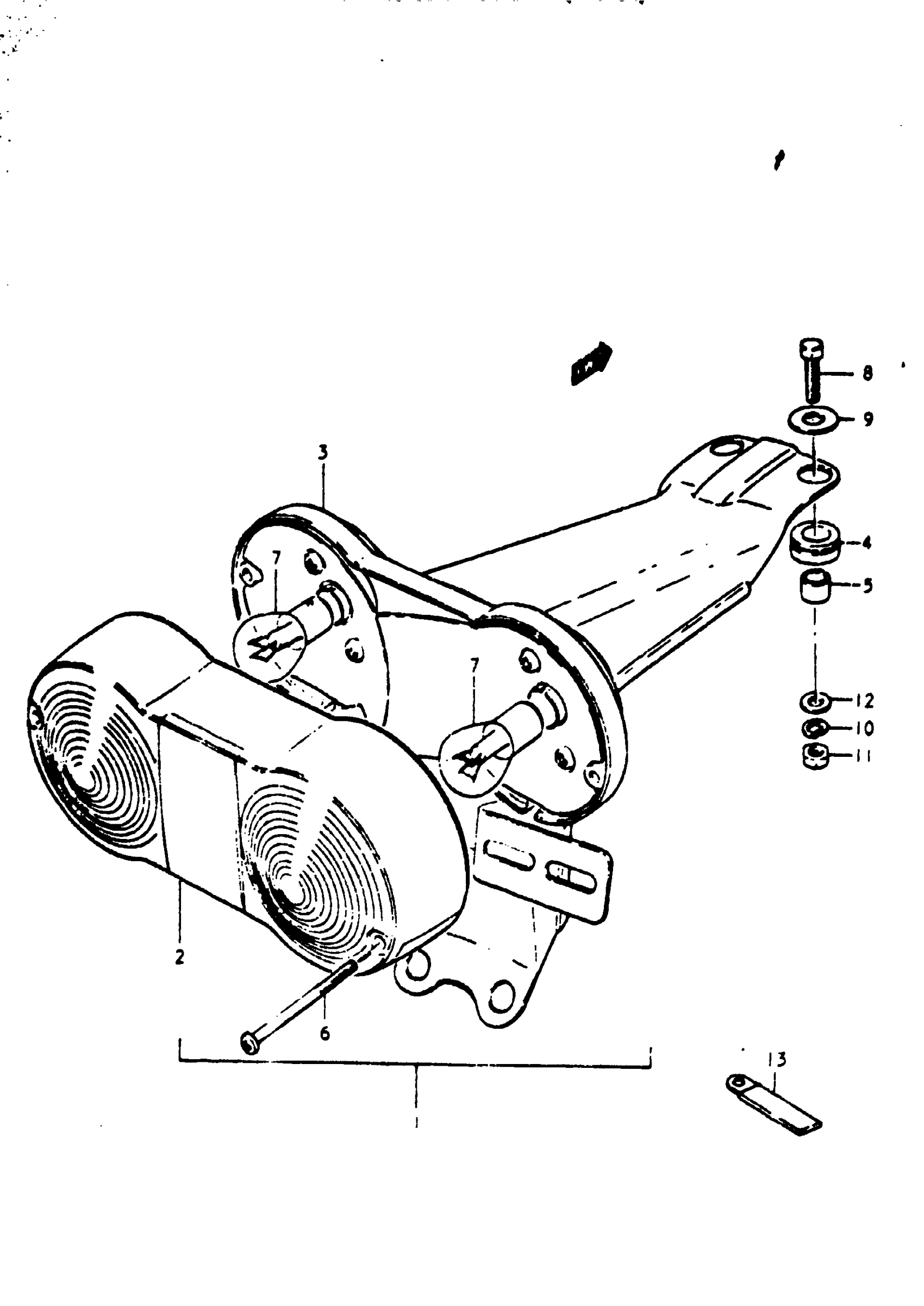

Suzuki GT550 (1977) REAR COMBINATION LAMP (GT550K) Diagram

#

Description

Price

1

LAMP ASSY, REAR COMBINATION | FROM 35710-31611-999; Includes Item(s) 2 - 7

35710-31611

Unavailable

2

LENS

35712-31610

Unavailable

3

HOUSING

35715-31610

Unavailable

4

CUSHION | 10x20x8.2

35765-15010

Unavailable

5

SPACER | 7x10x8 This part replaces 35766-15010.

35766-37110

$5.28

6

SCREW This part replaces 02111-04508.

02112-0450A

$1.51

7

BULB | 12V, 23/8W

09471-12035

$4.49

8

BOLT 6X25 This part replaces 01211-06257.

01204-06257

$2.07

9

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

11

.NUT This part replaces 08311-11068.

08310-00067

$2.13

12

WASHER This part replaces 08322-21068.

08322-01067

$2.13

13

CLAMP | L:60 This part replaces 09403-00069.

09404-06037

Unavailable
