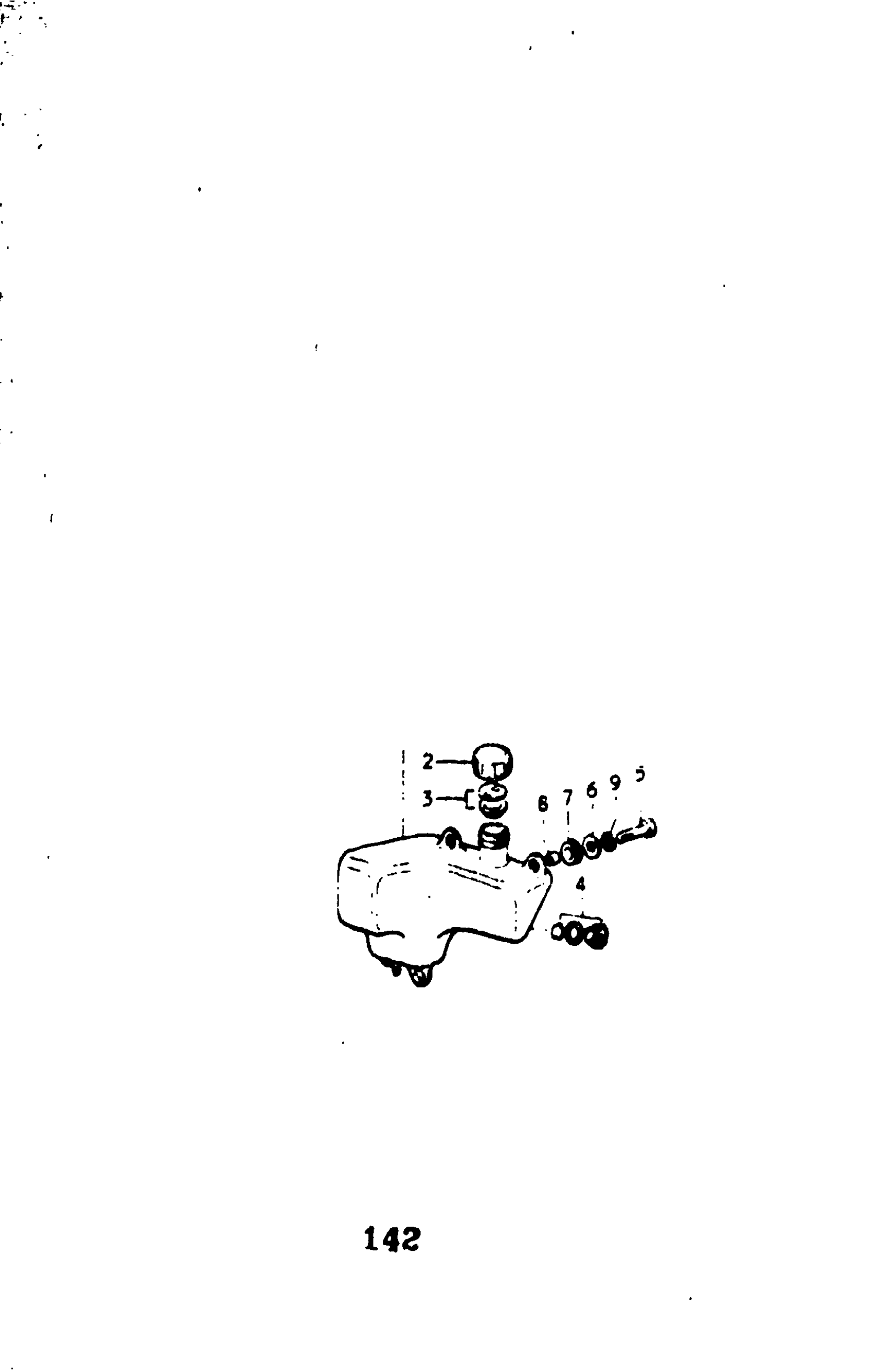

Suzuki GT550 (1977) OIL TANK Diagram

#

Description
Price

1

TANK, OIL | K

44611-33000

Unavailable

1

TANK, OIL | L,M,A,B

44611-33100

Unavailable

2

CAP, OIL TANK | K,L,M; TO 44651-05001 This part replaces 44651-05000.

44651-05003

$5.05

2

CAP, OIL TANK | A,B This part replaces 44651-05001.

44651-05003

$5.05

3

GASKET SET | K; TO 44600-35820 This part replaces 44660-33808.

44600-30833

$5.42

3

GASKET SET | L,M,A; TO 44600-35821 This part replaces 44600-35820.

44600-30833

$5.42

3

GASKET SET | B This part replaces 44600-35821.

44600-30833

$5.42

4

OIL LEVEL INSPE | K; TO 44600-31830 This part replaces 44640-31807.

44600-31832

$11.07

4

OIL LEVEL INSPE | L,M,A,B This part replaces 44600-31830.

44600-31832

$11.07

5

BOLT | K,L,M,A This part replaces 01112-06258.

01500-06257

$1.97

5

BOLT | B This part replaces 01112-06208.

01500-06207

$2.28

6

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

7

CUSHION This part replaces 09320-10008.

09320-10075

$1.93

8

SPACER (6.5X10X10) | 6.8x10x10 This part replaces 09180-06030.

09180-06310

$1.91

9

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13
