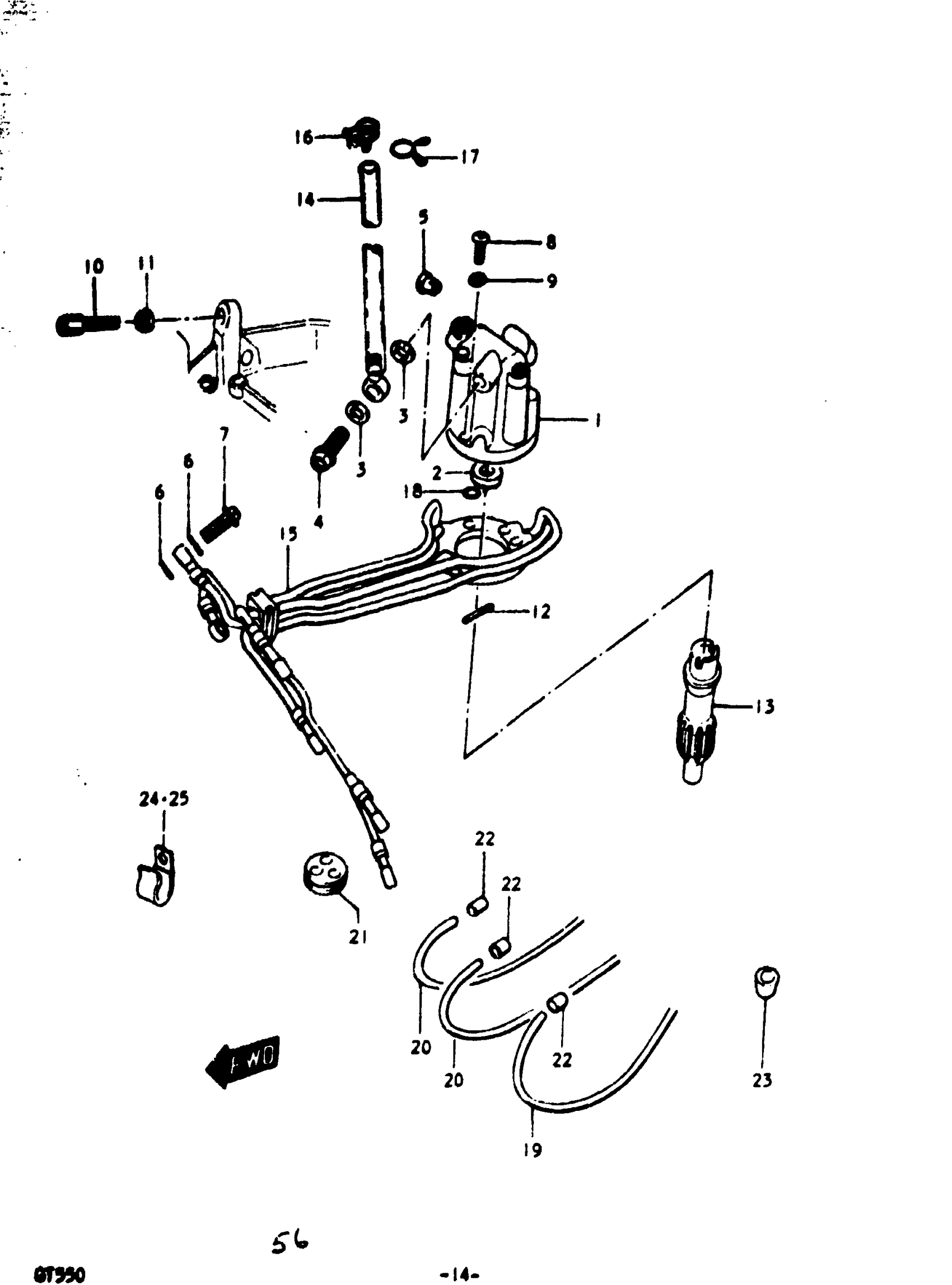

Suzuki GT550 (1977) OIL PUMP Diagram

#

Description
Price

1

PUMP SET, OIL | K; FROM 16001-34803

16100-34001

Unavailable

1

PUMP SET, OIL | L,M; FROM 16100-34810

16100-34101

Unavailable

1

PUMP SET, OIL | M,A,B; FROM 16100-34101; Includes Item(s) 2

16100-34102

Unavailable

2

OIL SEAL, OIL PUMP VALVE | K,L,M,A,B

09285-08002

Unavailable

3

GASKET | K,L,M,A,B; 6.2x12x1.5 This part replaces 09168-06002.

09168-06004

$1.49

4

UNION BOLT | K,L,M,A,B; 6x16

09360-06003

$3.76

5

TERMINAL, CABLE | K,L,M,A This part replaces 16292-03110.

16292-03112

$5.05

5

TERMINAL, CABLE | B This part replaces 16292-03111.

16292-03112

$5.05

6

GASKET | K,L,M,A,B; 6.2x12x1.5 This part replaces 09168-06002.

09168-06004

$1.49

7

UNION BOLT | K,L,M,A,B; 6x16

09360-06003

$3.76

8

SCREW | K,L,M,A,B This part replaces 02111-05257.

02112-05257

$1.49

9

LOCK WASHER | K,L,M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

10

BOLT | K,L,M,A,B; 8x47

09119-08014

$3.55

11

NUT | K,L,M,A,B This part replaces 08312-21088.

08310-00087

$2.13

12

PIN | K,L,M,A,B; 3x13.8

09261-03010

Unavailable

13

SHAFT, OIL PUMP DRIVEN | K,L,M,A,B

16331-34000

Unavailable

14

NO DESCRIPTION AVAILABLE | K,L,M,A,B This part replaces 16810-33030.

16810-33031

Unavailable

15

HOSE, OIL (2) | K,L,M,A,B

16820-34030

Unavailable

16

OIL HOSE CLAMP | K; FROM 09400-00107 This part replaces 09400-10301.

09400-10302

Unavailable

17

CLAMP | L,M,A,B

09401-08401

$1.54

18

O RING | K,L,M,A,B; ID:3.8, D:1.9

09280-03002

$1.49

19

HOSE(2X5X600) | K,L,M,A,B; 2x5x290 TO 09343-02009 This part replaces 09343-02008.

09352-20504-600

$6.70

20

HOSE(2X5X600) | K,L,M,A,B; 2x5x340 This part replaces 09343-02009.

09352-20504-600

$6.70

21

GROMMET, SRIS | K,L,M,A,B

09309-05003

Unavailable

22

CLIP | K,L,M,A,B

09401-04401

$2.06

23

PAD, SRIS RUBBER | K,L,M,A,B

11151-16400

Unavailable

24

CLAMP | K; TO 09403-00059 This part replaces 09403-00049.

09404-08420

$3.16

24

CLAMP | K,L; TO 09404-08404

09403-00087

Unavailable

24

CLAMP | M,A; TO 09404-06413 This part replaces 09404-08403.

09404-08420

$3.16

24

CLAMP | B This part replaces 09404-08413.

09404-08420

$3.16

25

CLAMP | L,M,A; TO 09403-00059 This part replaces 09403-09302.

09404-08420

$3.16

25

CLAMP | B This part replaces 09403-00059.

09404-08420

$3.16
