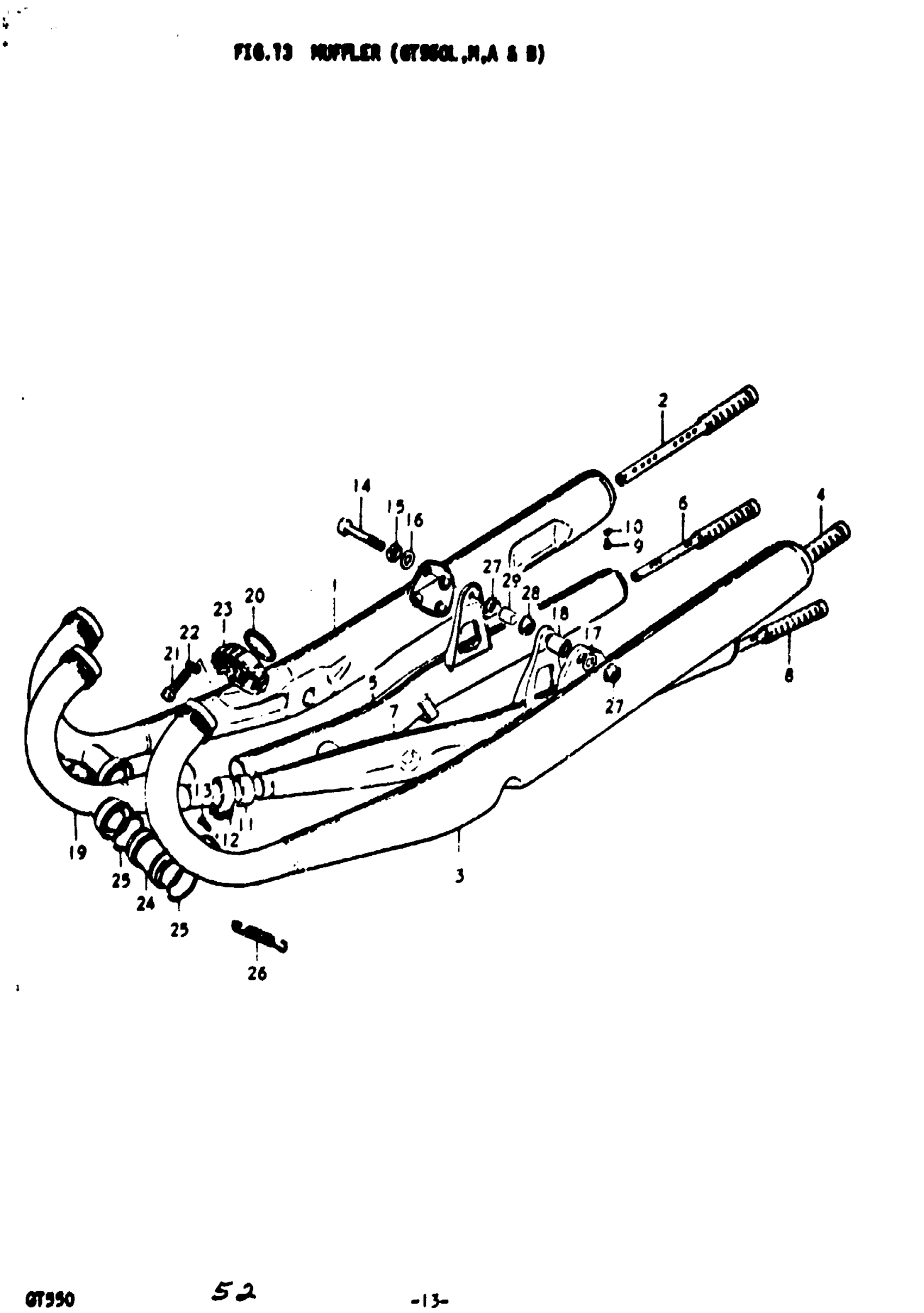

Suzuki GT550 (1977) MUFFLER (GT550L Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | L; TO 14301-34002 This part replaces 14301-34001.

14301-34003-H01

Unavailable

1

NO DESCRIPTION AVAILABLE | M,A; TO 14301-34003 This part replaces 14301-34002.

14301-34003-H01

Unavailable

1

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 2 This part replaces 14301-34003.

14301-34003-H01

Unavailable

2

PIPE, BAFFLE | L,M,A,B

14510-34000

Unavailable

3

NO DESCRIPTION AVAILABLE | L; TO 14302-34002 This part replaces 14302-34001.

14302-34003-H01

Unavailable

3

NO DESCRIPTION AVAILABLE | M,A This part replaces 14302-34002.

14302-34003-H01

Unavailable

3

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 4 This part replaces 14302-34003.

14302-34003-H01

Unavailable

4

PIPE, BAFFLE | L,M,A,B

14510-34000

Unavailable

5

MUFFLER ASSY, CENTER RH | L,M,A; TO 14303-34002

14303-34001

Unavailable

5

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 6 This part replaces 14303-34002.

14303-34621-H01

Unavailable

6

PIPE, BAFFLE | L,M,A,B

14510-36100

Unavailable

7

MUFFLER ASSY, CENTER LH | L,M,A; TO 14304-34002

14304-34001

Unavailable

7

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 8 - 10 This part replaces 14304-34002.

14304-34621-H01

Unavailable

8

PIPE, BAFFLE | L,M,A,B

14510-36100

Unavailable

9

SCREW | L,M,A,B

09128-05004

Unavailable

10

LOCK WASHER | L,M,BA This part replaces 08321-21058.

08321-0105A

$1.84

11

CONNECTOR, MUFFLER | L,M,A,B

14771-06090

$10.14

12

CLAMP | L,M,A,B

09402-36708

Unavailable

13

SCREW | L,M,A,B This part replaces 02112-06208.

02112-06207

$1.78

14

BOLT | L,M,A,B This part replaces 01122-10608.

01500-1060A

$4.41

15

LOCK WASHER | L,M,A,B This part replaces 08321-21108.

08321-01107

$1.84

16

WASHER | L,M,A,B This part replaces 08322-11108.

08322-01107

$2.15

17

WASHER | L,M,A,B This part replaces 08322-21108.

08322-01107

$2.15

18

BUSHING | L,M,A,B This part replaces 09319-10019.

09319-10009

$7.62

19

PIPE, EXHAUST CENTER | L; TO 14170-34002

14170-34001

Unavailable

19

PIPE, EXHAUST CENTER | M,A,B

14170-34002

Unavailable

20

GASKET,EXHAUST | L,M,A,B This part replaces 14181-34010.

14181-34020

Unavailable

21

BOLT | L,M,A,B This part replaces 01122-08357.

01500-0835B

$3.04

22

.LOCK WASHER | L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

23

CLAMP, EXHAUST PIPE | L,M,A,B

14182-34000

Unavailable

24

PIPE, EXHAUST COUPLER | L,M,A,B

14211-31001

Unavailable

25

O-RING | L,M,A,B This part replaces 09280-44003.

09280-43002

$2.12

26

SPRING | L,M,A,B

09443-11002

$3.10

27

DAMPER, BRACKET | L,M,A,B

14770-33000

Unavailable

28

NUT | L,M,A,B This part replaces 09159-10014.

09159-10046-XC0

$2.03

29

SPACER | L,M,A,B; 10.1x15x4.8

09180-10038

Unavailable
