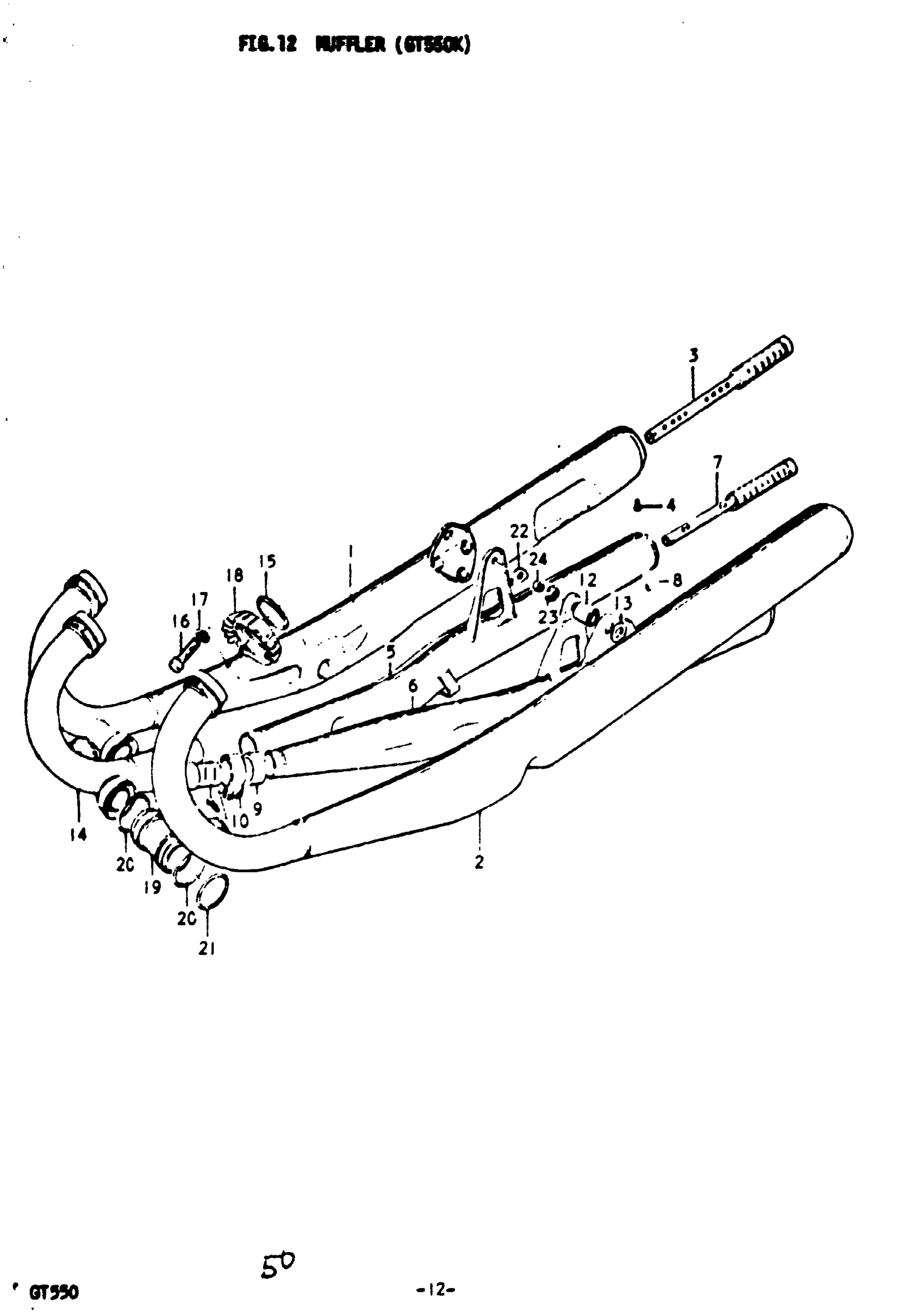

Suzuki GT550 (1977) MUFFLER (GT550K) Diagram

#

Description
Price

1

MUFFLER ASSY, RH | TO 14301-34001 #

14301-34000

Unavailable

2

MUFFLER ASSY, LH | TO 14302-34001 #; Includes Item(s) 3 - 4

14302-34000

Unavailable

3

PIPE, BAFFLE

14510-34000

Unavailable

4

SCREW This part replaces 02112-05068.

09125-05122

$2.06

5

MUFFLER ASSY, CENTER RH | TO 14303-34001 #

14303-34000

Unavailable

6

MUFFLER ASSY, CENTER LH | TO 14304-34001 #; Includes Item(s) 7 - 8

14304-34000

Unavailable

7

PIPE, BAFFLE | TO 14510-36100 # This part replaces 14510-26000.

14510-36100

Unavailable

8

SCREW This part replaces 02112-05068.

09125-05122

$2.06

9

CONNECTOR, MUFFLER

14771-06090

$10.14

10

CLAMP | TO 09402-36708 #

09402-00245

Unavailable

11

SCREW This part replaces 02112-06208.

02112-06207

$1.78

12

BUSHING This part replaces 09319-10019.

09319-10009

$7.62

13

WASHER This part replaces 08322-21108.

08322-01107

$2.15

14

PIPE, EXHAUST CENTER | TO 14170-34001 #

14170-34000

Unavailable

15

GASKET,EXHAUST This part replaces 14181-34010.

14181-34020

Unavailable

16

BOLT This part replaces 01221-08357.

01204-08357

$2.09

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

18

CLAMP, EXHAUST PIPE

14182-34000

Unavailable

19

PIPE, EXHAUST COUPLER

14211-31001

Unavailable

20

O-RING This part replaces 09280-44003.

09280-43002

$2.12

21

SEAL, EXHAUST COUPLER

99000-31020

Unavailable

22

DAMPER, SUPPORT BRACKET

14770-33000

Unavailable

23

NUT This part replaces 09159-10014.

09159-10046-XC0

$2.03

24

SPACER

09180-10038

Unavailable
