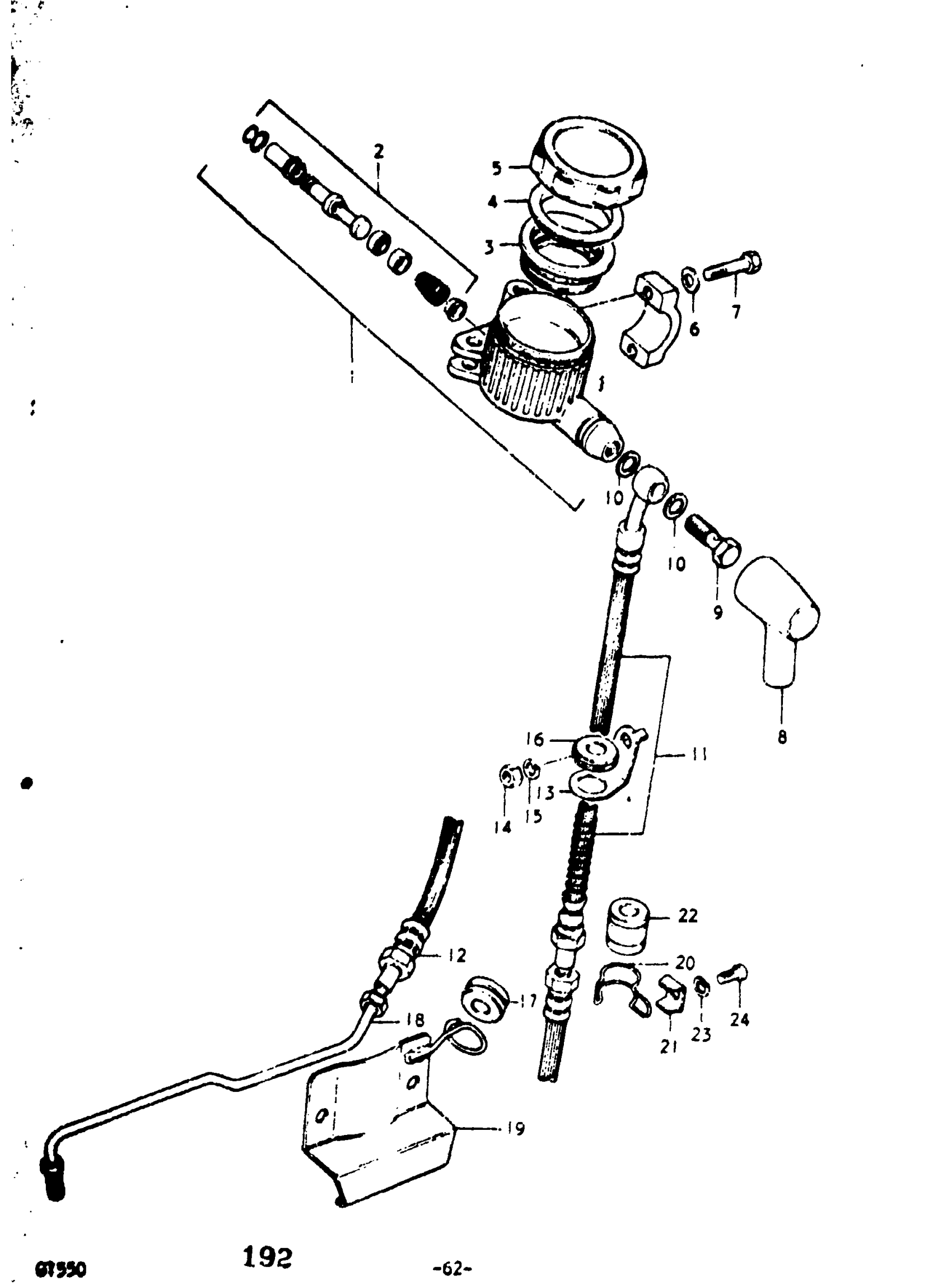

Suzuki GT550 (1977) MASTER CYLINDER (GT550K) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | TO 59600-33610; Includes Item(s) 2 - 7 This part replaces 59600-18440.

59600-336V1

Unavailable

2

PISTON / CUP SET This part replaces 59600-18824.

59600-45821

Unavailable

3

DIAPHRAGM This part replaces 59667-18440.

59667-18441

$10.28

4

PLATE, DIAPHRAGM | TO 59668-18441

59668-18440

Unavailable

5

CAP, RESERVOLR

59669-18440

Unavailable

6

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

7

BOLT This part replaces 01112-06258.

01500-06257

$1.97

8

BOOT, MASTER CYLINDER This part replaces 59711-18400.

59711-49001

$7.51

9

UNION This part replaces 09360-10003.

09360-10017

$3.42

10

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84

11

HOSE, BRAKE FRONT | FROM 59480-34010

59480-34710

Unavailable

12

NO DESCRIPTION AVAILABLE | FROM 59240-34011 This part replaces 59240-34011.

59240-34012

Unavailable

13

GUIDE, BRAKE HOSE RH

59243-18401

Unavailable

14

NUT This part replaces 08312-32108.

08310-00107

$2.19

15

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

16

GROMMET This part replaces 09308-14007.

09308-14009

Unavailable

17

GASKET, BRAKE HOSE

59244-18400

Unavailable

18

PIPE, BRAKE HOSE | TO 59250-34600

59250-34020

Unavailable

19

COVER, BRAKE PIPE RH

59280-18400

Unavailable

20

CLAMP, BRAKE HOSE

51456-33000

Unavailable

21

PLATE, BRAKE HOSE CLAMP

51457-18400

Unavailable

22

GROMMET, BRAKE HOSE

09308-10008

Unavailable

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

FRM CVR,SCREW(6 This part replaces 09128-06011.

09128-06092

$1.92
