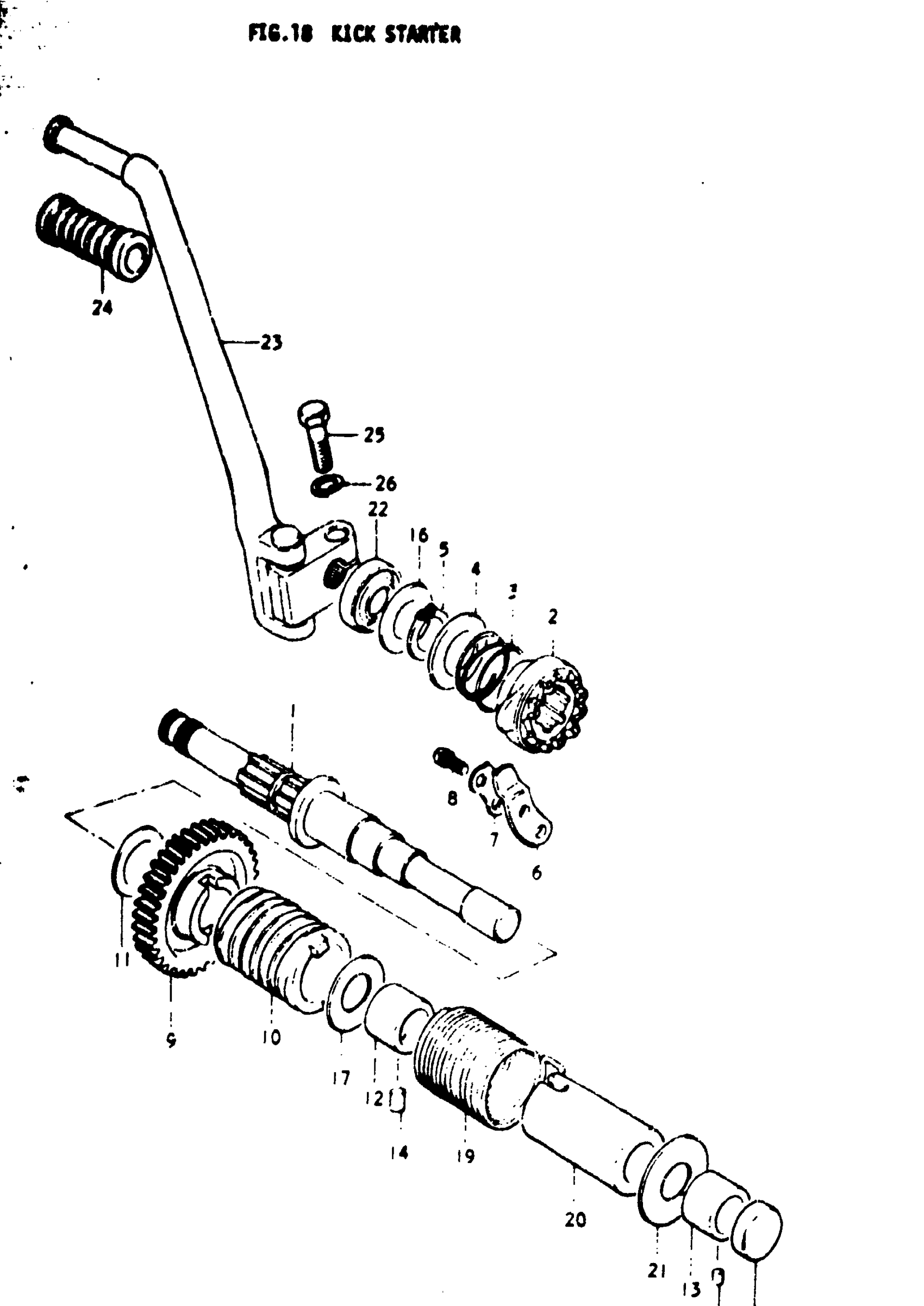

Suzuki GT550 (1977) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER | K,L,M,A,B

26211-34000

Unavailable

2

STARTER, KICK | K,L,M,A,B

26231-34000

Unavailable

3

SPRING | K,L,M,A,B

09440-32002

$2.27

4

THRUST WASHER | K,L,M,A,B

08212-22342

Unavailable

5

CIRCLIP | K,L,M,A,B This part replaces 08331-11229.

08331-31229

$2.48

6

GUIDE, KICK STARTER | K,L,M,A,B

26232-34000

Unavailable

7

WASHER | K,L,M,A,B

09169-06017

Unavailable

8

BOLT, CANISTER | K,L,M,A,B This part replaces 01112-06168.

01500-06167

$1.97

9

GEAR, KICK STARTER DRIVE | K,L,M,A,B

26240-34000

Unavailable

10

SHAFT, OIL PUMP DRIVE | K,L,M,A,B

16320-34000

Unavailable

11

SHIM (20X28X1) | K,L,M,A,B This part replaces 08211-20281.

09181-20167

$2.62

12

BUSHING | K,L,M,A,B; 17x24x18

09300-17002

Unavailable

13

BUSHING | K,L,M,A,B; 16x22x17.5

09300-16002

Unavailable

14

PIN | K,L,M,A This part replaces 06211-07123.

04221-07129

$1.86

14

PIN | B This part replaces 06211-07122.

04221-07129

$1.86

15

PIN | K,L,M,A,B This part replaces 06211-04063.

04221-04069

$2.12

16

THRUST WASHER | K,L,M,A,B

08211-16303

Unavailable

17

THRUST WASHER | K,L,M,A,B

08211-17342

$2.72

18

PLUG | K,L,M,A,B This part replaces 09242-23001.

09242-23002

$4.08

19

SPRING | K,L,M,A,B

09448-37001

Unavailable

20

GUIDE, SPRING | K,L,M,A,B

26221-11000

Unavailable

21

WASHER | K,L,M,A,B; 16x38x1.2

09166-16001

Unavailable

22

SEAL,OIL(16X30X | K,L,M,A,B This part replaces 09285-16002.

09285-16005

$2.75

23

LEVER ASSY, KICK STARTER | K,L,M; FROM 26300-34000 TO 26300-34002

26300-34001

Unavailable

23

LEVER ASSY, KICK STARTER | A,B; Includes Item(s) 24

26300-34002

Unavailable

24

RUBBER,KICK STA | K,L,M,A,B This part replaces 26352-16401.

26352-16402

$3.56

25

BOLT | K,L,M,A,B This part replaces 01122-10308.

01500-1030A

$3.16

26

LOCK WASHER | K,L,M,A,B This part replaces 08321-21108.

08321-01107

$1.84
