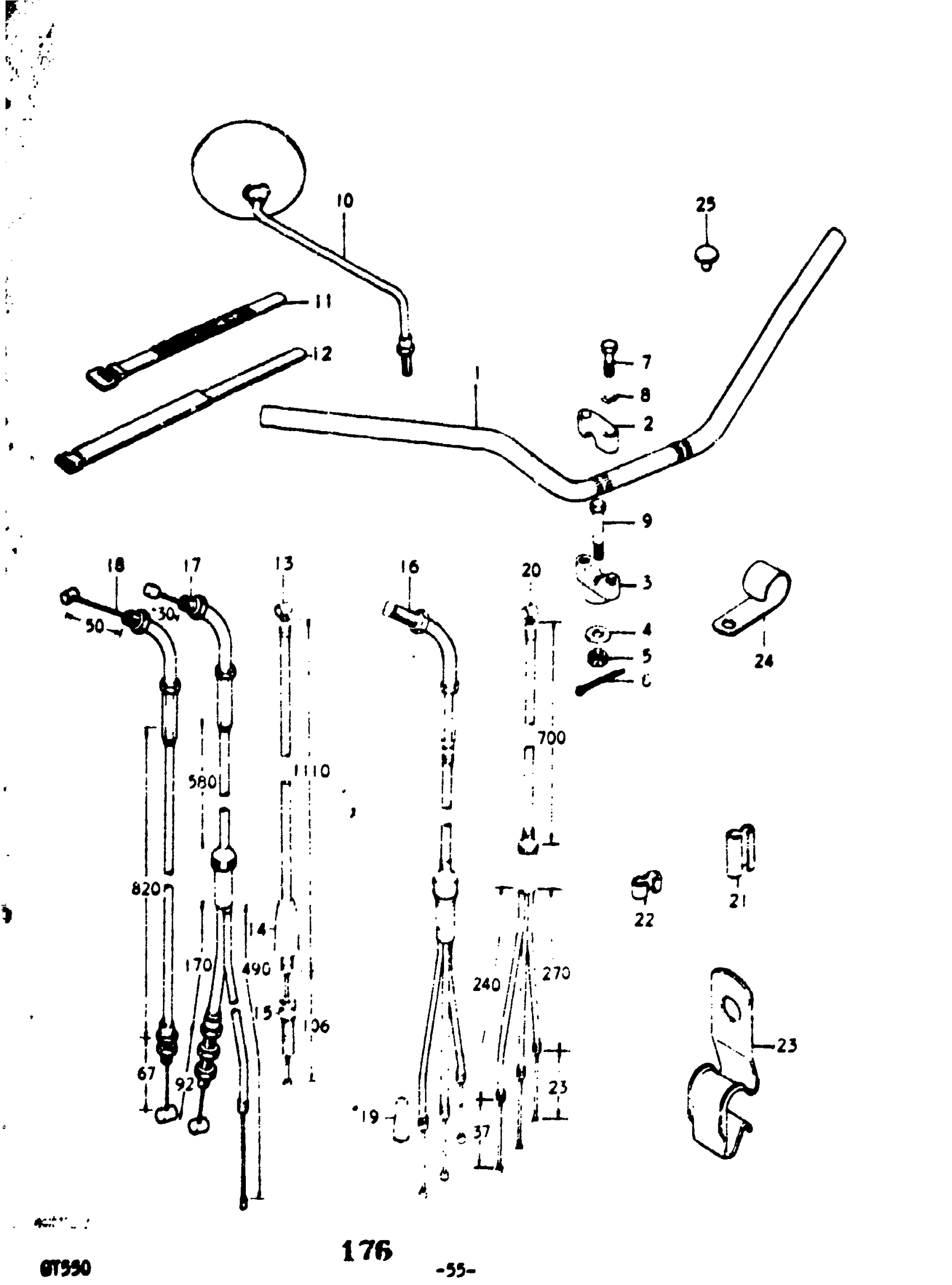

Suzuki GT550 (1977) HANDLEBAR - CONTROL CABLE Diagram

HANDLEBAR

56111-33000

Unavailable

CLAMP, HANDLEBAR UPPER | K,L,M; TO 56211-27200-019

56211-27100-019

Unavailable

HOLDER, HANDLE, UPPER | A,B This part replaces 56211-27200-019.

56211-27200-291

$17.90

HOLDER, HANDLE LOWER (BLACK) | K,L This part replaces 56221-33600.

56221-42A00-291

$45.38

WASHER | K,L; 10.5x28x2.3

09160-10035

$1.78

NUT | K,L This part replaces 08314-11108.

08314-3110A

$1.99

PIN | K,L This part replaces 04111-25308.

04111-2530A

$1.49

BOLT This part replaces 01221-08357.

01204-08357

$2.09

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

BOLT | K,L

09101-10015

Unavailable

MIRROR ASSY,RR | K,L; 8SCREW This part replaces 56500-31010.

56500-23412

$70.29

MIRROR ASSY,RR | M,A,B; 10SCREW This part replaces 56500-31011.

56500-31014

$48.02

MIRROR ASSY,RR | K,L; 8SCREW This part replaces 56600-31010.

56600-23412

$82.68

MIRROR ASSY,RR | M,A,B; 10SCREW This part replaces 56600-31011.

56600-31014

$48.02

BAND | K,L; L:123M,A,B; L:123

09407-12402

$3.04

CLAMP(L:250) This part replaces 09407-25301.

09407-25302

Unavailable

CABLE ASSY, CLUTCH | Includes Item(s) 14 - 15 This part replaces 58200-31000.

58200-31001

Unavailable

BOOT

09287-10001

Unavailable

NUT This part replaces 08312-11088.

08310-00087

$2.13

CABLE ASSY, THROTTLE | K; TO 58300-33001 This part replaces 58300-33000.

58300-33001

Unavailable

CABLE ASSY, THROTTLE NO.1 | L,M,A,B

58300-33100

Unavailable

CABLE ASSY, THROTTLE NO.2 | L,M,A,B

58300-33600

Unavailable

SEAL,DUST | K This part replaces 09287-07002.

09287-07006

$2.30

CABLE, STARTER | K

58400-31000

Unavailable

CLIP | K

09408-00001

Unavailable

CLIP | K; L:10

09408-00005

Unavailable

GUIDE, CABLE

58621-34000

Unavailable

CLAMP | L,M,A,B

09403-13401

$2.30

CAP, FRONT FORK STEERING | L

09150-08005

Unavailable
