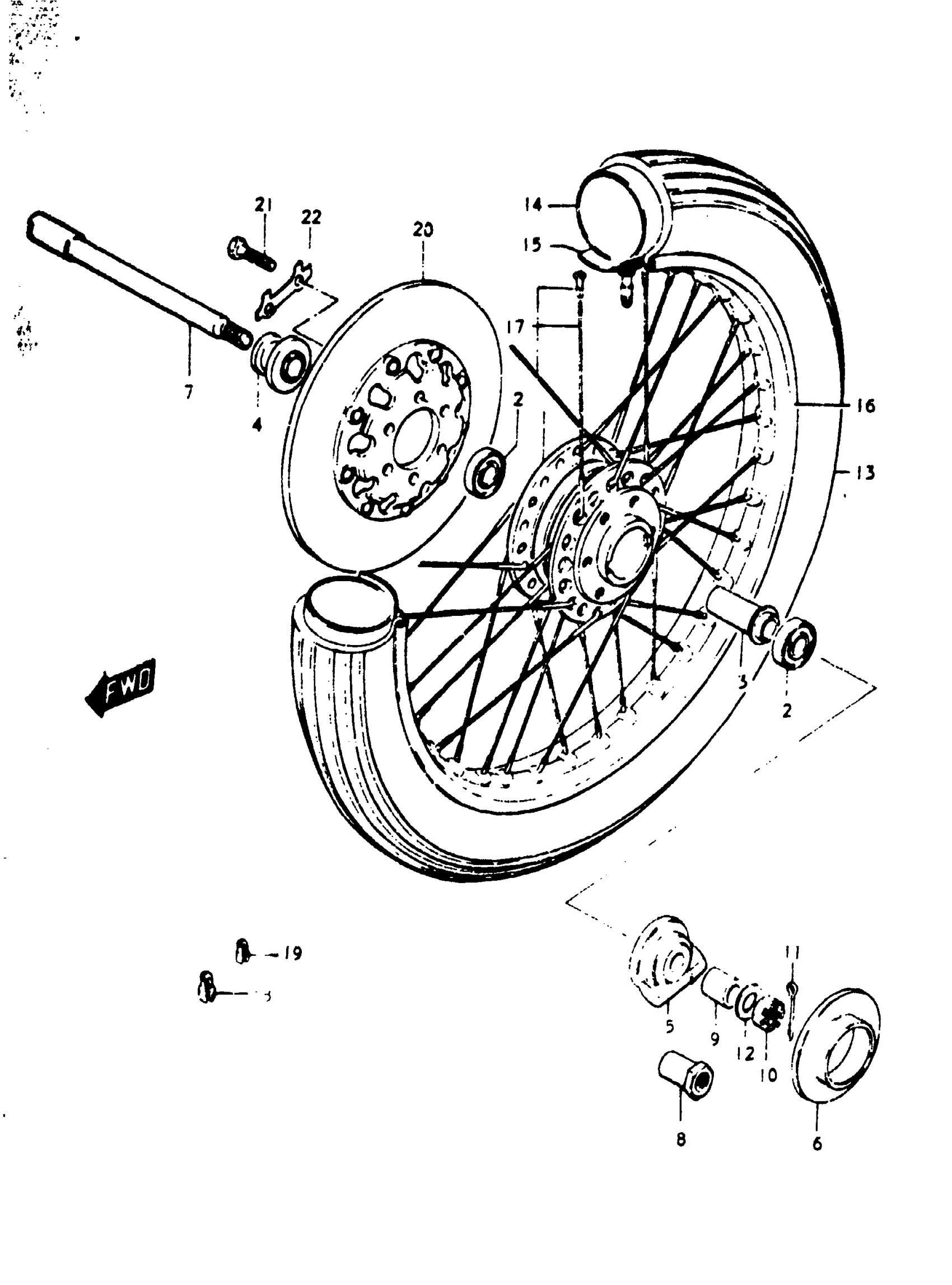

Suzuki GT550 (1977) FRONT WHEEL Diagram

#

Description
Price

1

HUB SET, FRONT WHEEL | K,L; TO 54100-18831

54100-18830

Unavailable

1

NO DESCRIPTION AVAILABLE | M,A,B; Includes Item(s) 2 - 4 This part replaces 54100-18831.

54111-47002

Unavailable

2

BEARING This part replaces 08123-63020.

08123-6302B

$22.74

3

SPACER

54730-18400

$20.45

4

SPACER, AXLE, RH | K,L,M This part replaces 54740-18400.

54740-18402

Unavailable

4

SPACER, AXLE, RH | A,B This part replaces 54740-18401.

54740-18402

Unavailable

5

BOX ASSY,SPEEDO | K,L,M,A This part replaces 54600-34000.

54600-08C01

Unavailable

5

BOX ASSY,SPEEDO | B This part replaces 54600-18401.

54600-18403

Unavailable

6

DUST SEAL, SPEEDOMETER GEAR BO

54871-18400

Unavailable

7

AXLE, FRONT | K

54711-33000

Unavailable

7

AXLE,FRONT | L This part replaces 54711-33001.

54711-3300V

Unavailable

7

AXLE,FRONT | M,A,B This part replaces 54711-33002.

54711-3300V

Unavailable

8

NUT, FRONT AXLE | K

54721-31000

Unavailable

9

SPACER | L,M,A,B

09180-15034

Unavailable

10

NUT | L,M,A,B This part replaces 08314-31128.

08314-3112A

$2.41

11

PIN | L,M,A,B This part replaces 04111-30308.

04111-3030A

$1.49

12

WASHER | L,M,A,B This part replaces 08322-21128.

08322-01127

$1.84

13

TIRE, FRONT | K,L; 3.25-19 TO 55100-31012

55100-31011

Unavailable

13

TIRE, FRONT | M; 3.25-19 TO 55100-31600

55100-31012

Unavailable

13

TIRE, FRONT | A,B

55100-31600

Unavailable

14

TUBE | 3.25-19 This part replaces 55200-15010.

55200-44611

$33.73

15

PROTECTOR | K,L,M; 22-19 B.S. TO 55261-15010

55261-15030

Unavailable

15

PROTECTOR, WHEEL INNER TUBE FRONT | A,B; 22-19 INDUE This part replaces 55261-15010.

55261-15020

$3.15

16

RIM, WHEEL

55311-34020

Unavailable

17

SPOKE SET This part replaces 55320-34805.

55320-45000

Unavailable

18

BALANCER WHEEL (30G) | (0~3); 30G This part replaces 55412-11000.

55413-41F00

$7.50

19

BALANCER WHEEL (15G) | (0~3); 20G This part replaces 55411-11000.

55411-26G00

$7.73

20

DISK, FRONT BRAKE | K; TO 59210-37000

59210-34000

Unavailable

20

DISK, FRONT BRAKE | L,M; TO 59210-37001

59210-37000

Unavailable

20

DISK, FRONT BRAKE | A,B

59210-37001

Unavailable

21

BOLT | 8x40

09100-08094

$2.71

22

WASHER

09169-08016

$2.41
