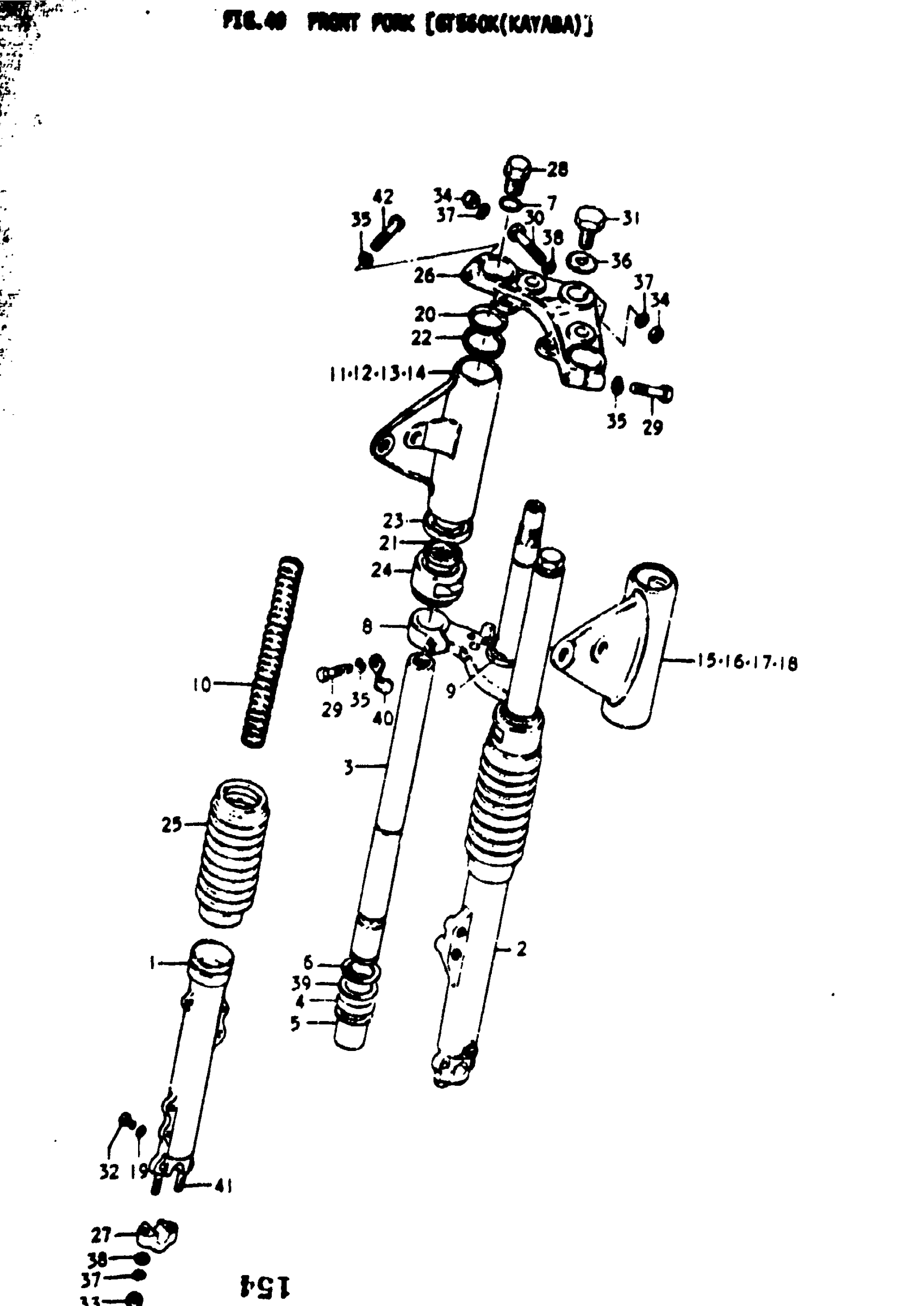

Suzuki GT550 (1977) FRONT FORK [ GT550K (KAYABA) ] Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE This part replaces 51100-34710-278.

51106-34710

Unavailable

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 42 This part replaces 51100-34710-705.

51106-34710

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 51131-34710.

51131-34710-111

Unavailable

2

OUTER TUBE, LH

51131-34010

Unavailable

3

INNER TUBE This part replaces 51110-34010.

51110-34011

Unavailable

4

OIL SEAL

51153-34010

Unavailable

5

GUIDE, INNER TUBE

51152-34010

Unavailable

6

CIRCLIP

51156-34010

Unavailable

7

O RING

51181-18510

Unavailable

8

STEM, STEERING

51410-34010

Unavailable

9

OUTER RACE

51621-33001

$16.25

10

SPRING

51171-34010

Unavailable

11

BRACKET, HEADLAMP RH | TO 51530-34011-278

51530-34010-278

Unavailable

11

BRACKET, HEADLAMP RH | TO 51530-34011-705

51530-34010-705

Unavailable

12

BRACKET, HEADLAMP RH | TO 51530-34012-278

51530-34011-278

Unavailable

12

BRACKET, HEADLAMP RH | TO 51530-34012-705

51530-34011-705

Unavailable

13

BRACKET, HEADLAMP RH | TO 51530-34111

51530-34012-278

Unavailable

13

BRACKET, HEADLAMP RH | TO 51530-34111 This part replaces 51530-34012-705.

51530-34111

Unavailable

14

BRACKET, HEADLAMP RH | CHROME

51530-34111

Unavailable

15

BRACKET, HEADLAMP LH | TO 51540-34011-278

51540-34010-278

Unavailable

15

BRACKET, HEADLAMP LH | TO 51540-34011-705

51540-34010-705

Unavailable

16

BRACKET, HEADLAMP LH | TO 51540-34012-278

51540-34011-278

Unavailable

16

BRACKET, HEADLAMP LH | TO 51540-34012-705

51540-34011-705

Unavailable

17

BRACKET, HEADLAMP LH | TO 51540-34111

51540-34012-278

Unavailable

17

BRACKET, HEADLAMP LH | TO 51540-34111 This part replaces 51540-34012-705.

51540-34111

Unavailable

18

BRACKET, HEADLAMP LH | CHROME

51540-34111

Unavailable

19

GASKET

51183-03010

$2.07

20

GASKET

51556-31010

Unavailable

21

GASKET

51553-31010

Unavailable

22

CAP This part replaces 51555-31010.

51555-31000

Unavailable

23

SEAT, HEADLAMP BRACKET This part replaces 51551-31010.

51551-31000

Unavailable

24

GUIDE, BOOT

51570-31010

Unavailable

25

BOOT

51571-33010

Unavailable

26

NO DESCRIPTION AVAILABLE This part replaces 51311-34010-019.

51300-15810-019

Unavailable

27

HOLDER, AXLE

51132-31010

Unavailable

28

CAP

51351-31010

Unavailable

29

BOLT This part replaces 01122-10408.

01500-10407

$3.55

30

BOLT This part replaces 01122-08508.

01500-08507

$3.05

31

BOLT

09104-10005

Unavailable

32

SCREW This part replaces 02111-04087.

02112-04087

$1.49

33

NUT This part replaces 08312-12088.

08310-00087

$2.13

34

NUT This part replaces 08312-11088.

08310-00087

$2.13

35

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

36

WASHER

51356-22011

Unavailable

37

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

38

WASHER This part replaces 08322-21088.

08322-01087

$2.13

39

WASHER

51158-34010

Unavailable

40

CLAMP

34991-18110

Unavailable

41

STUD BOLT (L:30) This part replaces 51137-31010.

09108-08142

$3.18

42

BOLT | 10x55

09100-10021

Unavailable
