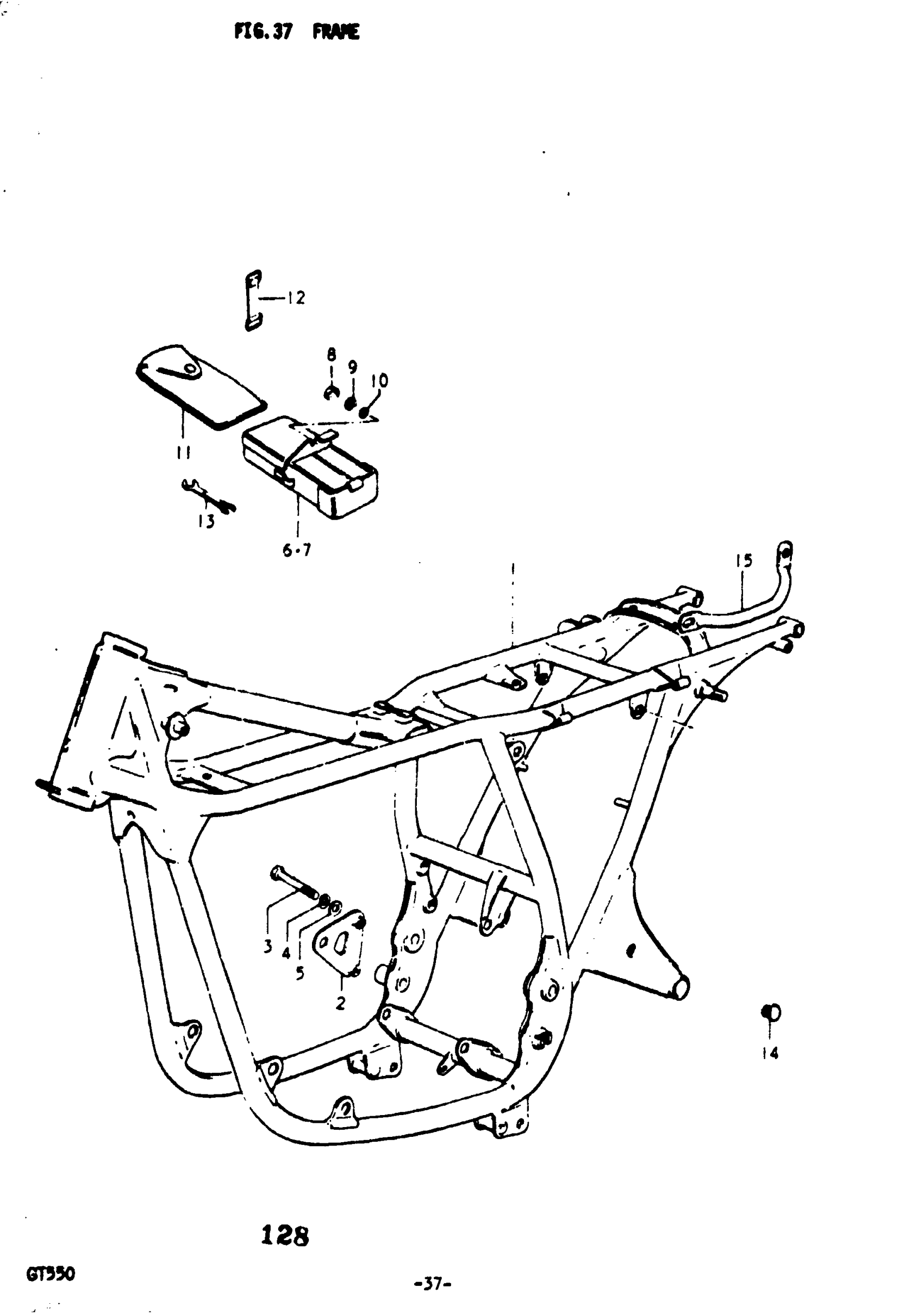

Suzuki GT550 (1977) FRAME Diagram

#

Description
Price

1

FRAME | K

41100-34000-019

Unavailable

1

NO DESCRIPTION AVAILABLE | L,M; TO 41100-34101-019 This part replaces 41100-34100-019.

41100-34621-019

Unavailable

1

NO DESCRIPTION AVAILABLE | A,B This part replaces 41100-34101-019.

41100-34621-019

Unavailable

2

PLATE, ENGINE MOUNTING REAR | K,L

41590-33000

Unavailable

2

PLATE, ENGINE MOUNTING REAR | M,A,B

41590-33100

Unavailable

3

BOLT | K,L,M,A This part replaces 01122-08558.

01500-08557

$3.16

3

BOLT | B This part replaces 01122-08508.

01500-08507

$3.05

4

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

5

WASHER | K,L,M This part replaces 08322-11088.

08322-01087

$2.13

6

HOLDER, TOOL | K

41550-33000

Unavailable

7

HOLDER, TOOL | L,M,A,B

41550-33100

Unavailable

8

.NUT | K,L,M,A,B This part replaces 08311-11068.

08310-00067

$2.13

9

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

10

.WASHER | K,L,M,A,B This part replaces 08322-11068.

08322-0106B

$2.26

11

TOOL SET | K,L,M,A,B This part replaces 09800-00134.

09800-21033

$48.22

12

BAND | K,L,M,A,B This part replaces 09462-00041.

09462-00041-XC0

Unavailable

13

WRENCH, CONTACT POINT | K

09930-20111

Unavailable

14

CAP | K,L,M This part replaces 09250-09001.

09250-09008

$1.54

15

GRIP, FRAME HANDLE | K,M,A,B

41411-34000

Unavailable
