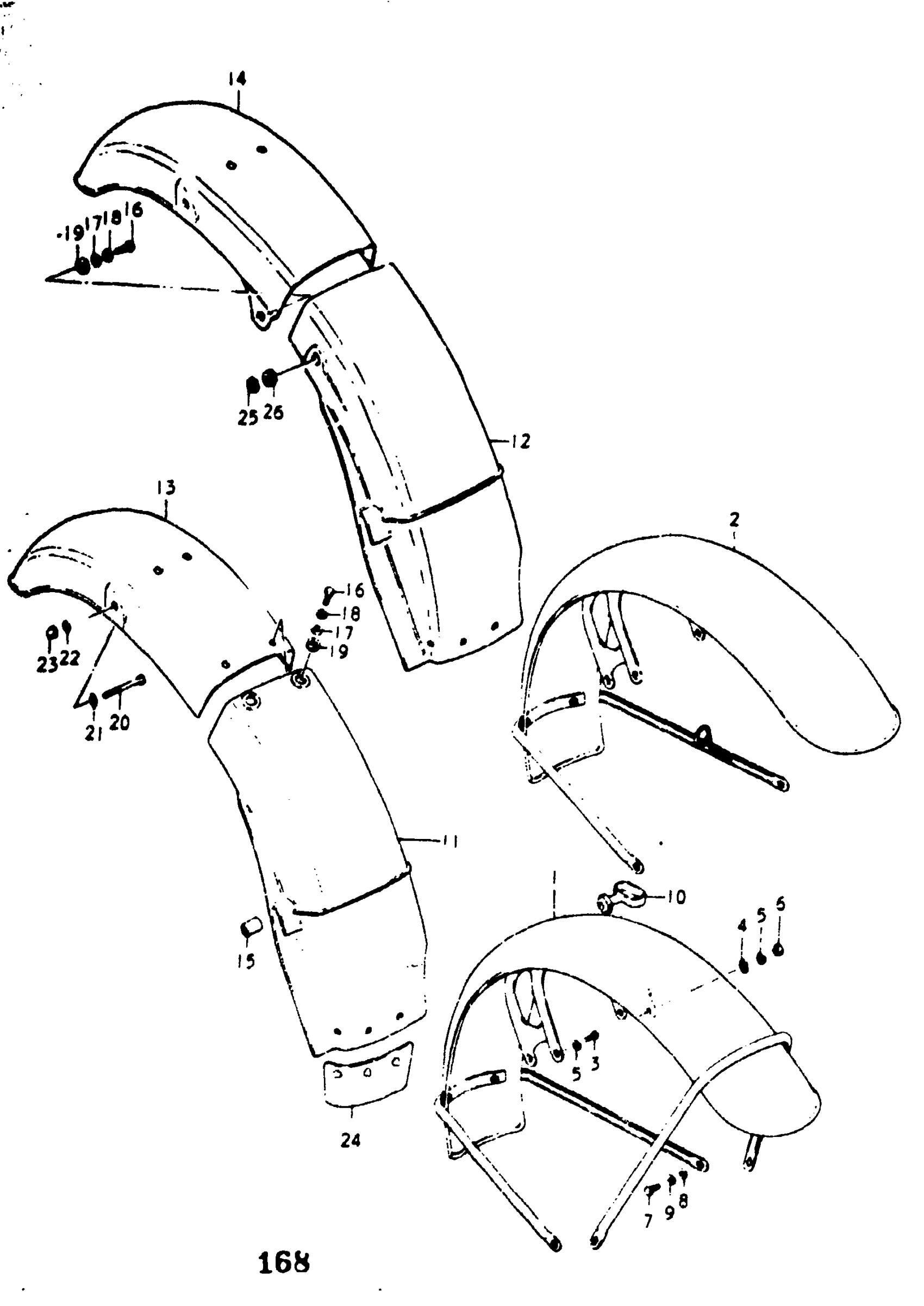

Suzuki GT550 (1977) FENDER Diagram

#

Description
Price

1

FENDER, FRONT | K; TO 53100-34002

53100-33001

Unavailable

1

FENDER, FRONT | L; TO 53100-31702

53100-31701

Unavailable

1

FENDER, FRONT | M

53100-31702

Unavailable

2

FENDER, FRONT | A,B This part replaces 53100-31703.

53100-31702

Unavailable

3

BOLT | K,L; 8x22M; 8x22 This part replaces 09100-08072.

01500-0820A

$2.28

3

BOLT | M,A,B This part replaces 01221-08607.

01204-08607

$3.40

3

PLUG, DRAIN | K; 8x16A,B; 8x16 This part replaces 01122-08168.

01500-0816B

$2.50

4

WASHER | M,A,B This part replaces 08322-11088.

08322-01087

$2.13

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

NUT | M,A,B This part replaces 08311-11088.

08310-00087

$2.13

7

BOLT, CANISTER | K,L,MA,B This part replaces 01112-06168.

01500-06167

$1.97

8

WASHER | K,L,MA,B This part replaces 08322-21068.

08322-01067

$2.13

9

LOCK WASHER | K,L,MA,B This part replaces 08321-21068.

08321-01067

$2.13

10

GUIDE, CABLE | K,M,A; TO 58621-21202

58621-21201

Unavailable

10

GUIDE, METER CABLE | B This part replaces 58621-21202.

58621-21204

$6.68

11

BODY RR FENDER, | K,L; TO 63110-31001 This part replaces 63112-31000.

63112-31002

Unavailable

11

BODY RR FENDER, | M; STEEL This part replaces 63110-31001.

63112-31002

Unavailable

12

BODY RR FENDER, | M,A,B; PLASTICS This part replaces 63112-31001.

63112-31002

Unavailable

13

BODY, REAR FENDER REAR | M; TO 63113-31002

63113-31000

Unavailable

13

BODY, REAR FENDER REAR | M; TO 63113-31002

63113-31001

Unavailable

14

BODY, REAR FENDER REAR | M,A,B

63113-31002

Unavailable

15

CUSHION This part replaces 09329-05003.

09329-05009

$2.37

16

BOLT | K,L,M This part replaces 01112-06208.

01500-06207

$2.28

16

BOLT | A,B This part replaces 01112-06128.

01500-06127

$1.97

17

WASHER | K,L,MA,B This part replaces 08322-21068.

08322-01067

$2.13

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

19

SPACER

09180-06041

Unavailable

20

BOLT This part replaces 01122-08508.

01500-08507

$3.05

21

WASHER | K,LM,A,B This part replaces 08322-21088.

08322-01087

$2.13

21

WASHER | MA,B This part replaces 09160-08030.

09160-08128

$2.80

22

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

23

NUT This part replaces 08313-11087.

08313-10087

$2.28

24

GUARD, REAR FENDER MUD

63411-15101

Unavailable

25

WASHER | A,B This part replaces 09160-06007.

09160-06084

$1.78

26

CUSHION | A,B This part replaces 09320-05006.

09320-06504

$4.96
