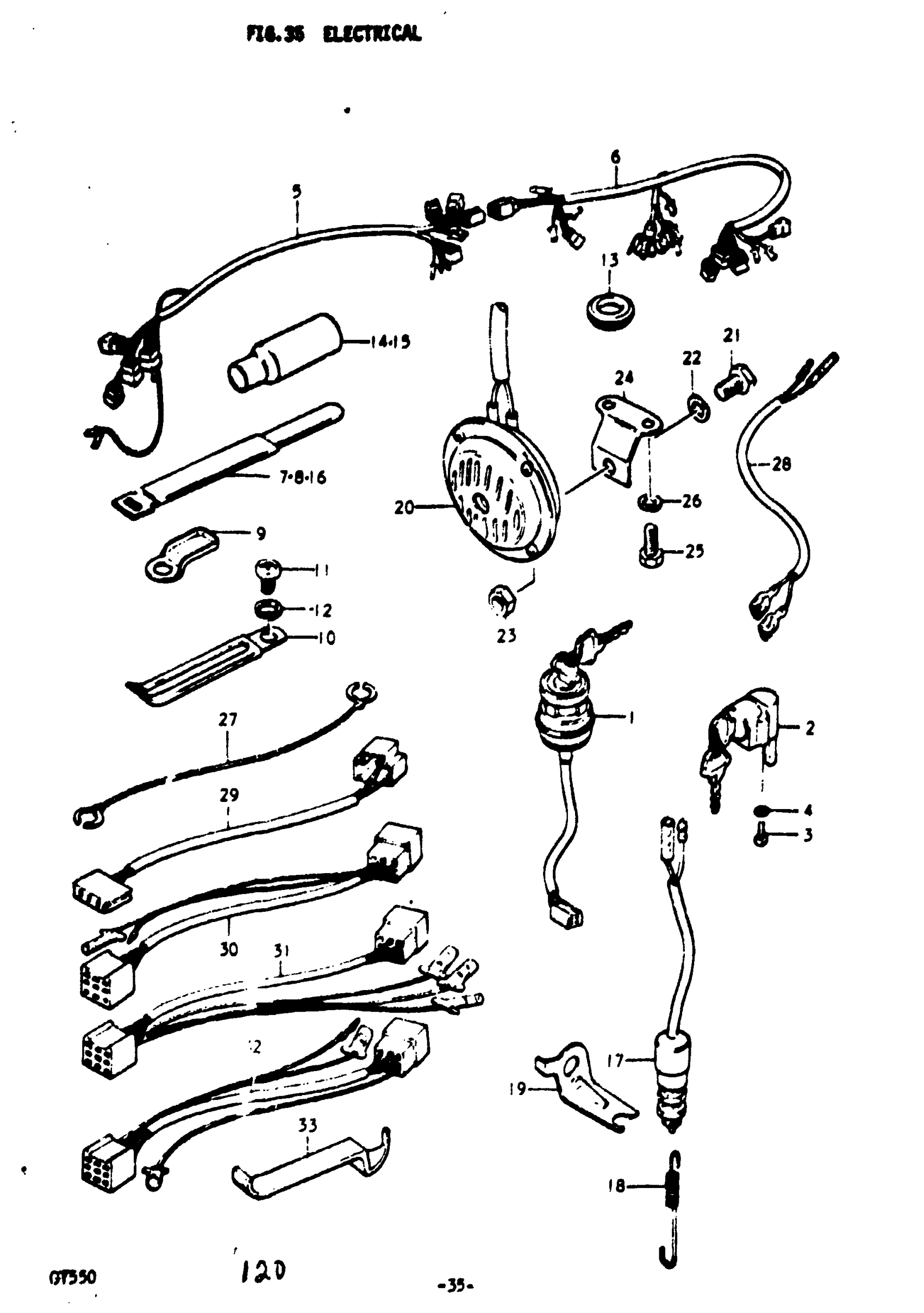

Suzuki GT550 (1977) ELECTRICAL Diagram

#

Description
Price

1

SW ASSY IGNITIO | K; TO 37110-33012 This part replaces 37110-33011.

37110-33017

Unavailable

1

SW ASSY IGNITIO | L,M; TO 37110-33013 This part replaces 37110-33012.

37110-33017

Unavailable

1

SW ASSY IGNITIO | A This part replaces 37110-33013.

37110-33017

Unavailable

1

SW ASSY IGNITIO | B This part replaces 37110-33015.

37110-33017

Unavailable

2

LOCK ASSY, STEERING | K,L,M,A,B This part replaces 51900-33810.

51900-33811

Unavailable

3

SCREW | K,L,M,A,B This part replaces 02111-05257.

02112-05257

$1.49

4

LOCK WASHER | K,L,M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

5

WIRING HARNESS (1) | K

36610-34000

Unavailable

5

WIRING HARNESS (1) | L; TO 36610-33710 This part replaces 36610-34100.

36610-33103

Unavailable

5

WIRING HARNESS (1) | L; TO 36610-33101 USE WITH 36852-34000 This part replaces 36610-33710.

36610-33103

Unavailable

5

WIRING HARNESS (1) | L,M; TO 36610-33102 USE WITH 36851-33700 AND 36852-33@00

36610-33101

Unavailable

5

WIRING HARNESS (1) | M,A

36610-33102

Unavailable

5

WIRING HARNESS (1) | B

36610-33103

Unavailable

6

WIRING HARNESS (2) | K

36620-34000

Unavailable

6

WIRING HARNESS (2) | L; FROM 36620-34001 TO 36620-34701

36620-34002

Unavailable

6

WIRING HARNESS (2) | L; TO 36620-34702 USE WITH 36864-34001 This part replaces 36620-34701.

36620-34004

Unavailable

6

WIRING HARNESS (2) | L,M; TO 36620-34004 USE WITH 36851-34700 This part replaces 36620-34702.

36620-34004

Unavailable

6

WIRING HARNESS (2) | M,A,B

36620-34004

Unavailable

7

CLAMP | K; L:140 TO 09407-18301L,M,A,B; L:140 TO 09407-18301 This part replaces 09407-14301.

09407-18302

$2.28

9

CLAMP, CABLE | K,L,M,A,B; L:180 This part replaces 09403-06302.

09403-06301

Unavailable

10

CLAMP(L:80) | K,L,ML,M,A,B This part replaces 09404-06404.

09404-06036

$1.74

11

SCREW | M,A,B This part replaces 02112-06108.

02112-06107

$1.49

12

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13

13

BUSHING, WIRING HARNESS | K,L,M,A,B

36621-34000

Unavailable

14

BOOT | K,L This part replaces 36618-28000.

36618-30000

$9.00

15

BOOT, WIRING HARNESS | K,L,A,B

36618-34000

Unavailable

16

BOOT, WIRING HARNESS | M

36618-34000

Unavailable

16

CLAMP | K; L:180 This part replaces 09407-18301.

09407-18302

$2.28

16

CLAMP | L,M,A,B; L:140 TO 09407-18301 This part replaces 09407-14301.

09407-18302

$2.28

17

SWITCH ASSY, BRAKE LAMP | K; TO 37740-19051

37740-20010

$24.43

17

SWITCH, REAR BRAKE LAMP | L,M,A,B This part replaces 37740-19051.

37740-48071

$19.18

18

SPRING | K,L,M,A,B

09443-06024

Unavailable

19

BRACKET, BRAKE LAMP SWITCH | K,L,M,A,B

37752-33001

Unavailable

20

HORN | K; TO 38500-31011

38500-31010

Unavailable

20

HORN | L,M; TO 38500-31012 USE WITH 36870-31030

38500-31011

Unavailable

20

HORN | M,A,B This part replaces 38500-31012.

38500-31646

Unavailable

21

BOLT | K,L,M,A,B This part replaces 01122-08128.

01500-08127

$2.62

22

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

23

NUT | K,L,M,A,B This part replaces 08312-32088.

08310-00087

$2.13

24

BRACKET, HORN | K,L,M,A,B

38591-31000

Unavailable

25

BOLT | K,L,M,A,B This part replaces 01112-06128.

01500-06127

$1.97

25

BOLT | K,L,M,A,B This part replaces 01112-06108.

01500-06107

$2.06

26

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

27

LEAD WIRE, ENGINE (-) | L,M,A,B This part replaces 36852-26600.

36851-02331

Unavailable

28

LEAD WIRE, HORN | M

36870-31030

Unavailable

29

LEAD WIRE, HEADLAMP | L,M,A,B This part replaces 36852-34000.

36853-30500

$11.63

30

LEAD WIRE (1) | L

36851-33700

Unavailable

31

LEAD WIRE (2) | L

36852-33700

Unavailable

32

LEAD WIRE | L

36851-34700

Unavailable

33

BAND | L,M

33881-22200

Unavailable
