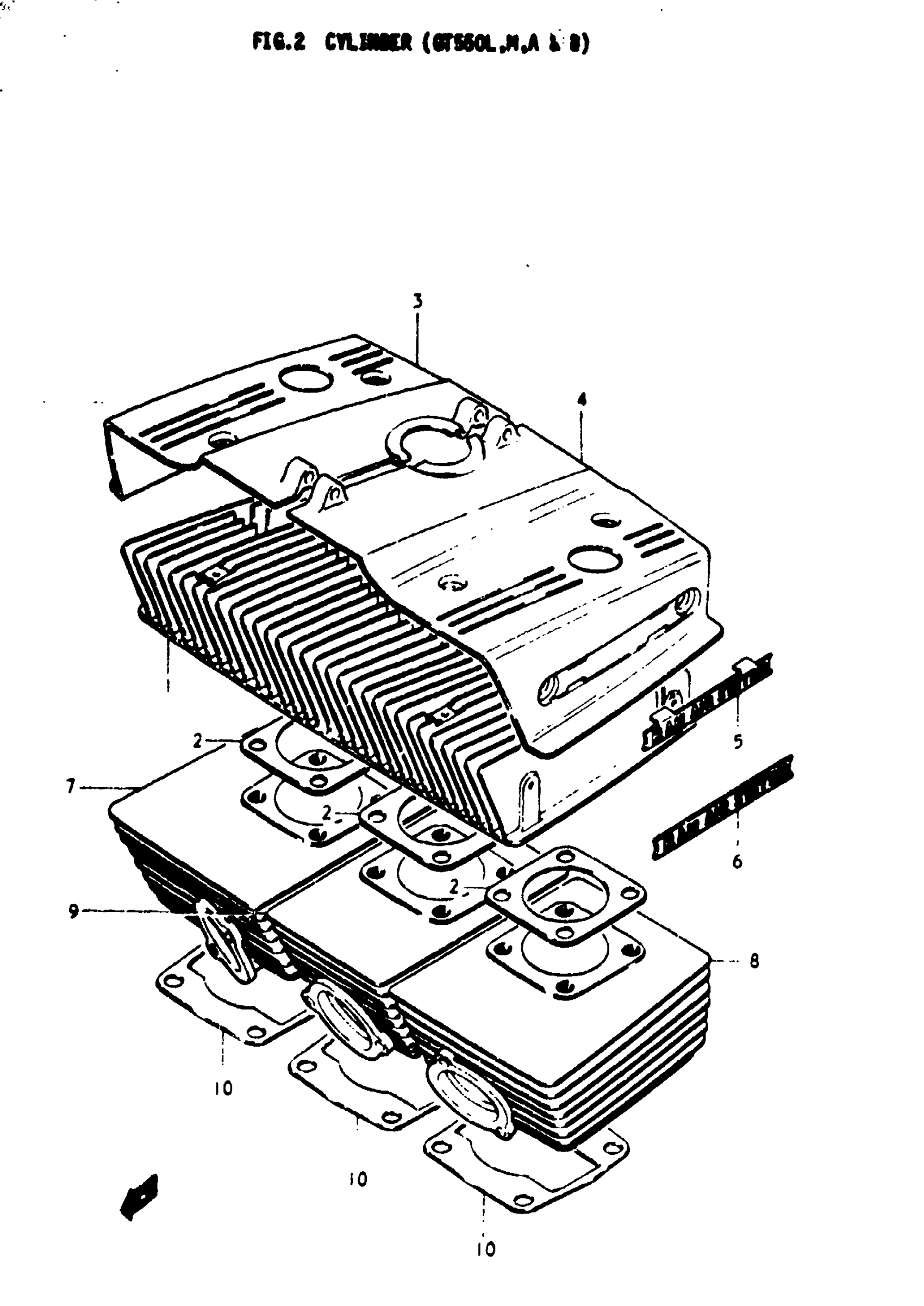

Suzuki GT550 (1977) CYLINDER (GT550L Diagram

#

Description
Price

1

CYLINDER HEAD | L,M; TO 11111-34101 This part replaces 11111-34100.

11111-34101

Unavailable

1

CYLINDER HEAD | M,A,B

11111-34101

Unavailable

2

GASKET,CYLINDER | L,M,A,B This part replaces 11141-34010.

11141-340V0

Unavailable

3

COVER, CYLINDER HEAD RH | L,M This part replaces 11171-34100.

11171-34101

Unavailable

3

COVER, CYLINDER HEAD RH | A,B

11171-34101

Unavailable

4

COVER, CYLINDER HEAD LH | L,M

11172-34100

Unavailable

4

COVER, CYLINDER HEAD LH | A,B

11172-34101

Unavailable

5

EMBLEM (RAM AIR SYSTEM) | L,M; TO 68261-33101 This part replaces 68261-33100.

68261-33101

Unavailable

6

EMBLEM (RAM AIR SYSTEM) | A,B; TACK TYPE

68261-33101

Unavailable

7

CYLINDER, RH | L,M,A,B

11210-34100

Unavailable

8

CYLINDER, LH | L,M,A,B

11220-34100

Unavailable

9

CYLINDER, MIDDLE | L,M,A,B

11230-34100

Unavailable

10

GASKET,CYLINDER | L,M,A,B This part replaces 11241-34600.

11241-34601

$8.93
