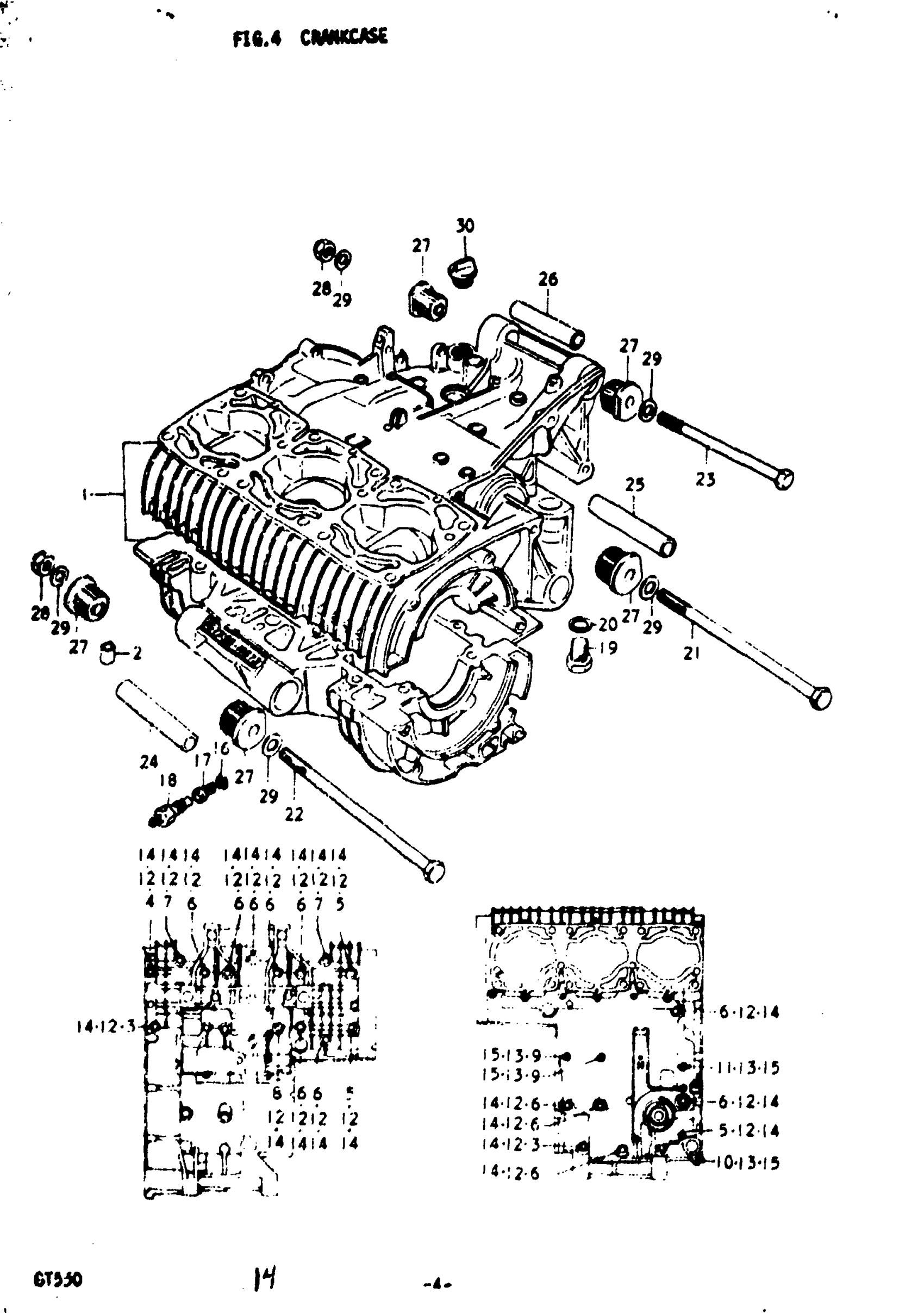

Suzuki GT550 (1977) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | K; TO 11300-34815

11304-34801

Unavailable

1

CRANKCASE SET | L; TO 11300-34860 This part replaces 11300-34815.

11300-34861

Unavailable

1

CRANKCASE SET | M; TO 11300-34861 SEE NOTE 1. This part replaces 11300-34860.

11300-34861

Unavailable

1

CRANKCASE SET | M,A,B; Includes Item(s) 2 - 18

11300-34861

Unavailable

2

PIN | K,L,M,A,B; 10.4x13x18 This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT | K,L,M,A,B; 8x105 This part replaces 09100-08024.

09100-08228

$7.02

4

BOLT | K,L,M,A,B This part replaces 01122-08908.

01500-0890B

$3.88

5

BOLT | K,L,M,A,B This part replaces 01122-08758.

01500-0875B

$4.10

6

BOLT | K,L,M,A,B This part replaces 01122-08658.

01500-0865B

$3.49

7

BOLT | K,L,M,A,B This part replaces 01122-08458.

01500-08453

$2.50

8

BOLT | K,L,M,A,B; 8x35 This part replaces 09106-08004.

07130-0835B

$4.60

9

NO DESCRIPTION AVAILABLE | K,L,M,A,B This part replaces 01112-06758.

01500-06753

Unavailable

10

BOLT | K,L,M,A,B This part replaces 01112-06508.

01500-06507

$3.03

11

BOLT | K,L,M,A,B This part replaces 01112-06808.

01500-0685B

$3.85

12

WASHER | K,L,M,A,B This part replaces 08322-11088.

08322-01087

$2.13

13

WASHER | K,L,M,A,B This part replaces 08322-21068.

08322-01067

$2.13

14

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

15

LOCK WASHER | K,L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

16

GASKET (8.2X14X1) | K,L,M,A,B; 8.5x14x1 FROM 09168-08005 This part replaces 09168-08008.

09168-08016

$1.65

17

STRAINER, SRIS | K,L,M,A,B

16521-31010

Unavailable

18

CHECK VALVE, SRIS | K,L,M,A,B

16710-31012

Unavailable

19

PLUG, DRAIN | K,L; TO 09247-14007 This part replaces 09247-14010.

09247-14025

$2.79

19

PLUG, DRAIN | M,A,B This part replaces 09247-14007.

09247-14025

$2.79

20

GASKET | K,L,M,A,B

09168-14004

$1.83

21

BOLT | K,L,M,A,B; 10x245

09100-10081

Unavailable

22

BOLT | K,L,M,A,B; 10x175

09100-10080

Unavailable

23

BOLT 0.1X185 | K,L,M,A,B; 10x185 This part replaces 09100-10073.

09100-10267

$12.22

24

SPACER | K,L,M,A,B; 12.2x16x92

09180-10035

Unavailable

25

SPACER | K,L,M,A,B; 10.2x16x164

09180-10032

Unavailable

26

SPACER | K,L,M,A,B; 10.2x16x107

09180-10030

Unavailable

27

BUSH | K,L,M,A,B This part replaces 09319-10015.

09319-10084

Unavailable

28

NUT | K,L,M; TO 09159-10011

09159-10001

Unavailable

28

NUT | A,B

09159-10011

$3.23

29

WASHER | KL,M,A,B This part replaces 08322-11108.

08322-01107

$2.15

30

PLUG SET | K,L,M,A,B This part replaces 09259-20003.

09200-20811

$4.02
