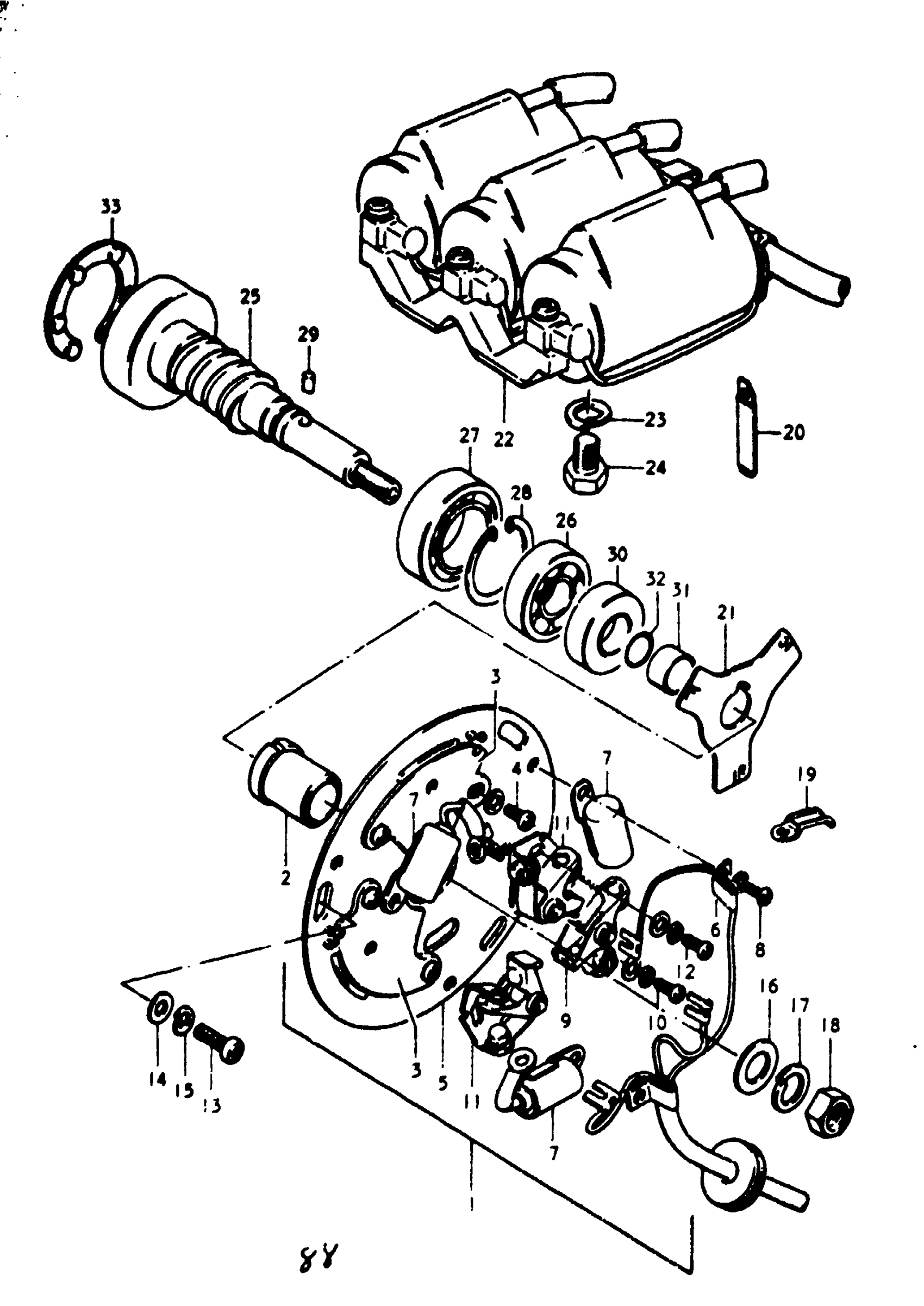

Suzuki GT550 (1977) CONTACT BREAKER (NIPPON DENSO) Diagram

#

Description
Price

1

BREANER ASSY, CONTACT | K,L,M,A,B; Includes Item(s) 2 - 12

33100-34010

Unavailable

2

CAM | K,L,M,A,B

33310-34010

Unavailable

3

PLATE, CONTACT POINT SHIFTING | K,L,M,A,B

31443-34010

Unavailable

4

SCREW | K,L,M,A,B This part replaces 02111-04067.

02112-0406B

$1.55

5

STATOR ASSY, BREAKER | K,L,M,A,B

33101-34010

Unavailable

6

CLAMP, LEAD WIRE | K,L,M,A,B

32371-31010

Unavailable

7

CONDENSER | K,L,M,A,B This part replaces 32341-31010.

33261-33010

Unavailable

8

SCREW 4X40 | K,L,M,A,B This part replaces 02111-04048.

02112-04047

$1.49

9

POINT ASSY | K,L,M,A,B

33160-31010

Unavailable

10

SCREW | K,L,M,A,B This part replaces 02111-04067.

02112-0406B

$1.55

11

POINT ASSY | K,L,M,A,B

33170-31010

Unavailable

12

SCREW | K,L,M,A,B This part replaces 02111-04067.

02112-0406B

$1.55

13

SCREW | K,L,M,A,B

09125-05024

$1.72

14

WASHER | K,L,M,A,B This part replaces 08322-11058.

08322-01057

$2.13

15

LOCK WASHER | K,L,M This part replaces 08321-21058.

08321-0105A

$1.84

16

WASHER | K,L,M,A,B This part replaces 08322-11108.

08322-01107

$2.15

17

LOCK WASHER | K,L,M,A,B This part replaces 08321-21108.

08321-01107

$1.84

18

NUT | K,L,M,A,B This part replaces 08312-12108.

08310-00107

$2.19

19

CLAMP | K,L,M,A,B This part replaces 09403-07301.

09403-07309

Unavailable

20

CLAMP | K,L,M,A,B

09403-00085

Unavailable

21

PLATE, IGNITION TIMING | K,L,M,A,B

33370-34000

Unavailable

22

COIL ASSY, IGNLTION | K,L,M,A,B

33410-31010

Unavailable

23

.LOCK WASHER | K,L,M This part replaces 08321-21088.

08321-01087

$2.13

24

BOLT | K,L,M,A,B This part replaces 01122-08128.

01500-08127

$2.62

25

SHAFT, BREAKER CAM | K,L,M; TO 12554-34000

12710-34000

Unavailable

25

SHAFT, BREAKER CAM | A,B

12554-34000

Unavailable

26

BEARING (15X42X13) | K,L,M,A,B This part replaces 08110-63020.

09262-15027

$23.39

27

BEARING (25X47X8) | K,L,M,A,B This part replaces 09262-25038.

09262-25006

$25.54

28

CIRCLIP | K,L,M,A,B This part replaces 08331-21429.

08331-41429

$2.41

29

PIN | K,L,M,A,B This part replaces 06211-03052.

04221-03059

$1.72

30

OIL SEAL | K,L,M,A,B

09283-20024

$5.11

31

SPACER | K,L,M,A,B

09180-14006

Unavailable

32

O RING, OIL GALLERY | K,L,M,A,B This part replaces 09280-12005.

09280-12012

$4.64

33

RUBBER, BREAKER CAM SHAFT | K,L,M; TO 12582-34010

12719-34010

Unavailable

33

RUBBER, BREAKER CAM SHAFT | A,B

12582-34010

Unavailable
