Partiron

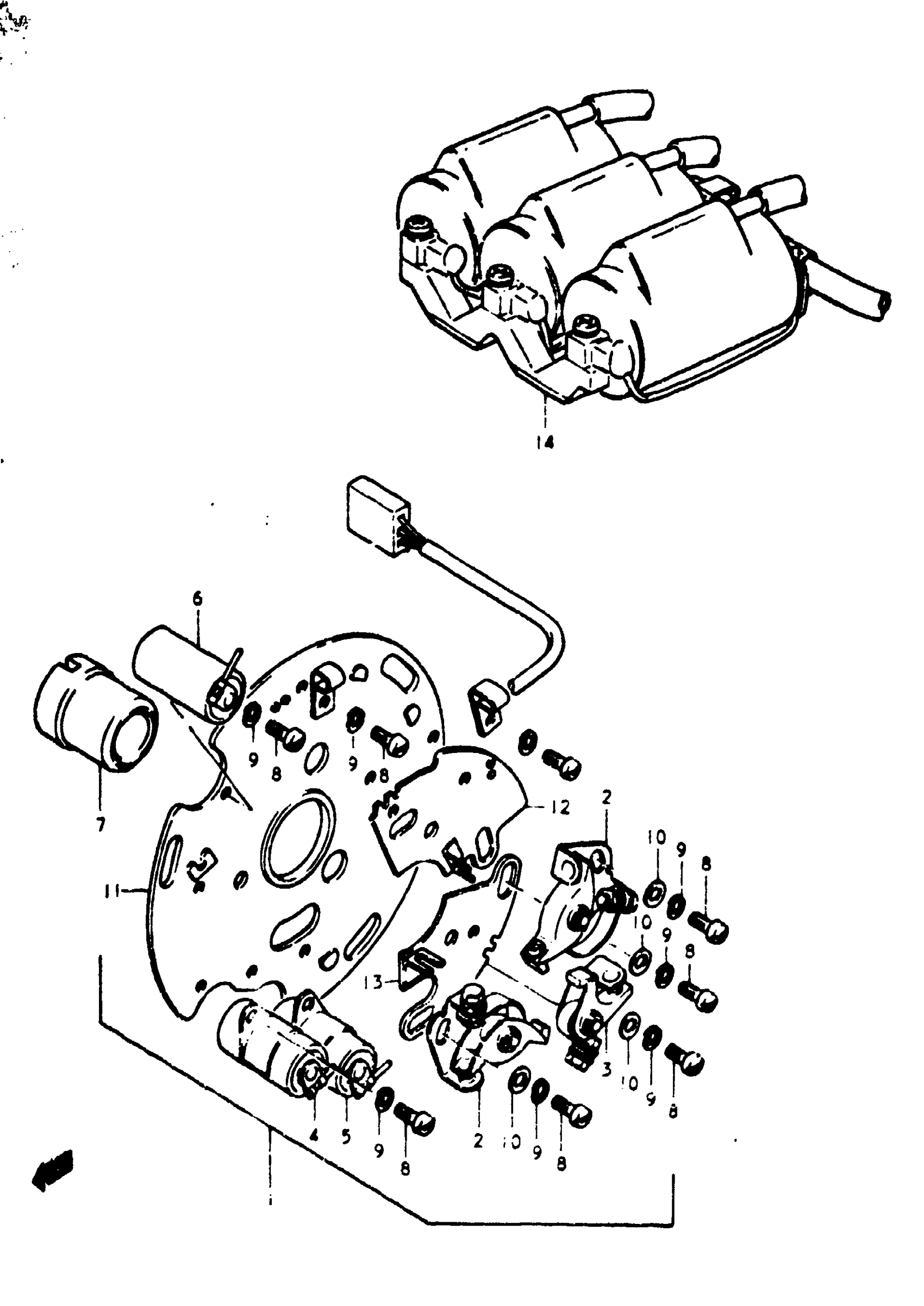

Suzuki GT550 (1977) CONTACT BREAKER (KOKUSAN) Diagram

#

Description
Price

1

BREAKER, CONTACT | K,L,M,A,B; Includes Item(s) 2 - 13

33100-34020

Unavailable

2

POINT ASSY, RH & LH | K,L,M,A,B

33160-34020

Unavailable

3

POINT ASSY, CENTER | K,L,M,A,B

33170-34020

Unavailable

4

CONDENSER, LH | K,L,M,A,B

32341-34020

Unavailable

5

CONDENSER, CENTER | K,L,M,A,B

32342-34020

Unavailable

6

CONDENSER, RH | K,L,M,A,B

32343-34020

Unavailable

7

CAM, CONTACT BREAKER | K,L,M,A,B

33310-34020

Unavailable

8

SCREW | K,L,M,A,B This part replaces 02111-04067.

02112-0406B

$1.55

9

LOCK WASHER | K,L,M,A,B This part replaces 08321-21048.

08321-0104A

$1.84

10

WASHER | K,L,M,A,B This part replaces 08322-21048.

08322-01047

$1.86

11

POINT BASE | K,L,M,A,B

33101-34020

Unavailable

12

PLATE, CONTACT POINT SHIFTING | K,L,M,A,BK,L,M,A,B

31443-34020

Unavailable

13

PLATE, CONTACT POINT SHIFTING | K,L,M,A,BK,L,M,A,B

31444-34020

Unavailable

14

COIL ASSY, IGNITION | K,L,M

33410-33020

Unavailable
