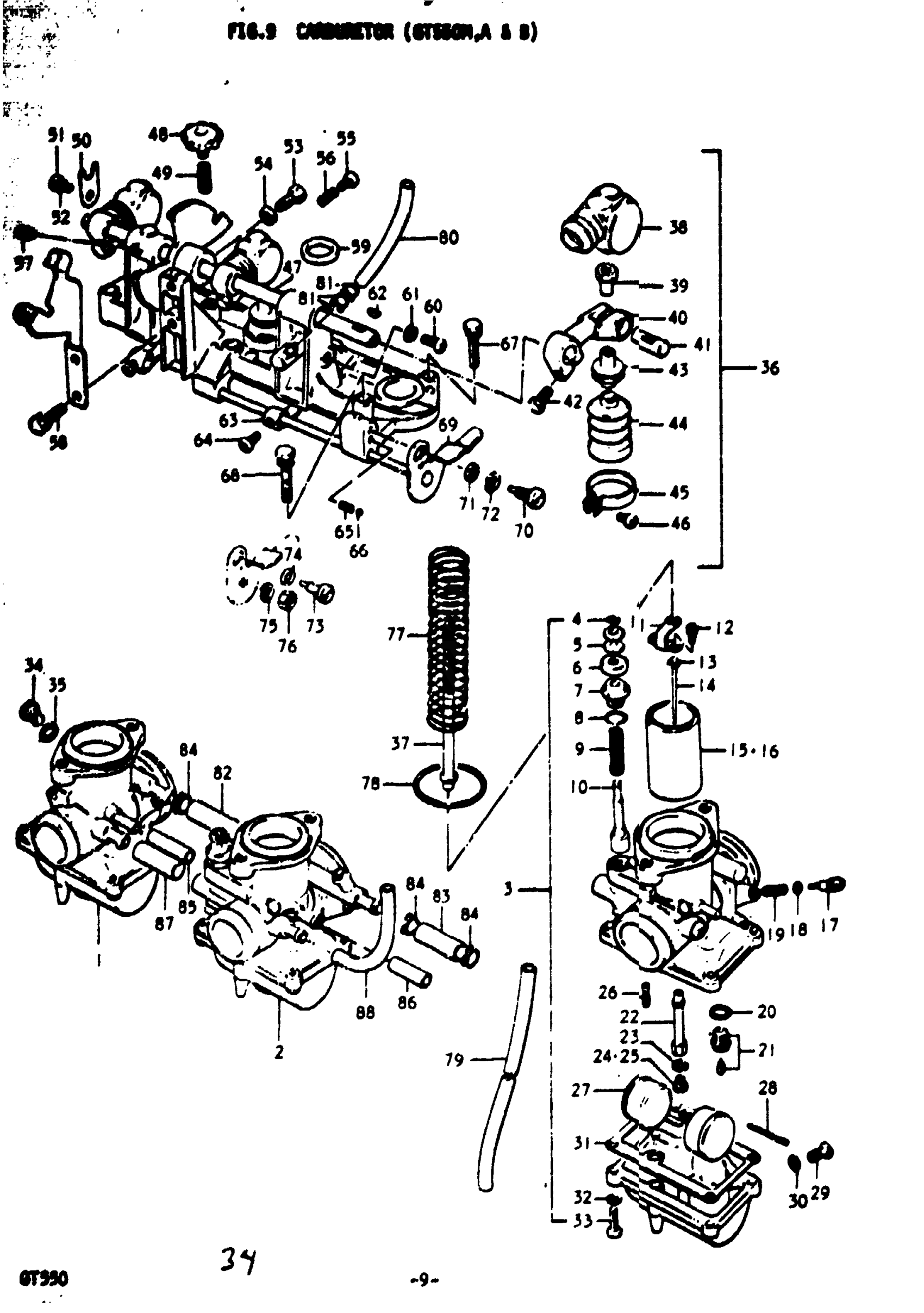

Suzuki GT550 (1977) CARBURETOR (GT55OL Diagram

#

Description
Price

0

CARBURETOR ASSY | FROM 13200-34110; Includes Item(s) 1 - 88

13200-34111

Unavailable

1

CARBURETOR ASSY, RH | FROM 13201-34110

13201-34111

Unavailable

2

CARBURETOR ASSY, MIDDLE | FROM 13202-34110

13202-34111

Unavailable

3

CARBURETOR ASSY, LH | FROM 13203-34110

13203-34111

Unavailable

4

CLIP

13617-33110

Unavailable

5

BUSH

13424-33110

$5.44

6

RUBBER

13682-09210

$2.92

7

CAP

13418-33110

Unavailable

8

O RING This part replaces 13295-15010.

09280-08014

$1.89

9

SPRING

13417-18630

$6.00

10

VALVE

13411-33110

Unavailable

11

BRACKET

13398-33110

Unavailable

12

SCREW | L,M,AB This part replaces 02111-03067.

02112-0306B

$1.59

13

CLIP

13394-10010

$5.45

14

NEEDLE, JET | 5DH21-4

13383-34011

Unavailable

15

VALVE, THROTTLE MIDDLE / LH | CA:2.3

13561-34110

Unavailable

16

VALVE, THROTTLE RH | CA:2.5

13551-34110

Unavailable

17

SCREW | L,M,A; TO 13269-13011

13269-31011

Unavailable

17

SCREW

13269-15011

Unavailable

18

O RING, AIR PILOT

13295-33010

$4.48

19

SPRING

13268-01010

$5.28

20

GASKET

13392-58600

$1.82

21

VALVE ASSY, NEEDLE This part replaces 13370-34010.

13370-30651

Unavailable

22

JET, NEEDLE | L; 0-8

09494-00116

Unavailable

22

JET, NEEDLE | M,A,B; P-0

09494-00142

Unavailable

23

WASHER | L,A,B

13382-03110

$2.80

24

JET, MAIN (97.5) | #97.5 This part replaces 09491-97001.

09491-97003

$11.38

25

JET, MAIN (95) | #95 This part replaces 09491-95003.

09491-95005

$11.55

26

JET, PILOT (25) | #25 This part replaces 09492-25003.

09492-25005

$9.55

27

FLOAT

13252-11010

$24.87

28

.PIN, FLOAT

13254-01010

$3.62

29

SCREW | L,M,A; TO 13247-05010

13247-31010

Unavailable

29

SCREW

13247-05010

$5.11

30

GASKET

13249-05010

$1.98

31

GASKET | FROM 13251-18010

13251-33110

$9.03

32

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

33

SCREW This part replaces 02111-04168.

02112-0416A

$1.49

34

SCREW | L,M,A; TO 13664-18654

13664-31010

Unavailable

34

SCREW

13664-18654

$8.98

35

WASHER

13663-31010

$2.80

36

CONTROL ASSY, CARBURETOR | FROM 13210-34110

13210-34111

Unavailable

37

SHAFT

13552-33110

Unavailable

38

BOOT

13583-33110

Unavailable

39

NUT

13582-33600

Unavailable

40

ARM

13564-33110

Unavailable

41

PIN

13563-33110

Unavailable

42

BOLT, ARM

13611-33600

Unavailable

43

NUT

13582-33110

Unavailable

44

BOOT

13584-33110

Unavailable

45

CLIP

13619-33110

Unavailable

46

SCREW This part replaces 02111-03087.

02112-0308A

$1.80

47

SHAFT, CONTROL

13550-34110

Unavailable

48

ADJUSTER

13267-33110

Unavailable

49

SPRING, ADJUSTER

13268-33110

Unavailable

50

PLATE

13557-33110

Unavailable

51

SCREW This part replaces 02111-04127.

02112-0412A

$1.49

52

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

53

FRM CVR,SCREW(6 This part replaces 13612-33110.

09128-06092

$1.92

54

NUT | L,MA,B

13607-31600

Unavailable

55

SCREW

13605-34110

Unavailable

56

SPRING

13268-31210

$5.33

57

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.68

58

BOLT, BRACKET

13611-33610

Unavailable

59

RUBBER

13625-33110

Unavailable

60

SCREW This part replaces 02112-05088.

02112-05087

$1.49

61

WASHER | L,M,A

13615-33110

Unavailable

61

FRM CVR,SCREW(6 | B This part replaces 09128-06011.

09128-06092

$1.92

62

KEY

13616-33110

Unavailable

63

LEVER

13422-33110

Unavailable

64

SCREW

13605-31210

$7.37

65

SPRING

13434-33110

Unavailable

66

STEEL BALL

13435-33110

$2.14

67

BOLT, FLANGE

13611-33110

Unavailable

68

BOLT, FLANGE

13611-33620

Unavailable

69

LEVER, STARTER

13410-34600

Unavailable

70

SCREW

13433-33600

Unavailable

71

WASHER

13432-33600

Unavailable

72

LOCK WASHER

13615-33610

Unavailable

73

SCREW | L

13433-33110

Unavailable

74

WASHER | L

13432-33110

$4.43

75

LOCK WASHER | L

13615-33600

Unavailable

76

NUT | L

13607-31600

Unavailable

77

SPRING

13573-31011

Unavailable

78

O RING

13295-33110

Unavailable

79

HOSE | L,M,A; FROM 13683-33640 4x6x280 TO13684-33111

13684-33110

Unavailable

79

HOSE | B; 4.5x6.5

13684-33111

Unavailable

80

HOSE(4.5X8.5X60 | 4.5x8x117 This part replaces 13683-34630.

09355-45001-600

$9.48

81

CLIP This part replaces 13671-33600.

13671-05A40

$3.71

82

HOSE | 6x11.5x68

13683-34610

Unavailable

83

HOSE | 6x11.5x48 This part replaces 13683-34110.

13683-34610

Unavailable

84

CLIP (ID:11) This part replaces 13671-33110.

09401-11403

$2.85

85

HOSE, AIR VENT | FROM 13683-34620 4x6x42

13684-34110

Unavailable

86

HOSE | 6x11.5x38.5 This part replaces 13683-33600.

13683-34610

Unavailable

87

HOSE | FROM 13683-34600 4x6x37 This part replaces 13684-34600.

13684-33111

Unavailable

88

HOSE(4.5X8.5X60 | 45x8x75 This part replaces 13683-33650.

09355-45001-600

$9.48
