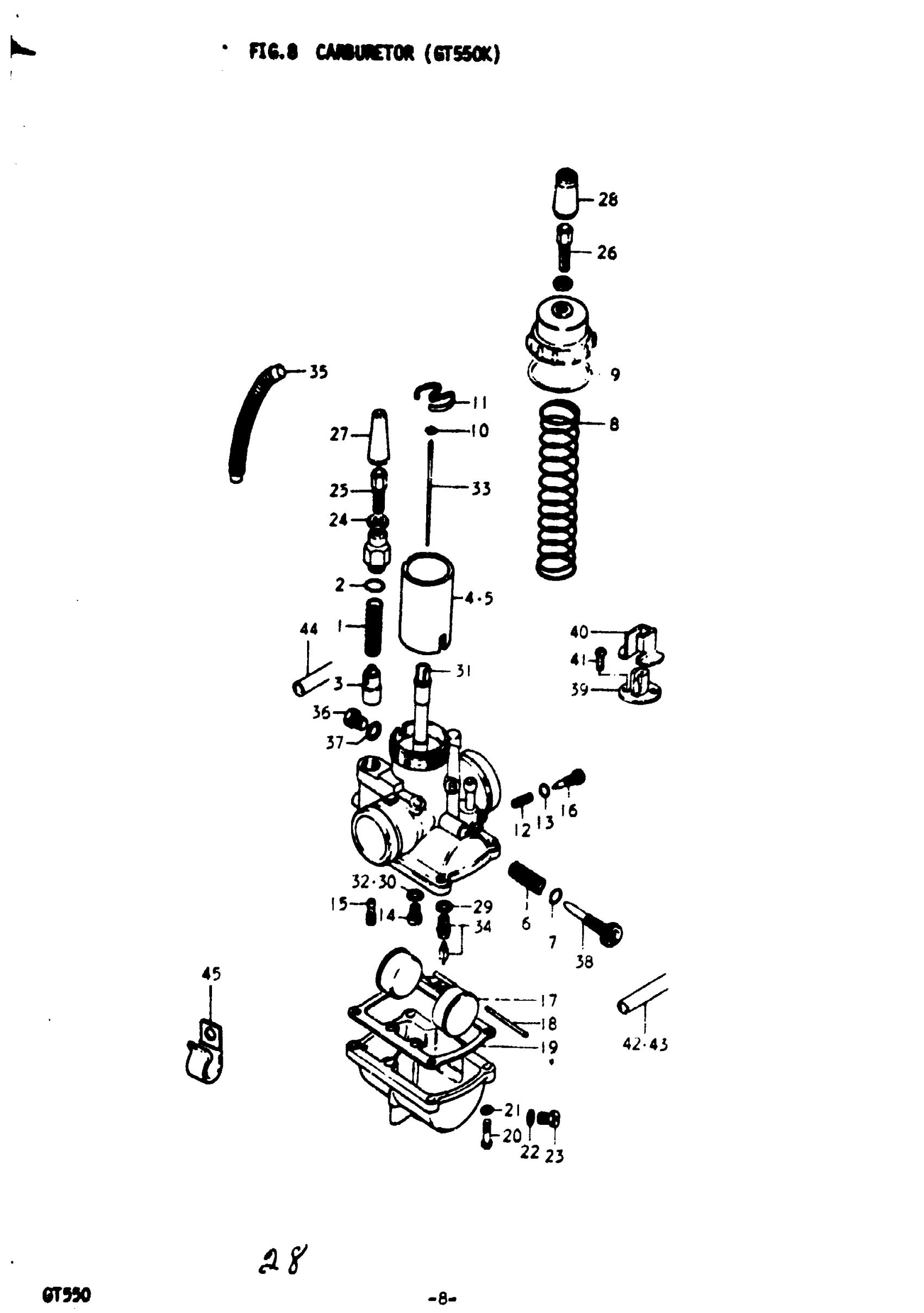

Suzuki GT550 (1977) CARBURETOR (GT55OK) Diagram

#

Description
Price

0

CARBURETOR ASSY, RH

13201-34015

Unavailable

0

CARBURETOR ASSY, MIDDLE

13202-34015

Unavailable

0

CARBURETOR ASSY, LH | Includes Item(s) 1 - 41

13203-34015

Unavailable

1

SPRING, STARTER VALVE

13417-18630

$6.00

2

O RING, STARTER VALVE | ~F.NO.30715

13295-34010

Unavailable

2

O RING, STARTER VALVE

13420-20010

Unavailable

3

VALVE, STARTER

13411-01010

$18.43

4

VALVE, STARTER | ~F.NO.30715

13561-34011

Unavailable

4

VALVE, THROTTLE LH

13561-34012

Unavailable

5

VALVE, THROTTLE MIDDLE & RH | ~F.NO.30715

13551-34011

Unavailable

5

VALVE, THROTTLE MIDDLE & RH

13551-34012

Unavailable

6

SPRING, STOP SCREW This part replaces 13268-31010.

13268-03110

$5.45

7

O RING This part replaces 13294-30010.

13278-02340

$1.91

8

SPRING, THROTTLE | ~F.NO.30715

13573-34010

Unavailable

8

SPRING, THROTTLE RETURN

13573-34011

Unavailable

9

O RING, MIXING CHAMBER TOP

13295-34600

Unavailable

10

CLIP, NEEDLE

13394-10010

$5.45

11

SEAT, THROTTLE VALVE SPRING

13581-28010

$7.95

12

SPRING, PILOT AIR SCREW

13268-01010

$5.28

13

O RING, PILOT AIR SCREW

13295-33010

$4.48

14

JET, MAIN (92.5) | #92.5 This part replaces 09491-92001.

09491-92004

$9.69

14

JET, MAIN (95) This part replaces 09491-95003.

09491-95005

$11.55

15

JET, PILOT (27.5) | #27.5 ~F.NO.30715 This part replaces 09492-27001.

09492-27003

$11.68

15

JET, PILOT (25) | #25 This part replaces 09492-25003.

09492-25005

$9.55

16

SCREW, PILOT AIR ADJUSTING This part replaces 13269-31010.

13269-15010

Unavailable

17

FLOAT

13252-11010

$24.87

18

.PIN, FLOAT

13254-01010

$3.62

19

GASKET, FLOAT CHAMBER | ~F.NO.30715

13251-11010

$5.62

19

GASKET, FLOAT CHAMBER | FROM 13251-18010

13251-33110

$9.03

20

SCREW This part replaces 02111-04168.

02112-0416A

$1.49

21

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

22

GASKET, DRAIN PLUG

13249-05010

$1.98

23

PLUG, DRAIN

13247-05010

$5.11

24

NUT, CABLE ADJUSTER

13661-16600

$4.64

24

NUT, CABLE ADJUSTER

13661-31010

Unavailable

25

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

26

ADJUSTER, CABLE

13577-31010

Unavailable

27

BOOT, CABLE ADJUSTER | TO 13681-16601

13681-16600

$3.77

28

BOOT, CABLE ADJUSTER

13681-31010

Unavailable

29

GASKET, VALVE SEAT

13392-58600

$1.82

30

WASHER, NEEDLE JET

13382-03110

$2.80

31

JET, NEEDLE | 0-5 ~F.NO.30715

09494-00105

Unavailable

31

JET, NEEDLE | 0-8

09494-00116

Unavailable

32

SETTER, NEEDLE JET

13330-34010

Unavailable

33

NEEDLE, JET | 5DH21-3

13383-34011

Unavailable

34

VALVE, NEEDLE

13370-18111

$52.32

35

HOSE, MIDDLE CARBORETOR BOOST | L:150

44390-15050

Unavailable

36

PLUG, ADJUSTING HOLE | TO 13664-18654

13664-31010

Unavailable

36

PLUG, ADJUSTING HOLE

13664-18654

$8.98

37

GASKET This part replaces 13392-04010.

13663-31010

$2.80

38

ADJUSTER, THROTTLE VALVE

13267-34011

Unavailable

39

HOLDER, JET NEEDLE This part replaces 13398-34010.

13581-40200

Unavailable

40

COVER

13394-34010

Unavailable

41

SCREW This part replaces 13399-34010.

02112-3308A

$2.23

42

HOSE, OVER FLOW | 3x5x250

09344-03010

Unavailable

43

HOSE, OVER FLOW | 3x5x270

09344-03021

Unavailable

44

HOSE, OVER FLOW | 3x5x190

09344-03017

Unavailable

45

CLAMP | TO 09404-08404

09403-00087

Unavailable
