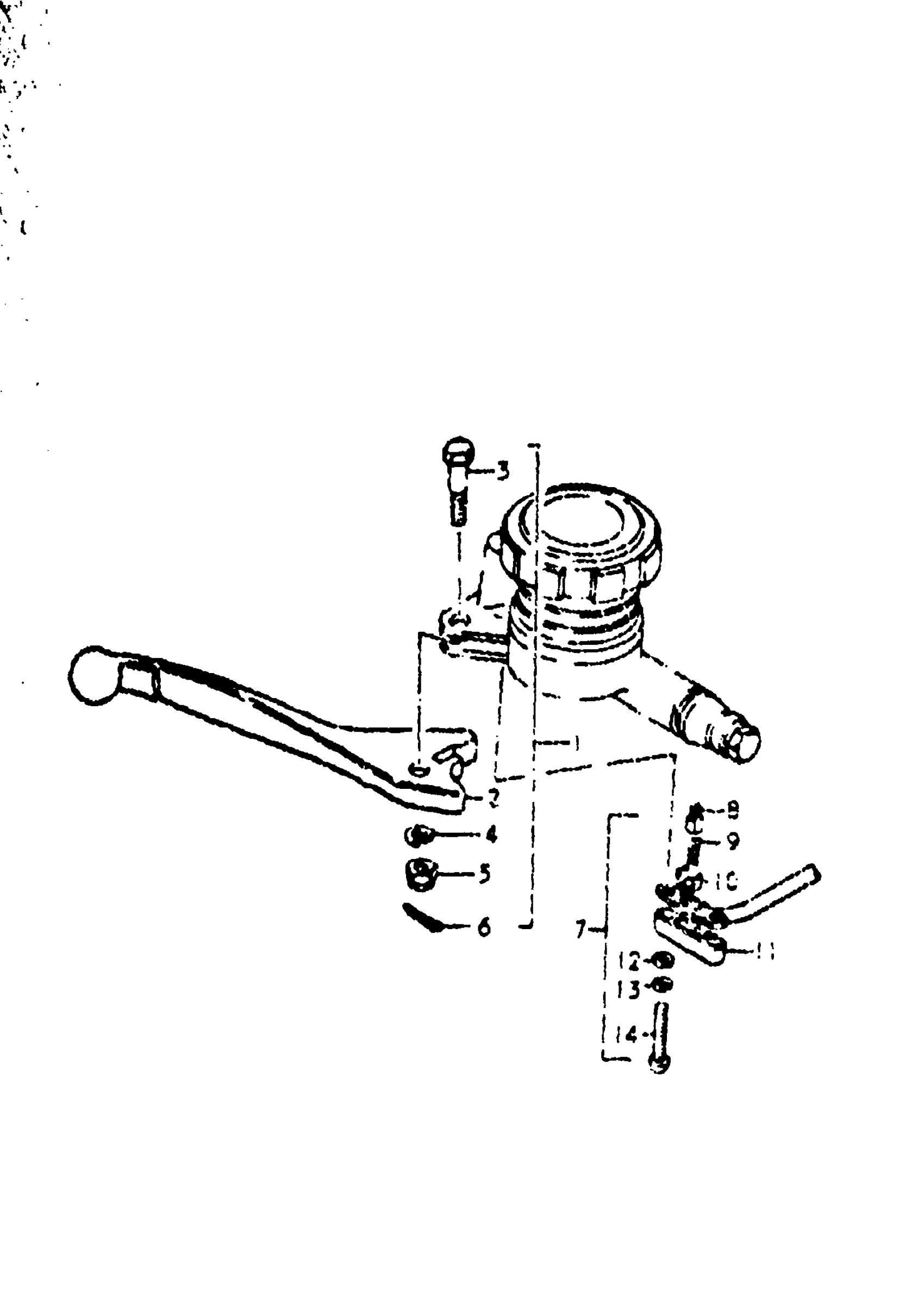

Suzuki GT550 (1977) BRAKE LEVER Diagram

#

Description
Price

1

LEVER ASSY, BRAKE | K,L; TO 57300-18621

57300-18620

Unavailable

1

LEVER ASSY, BRAKE | M,A,B; Includes Item(s) 2 - 6 This part replaces 57300-18621.

57300-45010

Unavailable

2

LEVER, BRAKE | K,L,M,A This part replaces 57420-18620.

57420-45010

Unavailable

2

LEVER, BRAKE | B This part replaces 57420-33010.

57420-18602

Unavailable

3

BOLT This part replaces 57431-18620.

57431-18621

$8.28

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

NUT

57433-11010

$5.64

6

COTTER PIN

04111-16156

Unavailable

7

SWITCH ASSY, STOP | K,L; TO 57460-33700

57460-18600

Unavailable

7

SWITCH ASSY, STOP | M; TO 57460-33700

57460-33011

Unavailable

7

SWITCH ASSY, STOP | M,A,B; Includes Item(s) 8 - 14

57460-33700

$43.37

8

HOLDER This part replaces 57461-18600.

57465-18601

$4.34

9

HOLDER This part replaces 57462-18600.

57465-18601

$4.34

10

HOLDER This part replaces 57463-18600.

57465-18601

$4.34

11

COVER | K; TO 57481-33010 This part replaces 57481-18600.

57481-33010

$5.84

11

COVER, TERMINAL BASE | L,M,A,B

57481-33010

$5.84

12

WASHER This part replaces 08322-21038.

08322-01037

$1.93

13

WASHER,LOCK | K,L,M This part replaces 08321-21038.

09162-03001

$1.49

14

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23
