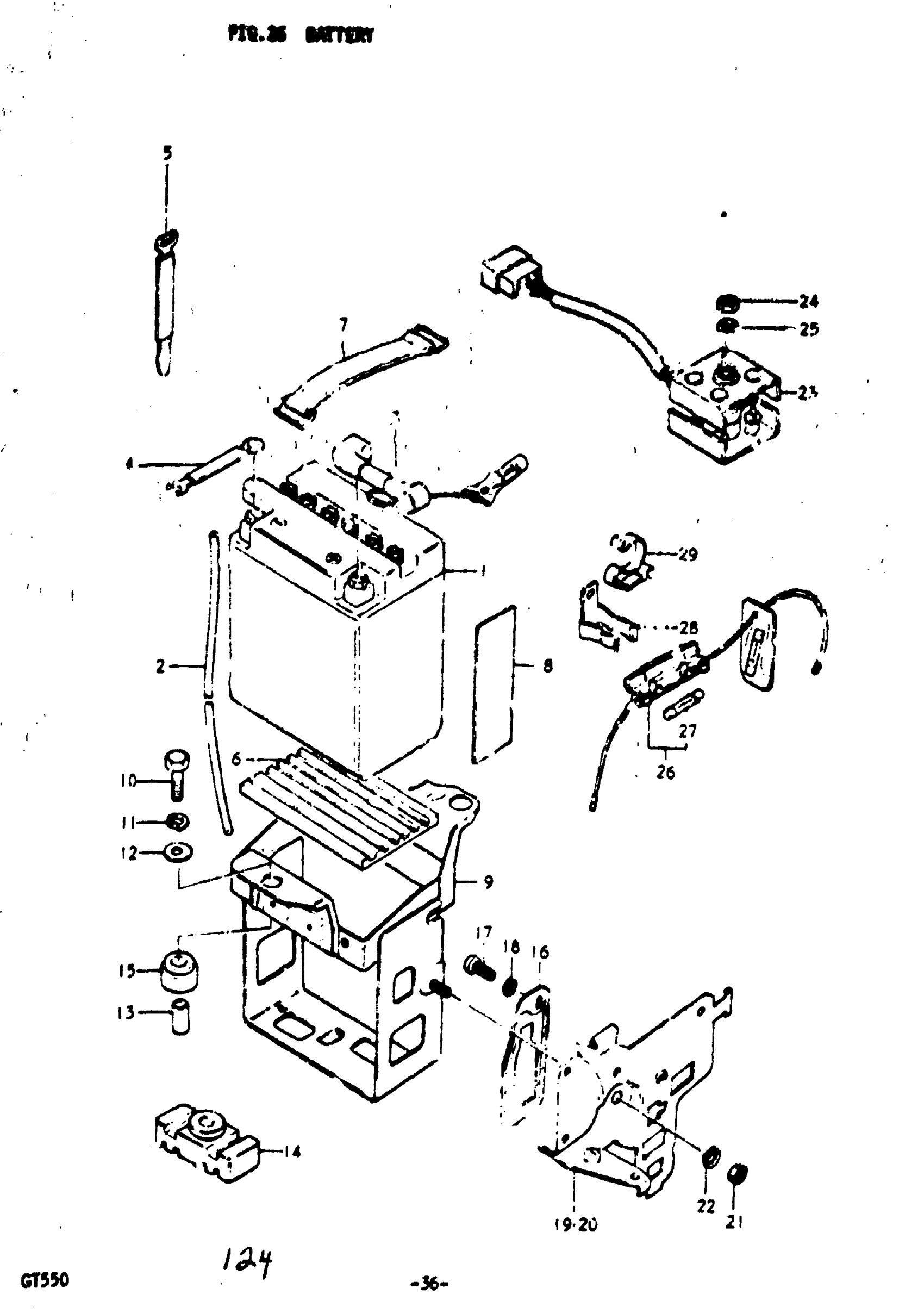

Suzuki GT550 (1977) BATTERY Diagram

#

Description
Price

1

BATTERY | K,L,M,A,B; 12V, 11AH

33610-34010

Unavailable

2

HOSE,BATTERY EX | K; TO 33680-31002 This part replaces 33680-34000.

33680-16A11

$6.78

2

TUBE, BATTERY EXHAUST | L,M; TO 33680-31003

33680-31002

Unavailable

2

HOSE,BATTERY EX | A,B This part replaces 33680-31003.

33680-16A11

$6.78

3

WIRE, BATTERY LEAD (+) | K,L,M,A,B

36861-31001

Unavailable

4

WIRE, BATTERY LEAD (-) | K,L

36864-34000

Unavailable

4

WIRE, BATTERY LEAD (-) | M,A,B

36864-34001

Unavailable

5

CLAMP | K; L:140L,M,A; L:140B; L:140 This part replaces 09407-14301.

09407-18302

$2.28

5

CLAMP | B; L:180 This part replaces 09407-18301.

09407-18302

$2.28

6

PROTECTOR, BATTERY | K,L,M,A,B

33651-31000

$18.02

7

BAND | K,L,M,A,B

09462-00034

$4.24

8

PROTECTOR BATTERY | K; 30x802x2K,M; 3x80x2

33652-11000

Unavailable

8

CUSHION, REAR FENDER REAR | M,A,B; 20x90x3 This part replaces 33652-29100.

33651-37000

$4.48

9

HOLDER, BATTERY | K,L,M,A,B

41540-34000

Unavailable

10

BOLT, REAR | K,L,M,A,B This part replaces 01112-06308.

01500-06307

$2.48

11

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

12

WASHER | K,L,M,A,B; 6.3x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

13

SPACER (6.1X8X15.5) | K,L,M,A,B This part replaces 09180-06040.

09180-06251

$2.44

14

CUSHION | KL,M,A,B

09320-08012

Unavailable

15

CUSHION | KL,M,A,B

0320-08011

Unavailable

16

PLATE, COUPLER HOLDER | K,L,M,A,B

37911-54000

Unavailable

17

SCREW | K,L,M,A,B This part replaces 02111-04087.

02112-04087

$1.49

18

LOCK WASHER | K,L,M,A This part replaces 08321-21048.

08321-0104A

$1.84

19

PLATE, ELECTRICAL PART HOLDER | K

37900-34000

Unavailable

20

PLATE, ELECTRICAL PART HOLDER | L,M; TO 32680-04101 This part replaces 32680-34100.

32680-34101

Unavailable

20

PLATE, ELECTRICAL PART HOLDER | M,A,B

32680-34101

Unavailable

21

NUT | K,L,M,A,B

06311-11068

Unavailable

22

LOCK WASHER | K,L,M,A This part replaces 08321-21068.

08321-01067

$2.13

23

RECTIFIER ASSY | K; TO 32800-31021 This part replaces 32800-31020.

32800-31021

Unavailable

23

RECTIFIER | L,M,A,B

32800-31021

Unavailable

24

.NUT | K,L,M,A,B This part replaces 08311-11068.

08310-00067

$2.13

25

LOCK WASHER | K,L,M,A,B This part replaces 08321-21066.

08321-0106A

$1.84

26

CASE ASSY, FUSE | K; TO 36740-31210

36740-31010

Unavailable

26

FUSE CASE ASSY | L,M,A,B; FROM 36710-31210; Includes Item(s) 27 This part replaces 36740-31211.

36740-31212

Unavailable

27

FUSE | K,L,M,A,B

09481-20001

$2.93

28

HOLDER, FUSE CASE | K

36791-25001

Unavailable

29

HOLDER, FUSE CASE | L,M,A,B

36791-33100

Unavailable
