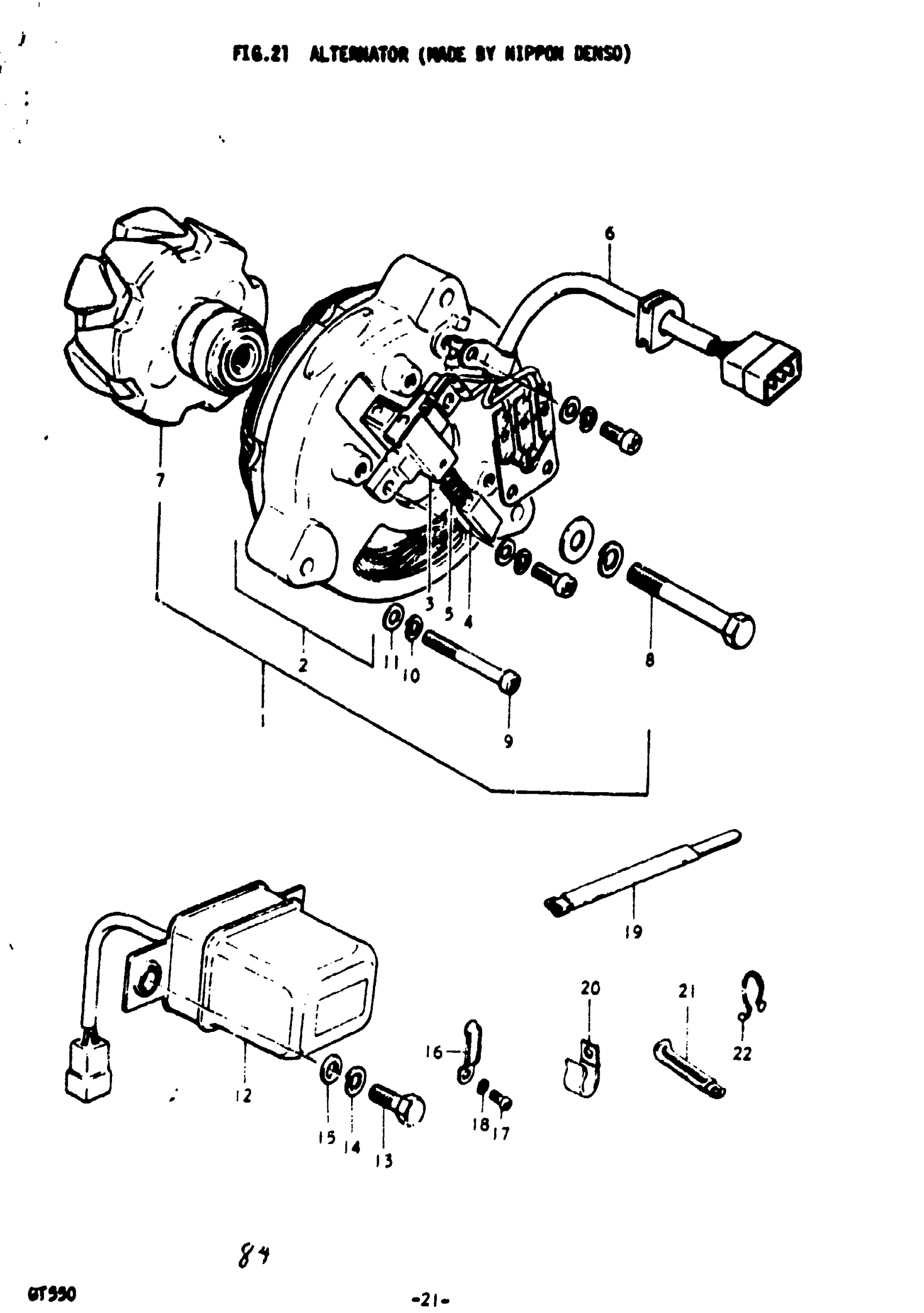

Suzuki GT550 (1977) ALTERNATOR (NIPPON DENSO) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | K This part replaces 31400-33011.

31400-33012

Unavailable

1

ALTERNATOR | L,M,A; TO 31400-33111

31400-33110

Unavailable

1

ALTERNATOR | B; Includes Item(s) 2 - 8

31400-33111

Unavailable

2

STATOR ASSY | K,L,M,A; TO 31401-33013 This part replaces 31401-33012.

31401-33013

Unavailable

2

STATOR | B

31401-33013

Unavailable

3

HOLDER, BRUSH | K,L,M,A; TO 31656-33012 This part replaces 31656-33011.

31656-33012

Unavailable

3

HOLDER, BRUSH | B

31656-33012

Unavailable

4

BRUSH | K,L,M,A,B

31631-31011

Unavailable

5

SPRING | K,L,M,A This part replaces 31635-55011.

31635-55012

Unavailable

5

SPRING | B

31635-55012

Unavailable

6

LEAD WIRE | K,L,M,A,B

31480-33010

Unavailable

7

ROTOR | K,L,M,A,B

31402-33012

Unavailable

8

BOLT | K,L,M,A,B This part replaces 01122-08658.

01500-0865B

$3.49

9

SCREW | K,L,M,A,B This part replaces 02111-05458.

02112-05457

$1.86

10

LOCK WASHER | K,L,M This part replaces 08321-21058.

08321-0105A

$1.84

11

WASHER | K,L,M This part replaces 08322-21058.

08322-01057

$2.13

12

REGULATOR ASSY, VOLTAGE | K,L,M,A,B

32500-31010

Unavailable

13

BOLT, CANISTER | K,L,M,A,B This part replaces 01112-06168.

01500-06167

$1.97

14

LOCK WASHER | K,L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

15

.WASHER | K,L,M,A,B This part replaces 08322-11068.

08322-0106B

$2.26

16

CLAMP | K,L,M,A,B This part replaces 09403-07301.

09403-07309

Unavailable

17

SCREW | K,L,M,A,B This part replaces 02112-06108.

02112-06107

$1.49

18

LOCK WASHER | K,L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

19

CLAMP | K

09407-07301

Unavailable

20

CLAMP | L; TO 09403-00059 This part replaces 09403-09302.

09404-08420

$3.16

21

CLAMP | L,M,A,B This part replaces 09404-08413.

09404-08420

$3.16

22

CLAMP | A,B

09408-00012

$2.13
