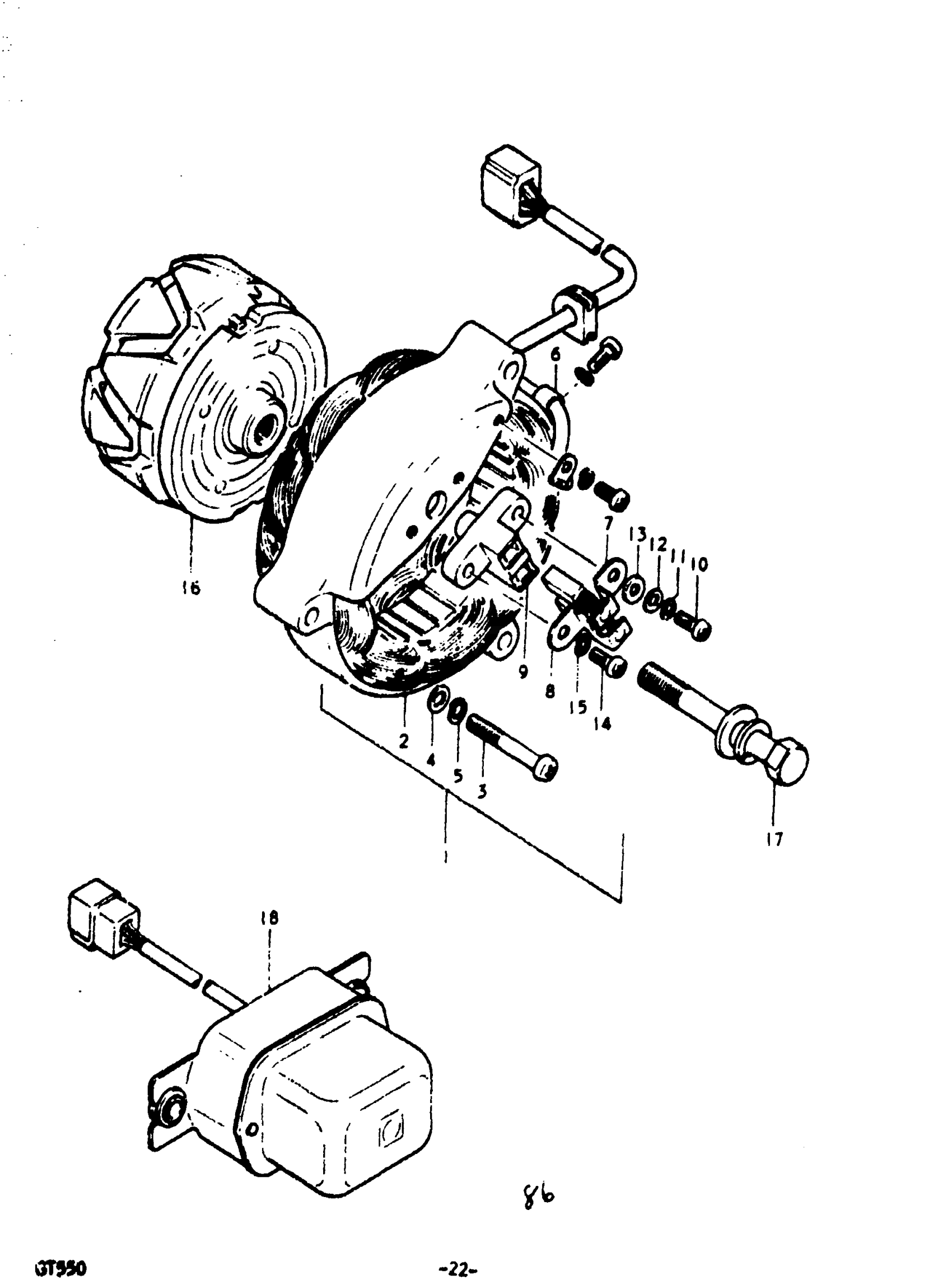

Suzuki GT550 (1977) ALTERNATOR (KOKUSAN) Diagram

#

Description
Price

1

ALTERNATOR ASSY | K,L,M,A,B; Includes Item(s) 2 - 17

31400-33020

Unavailable

2

STATOR | K,L,M,A,B

31401-33020

Unavailable

3

SCREW | K,L,M,A,B

31433-33020

Unavailable

4

WASHER | K,L,M,A This part replaces 08322-11058.

08322-01057

$2.13

5

LOCK WASHER | K,L,M,A This part replaces 08321-21058.

08321-0105A

$1.84

6

CLAMP, LEAD WIRE | K,L,M,A,B

31481-33020

Unavailable

7

BRUSH (+) | K,L,M,A,B

31631-33020

Unavailable

8

BRUSH (-) | K,L,M,A,B

31632-33020

Unavailable

9

HOLDER, BRUSH | K,L,M,A,B

31656-33020

Unavailable

10

SCREW | K,L,M,A,B This part replaces 02111-04168.

02112-0416A

$1.49

11

LOCK WASHER | K,L,M,A,B This part replaces 08321-21048.

08321-0104A

$1.84

12

WASHER | K,L,M,A,B This part replaces 08322-21048.

08322-01047

$1.86

13

INSULATOR, BRUSH HOLDER | K,L,M,A,B

31666-33020

Unavailable

14

SCREW | K,L,M,A,B

02311-04128

Unavailable

15

LOCK WASHER | K,L,M,A,B This part replaces 08321-21048.

08321-0104A

$1.84

16

ROTOR | K,L,M,A,B

31402-33020

Unavailable

17

BOLT | K,L,M,A,B This part replaces 31720-33020.

01500-08507

$3.05

18

REGULATOR ASSY, VOLTAGE | K,L,M,A,B

32500-33020

Unavailable
