Description

Price

1

CLEANER ASSY, AIR | L,M,A

13700-34110

Unavailable

1

CLEANER ASSY, AIR | B; Includes Item(s) 2 - 12

13700-34111

Unavailable

2

FILTER | L,M,A,B

13780-33110

Unavailable

3

FILTER, AIR CLEANER | L,M; TO 13781-33111 This part replaces 13781-33110.

13780-33110

Unavailable

3

FILTER, AIR CLEANER | M,A This part replaces 13781-33111.

13780-33110

Unavailable

4

COVER, AIR CLEANER RH SIDE | L,M,A,B

13771-33110

Unavailable

5

COVER, AIR CLEANER LH SIDE | L,M,A,B

13772-33110

Unavailable

6

PIPE, INLET | L,M,A,B

13722-34110

Unavailable

7

GASKET | L,M,A,B

13742-05110

Unavailable

8

BOLT | L,M,A,B

13726-33110

Unavailable

9

WASHER | L,M,A,B This part replaces 08322-21058.

08322-01057

$2.13

10

PLUG NUT | L,M,A,B

13751-33110

Unavailable

11

LOCK WASHER | L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

12

SCREW | L,M,A,B This part replaces 02112-06258.

02112-06257

$1.78

13

BOLT | L,M,A,B This part replaces 01112-06258.

01500-06257

$1.97

14

WASHER (6.5X20X1.2) | L,M,A,B; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

15

LOCK WASHER | L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

16

HOSE, AIR INLET | L,M; TO 13880-34102 This part replaces 13880-34101.

13880-34102

Unavailable

16

HOSE, CARBURETOR AIR INLET | M,A,B

13880-34102

Unavailable

17

PIPE, INTAKE | L,M,A,B

13111-34100

Unavailable

18

CLAMP | L,M,A; TO 09402-48303 This part replaces 09402-00228.

09402-48208

$4.64

18

CLAMP | B This part replaces 09402-48303.

09402-48208

$4.64

19

SCREW | L,M,A,B This part replaces 02111-04208.

02112-0420A

$1.49

20

CLAMP | L,M,A,B

09402-52306

$4.91

21

CLAMP | L,M,A,B

09402-79401

Unavailable

22

SCREW | L,M,A,B This part replaces 03211-04258.

03211-0425B

$2.70

23

HOSE, OVER FLOW RH | L,M,A;TO 09344-03019 3x5x250

09344-03010

Unavailable

24

HOSE, OVER FLOW MIDDLE | L,M,A; 3x5x190 TO 09344-03019

09344-03017

Unavailable

25

HOSE, OVER FLOW LH | L,M,A; TO 09344-03019 3x5x270

09344-03021

Unavailable

26

HOSE | B This part replaces 09344-03019.

09351-30001-600

$3.57

27

CLAMP | L,M,A; TO 09404-08404

09403-00087

Unavailable

28

CLAMP | L,M,A,B This part replaces 09404-08404.

09404-08420

$3.16

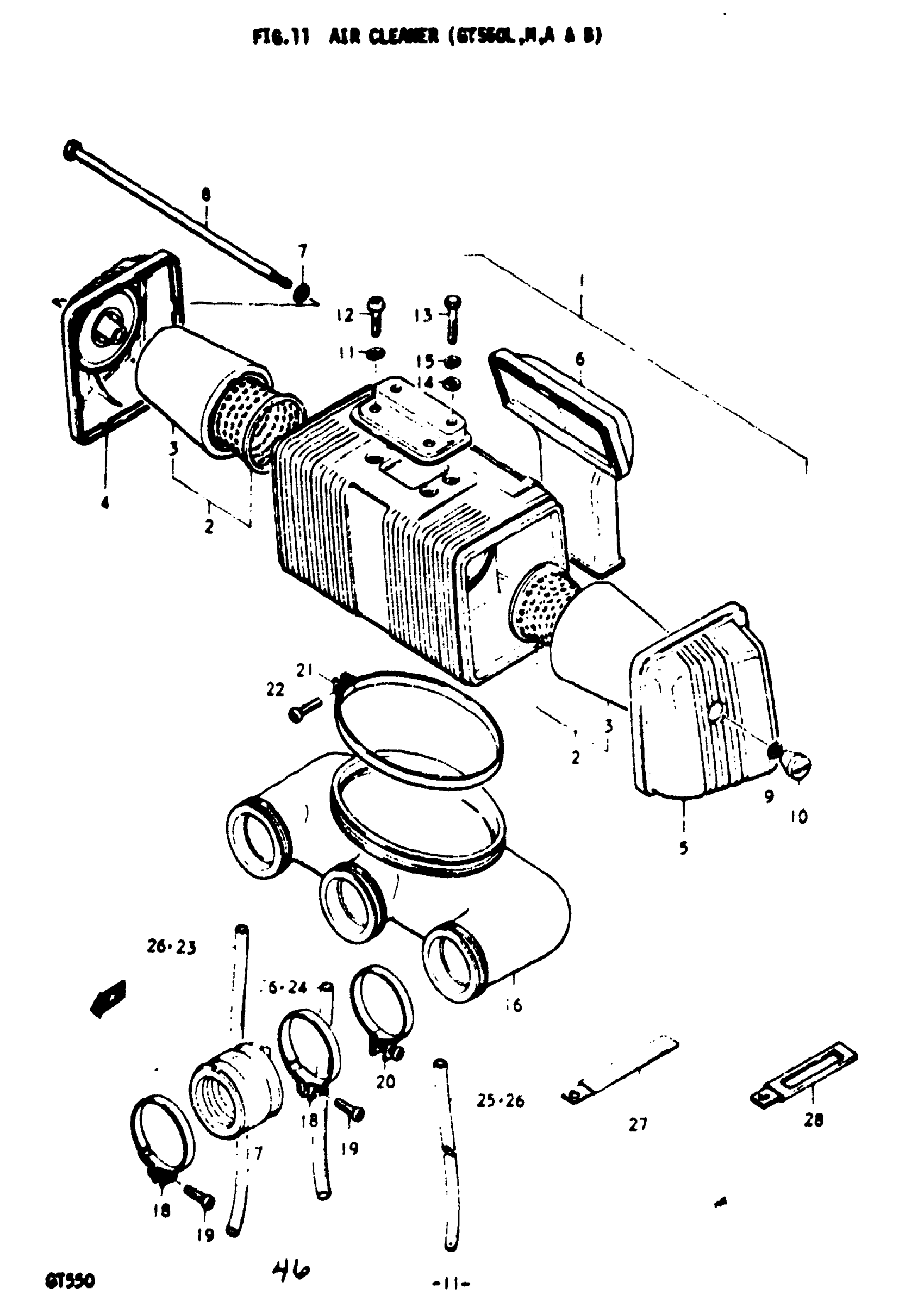

Suzuki GT550 (1977) AIR CLEANER (GT550L Diagram

CLEANER ASSY, AIR | L,M,A

CLEANER ASSY, AIR | B; Includes Item(s) 2 - 12

FILTER | L,M,A,B

FILTER, AIR CLEANER | L,M; TO 13781-33111 This part replaces 13781-33110.

FILTER, AIR CLEANER | M,A This part replaces 13781-33111.

COVER, AIR CLEANER RH SIDE | L,M,A,B

COVER, AIR CLEANER LH SIDE | L,M,A,B

PIPE, INLET | L,M,A,B

GASKET | L,M,A,B

BOLT | L,M,A,B

WASHER | L,M,A,B This part replaces 08322-21058.

PLUG NUT | L,M,A,B

LOCK WASHER | L,M,A,B This part replaces 08321-21068.

SCREW | L,M,A,B This part replaces 02112-06258.

BOLT | L,M,A,B This part replaces 01112-06258.

WASHER (6.5X20X1.2) | L,M,A,B; 6.5x20x1.2 This part replaces 09160-06027.

LOCK WASHER | L,M,A,B This part replaces 08321-21068.

HOSE, AIR INLET | L,M; TO 13880-34102 This part replaces 13880-34101.

HOSE, CARBURETOR AIR INLET | M,A,B

PIPE, INTAKE | L,M,A,B

CLAMP | L,M,A; TO 09402-48303 This part replaces 09402-00228.

CLAMP | B This part replaces 09402-48303.

SCREW | L,M,A,B This part replaces 02111-04208.

CLAMP | L,M,A,B

CLAMP | L,M,A,B

SCREW | L,M,A,B This part replaces 03211-04258.

HOSE, OVER FLOW RH | L,M,A;TO 09344-03019 3x5x250

HOSE, OVER FLOW MIDDLE | L,M,A; 3x5x190 TO 09344-03019

HOSE, OVER FLOW LH | L,M,A; TO 09344-03019 3x5x270

HOSE | B This part replaces 09344-03019.

CLAMP | L,M,A; TO 09404-08404

CLAMP | L,M,A,B This part replaces 09404-08404.
