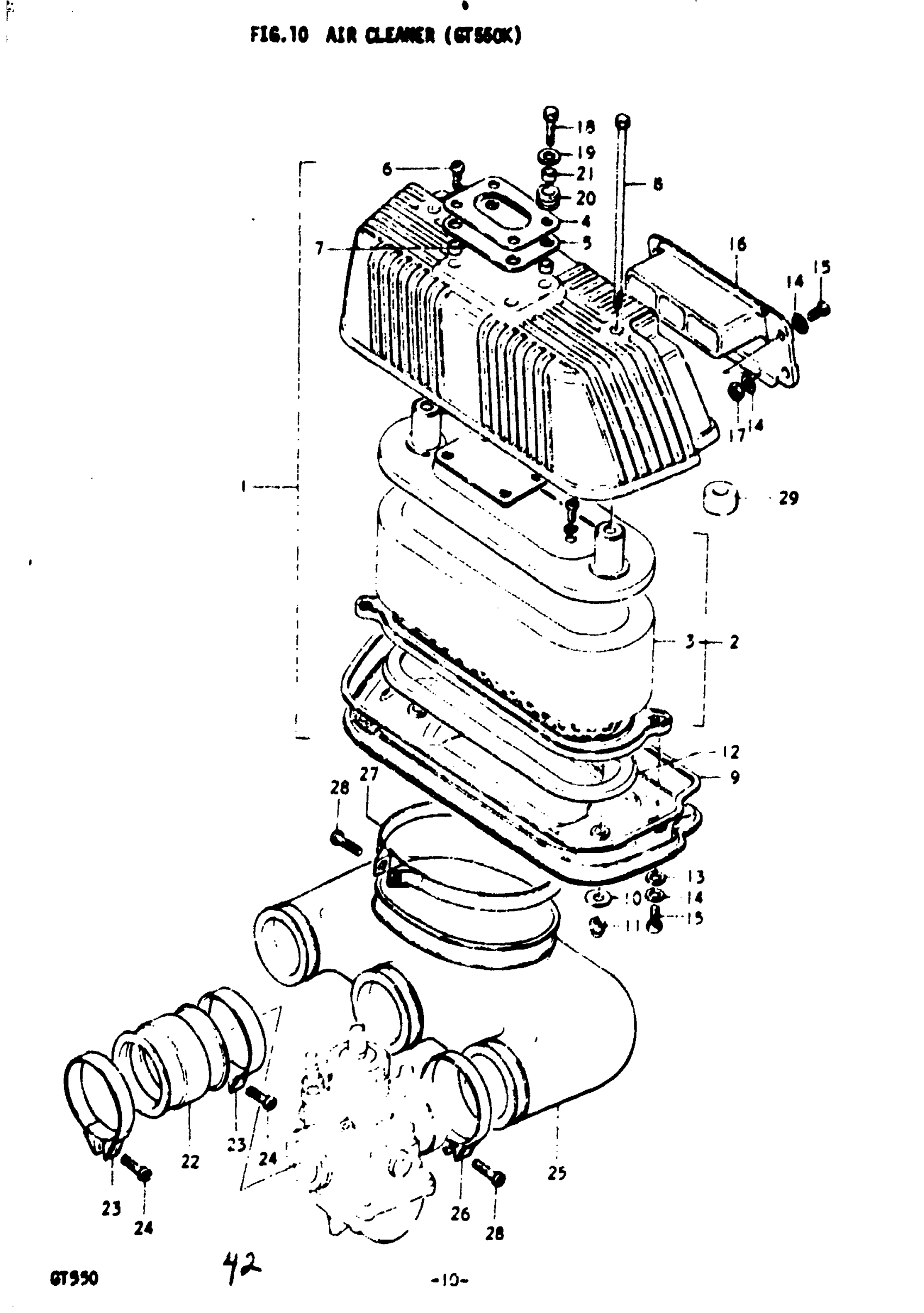

Suzuki GT550 (1977) AIR CLEANER (GT550K) Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 17

13700-34010

Unavailable

2

FILTER

13780-34011

Unavailable

3

ELEMENT

13781-34010

Unavailable

4

PLATE, FITTING

13734-34010

Unavailable

5

GASKET, FITTING PLATE

13742-34010

Unavailable

6

SCREW This part replaces 02112-06168.

02112-06167

$1.49

7

SPACER, FITTING PLATE

13793-31010

Unavailable

8

BOLT, AIR FILTER

13726-34011

Unavailable

9

GASKET, CLEANER CASE

13743-34012

Unavailable

10

WASHER, CLEANER CASE

13737-34010

Unavailable

11

NUT This part replaces 08311-11058.

08310-00057

$1.84

12

GASKET, FILTER

13787-34011

Unavailable

13

GASKET, CLEANER CASE FITTING

13742-33010

Unavailable

14

WASHER This part replaces 08322-21048.

08322-01047

$1.86

15

SCREW This part replaces 02111-04127.

02112-0412A

$1.49

16

INLET, AIR CLEANER

13722-34010

Unavailable

17

NUT This part replaces 08311-11048.

08310-00047

$2.23

18

BOLT This part replaces 01112-06208.

01500-06207

$2.28

19

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

20

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

21

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.48

22

PIPE,INTAKE | FROM 13111-33000 This part replaces 13111-33100.

13111-33101

$17.68

23

CLAMP, INTAKE PIPE | TO 09402-48303 This part replaces 09402-00229.

09402-50306

$4.77

24

SCREW This part replaces 02111-04208.

02112-0420A

$1.49

25

HOSE, AIR INLET | TO 13880-34102 This part replaces 13880-34101.

13880-34102

Unavailable

25

HOSE, AIR INLET

13880-34102

Unavailable

26

CLAMP This part replaces 09402-00223.

09402-52306

$4.91

27

CLAMP

09402-00242

Unavailable

28

SCREW This part replaces 02111-04208.

02112-0420A

$1.49

29

GROMMET

13744-34012

Unavailable
