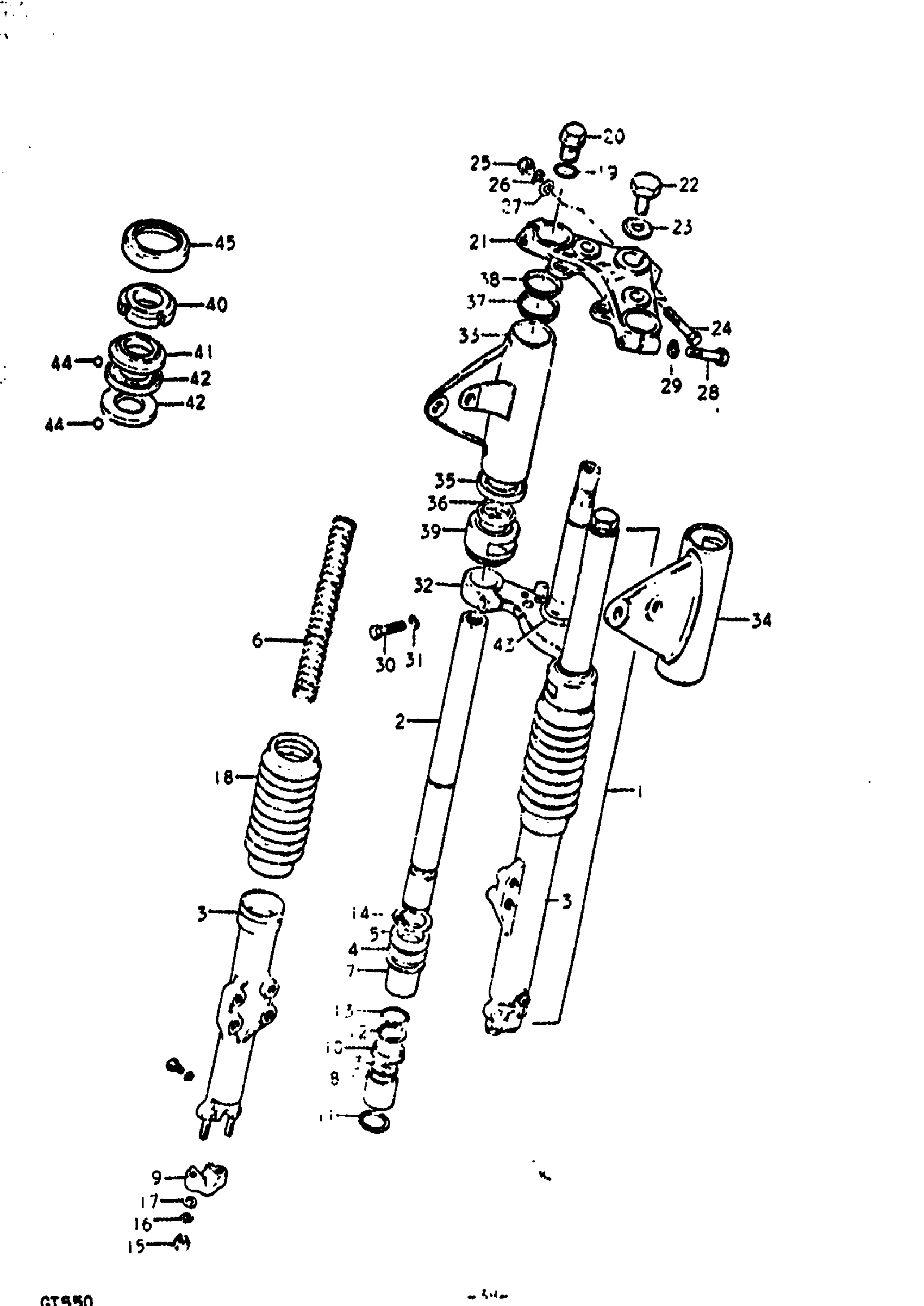

Suzuki GT550 (1972) FRONT FORK Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK | Includes Item(s) 2 - 20

51103-34030

Unavailable

2

TUBE, INNER

51111-34030

Unavailable

3

TUBE, OUTER | SEE NOTE

51130-31031

Unavailable

4

SEAL, OIL | TO 51153-34730 This part replaces 51163-31030.

51153-19D10

$21.62

5

SEAL, OIL | TO 51153-34730 This part replaces 51153-31030.

51153-19D10

$21.62

6

SPRING, FOEK

51171-34030

Unavailable

7

GUIDE, INNER TUBE

51152-31030

Unavailable

8

FISTON, INNER TUBE

51112-31030

Unavailable

9

HOLDER, AXLE

51132-31030

Unavailable

10

VALVE, DAMPER

51114-31030

Unavailable

11

SNAPRING

51119-31030

Unavailable

12

RING, VALVE STOPPER

51118-31030

Unavailable

13

RING, PISTON STOPPER

51116-31030

Unavailable

14

CIRCLIP

51156-31030

Unavailable

15

NUT This part replaces 08311-11088.

08310-00087

$1.83

16

.LOCK WASHER This part replaces 08321-11088.

08321-01087

$1.83

17

WASHER This part replaces 08322-21088.

08322-01087

$1.86

18

BOOT

51571-33030

Unavailable

19

O RING

51181-31030

$4.11

20

CAP, INNER TUBE

51351-31030

Unavailable

21

BRACKET, FRONT FORK UPPER

51311-34001-019

Unavailable

22

BOLT | 10x20

09104-10005

Unavailable

23

WASHER | 10.7x33x3.2

09160-10036

Unavailable

24

BOLT This part replaces 01122-08508.

01500-08507

$2.80

25

NUT This part replaces 08312-12087.

08310-00087

$1.83

26

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

27

WASHER This part replaces 08322-11088.

08322-01087

$1.86

28

BOLT This part replaces 01121-10407.

01500-10407

$3.25

29

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

30

BOLT This part replaces 01122-10408.

01500-10407

$3.25

31

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

32

STEM, STEERING

51410-34000

Unavailable

33

BRACKET, HEADLAMP RH

51530-34000-156

Unavailable

33

BRACKET, HEADLAMP RH

51530-34000-176

Unavailable

34

BRACKET, HEADLAMP LH

51540-34000-156

Unavailable

34

BRACKET, HEADLAMP LH

51540-34000-176

Unavailable

35

SEAT, HEADLAMP BRACKET

51551-31000

Unavailable

36

CUSHION, HEADLAMP BRACKET

51553-31000

Unavailable

37

CAP, HEADLAMP BRACKET

51555-31000

Unavailable

38

CUSHION, BRACKET UPPER

51556-31000

Unavailable

39

GUIDE, BOOT

51570-31000

Unavailable

40

NUT, STEERING STEM

51631-28000

$19.60

41

OUTER RACE, STEERING UPPER

51621-30001

Unavailable

42

INNER RACE, STEERING | FROM 51611-33001

51611-33002

$13.02

43

OUTER RACE, STEERING LOWER

51621-33001

$18.33

44

BALL | FROM 06111-08004

06111-08003

$1.30

45

DUST SEAL, STEERING UPPER

51643-30000

Unavailable
