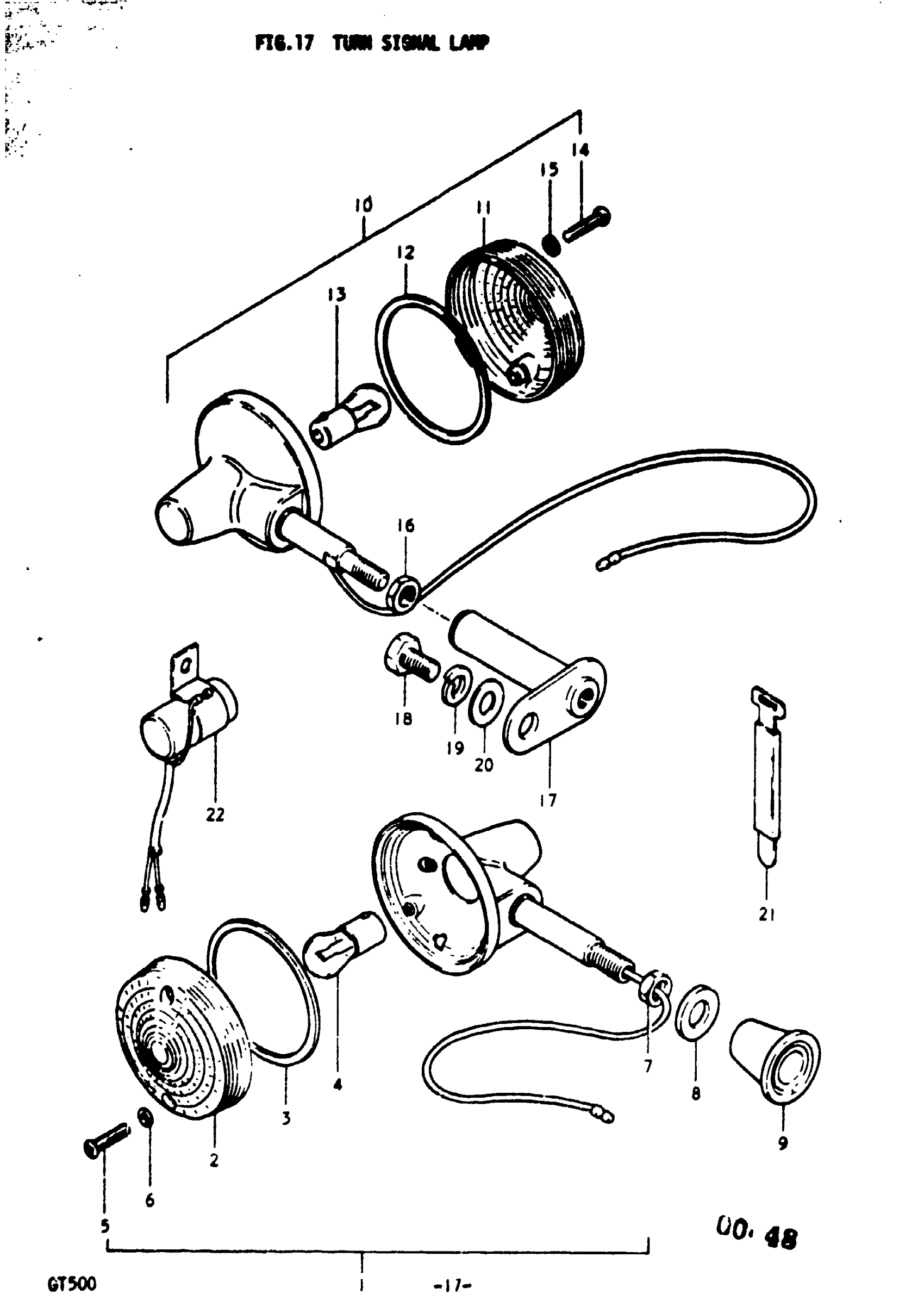

Suzuki GT500 (1977) TURN SIGNAL LAMP Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A,B; Includes Item(s) 2 - 7 This part replaces 35601-29620.

35601-29620-999

Unavailable

2

LENS | A,B

35612-28620

$8.98

3

GASKET | A,B

35613-28620

$4.55

4

BULB | A,B; 12V, 23W

09471-12006

$3.98

5

SCREW | A,B

02111-04258

Unavailable

6

GASKET | A,B

35627-43010

$2.28

7

NUT | A,B This part replaces 08312-32108.

08310-00107

$2.19

8

WASHER | A,B This part replaces 08322-21108.

08322-01107

$2.15

9

COVER, TURN SIGNAL BOSS | A,B

35698-28000

Unavailable

10

LAMP RR TURN SI | A This part replaces 35603-18410.

35603-25610-999

Unavailable

10

LAMP RR TURN SI | B; Includes Item(s) 11 - 16 This part replaces 35603-18411.

35603-25610-999

Unavailable

11

LENS | A,B

35612-28620

$8.98

12

GASKET | A,B

35613-28620

$4.55

13

BULB | A,B; 12V, 23W

09471-12006

$3.98

14

SCREW | A,B

02111-04258

Unavailable

15

GASKET | A,B

35627-43010

$2.28

16

NUT | A,B This part replaces 08312-32108.

08310-00107

$2.19

17

BRACKET, REAR TURN SIGNAL LAMP | A,B

41640-15100

Unavailable

18

BOLT | A,B This part replaces 01122-10168.

01500-10167

$3.85

19

LOCK WASHER | A,B This part replaces 08321-21108.

08321-01107

$1.84

20

WASHER, LOWER (10.5X24X2.3) | A,B This part replaces 09160-10001.

09160-10093

$2.35

21

CLAMP | A,B This part replaces 09407-11302.

09407-18302

$2.28

22

TURN SIGNAL REL | A,B This part replaces 38610-32210.

38610-322V0

Unavailable
