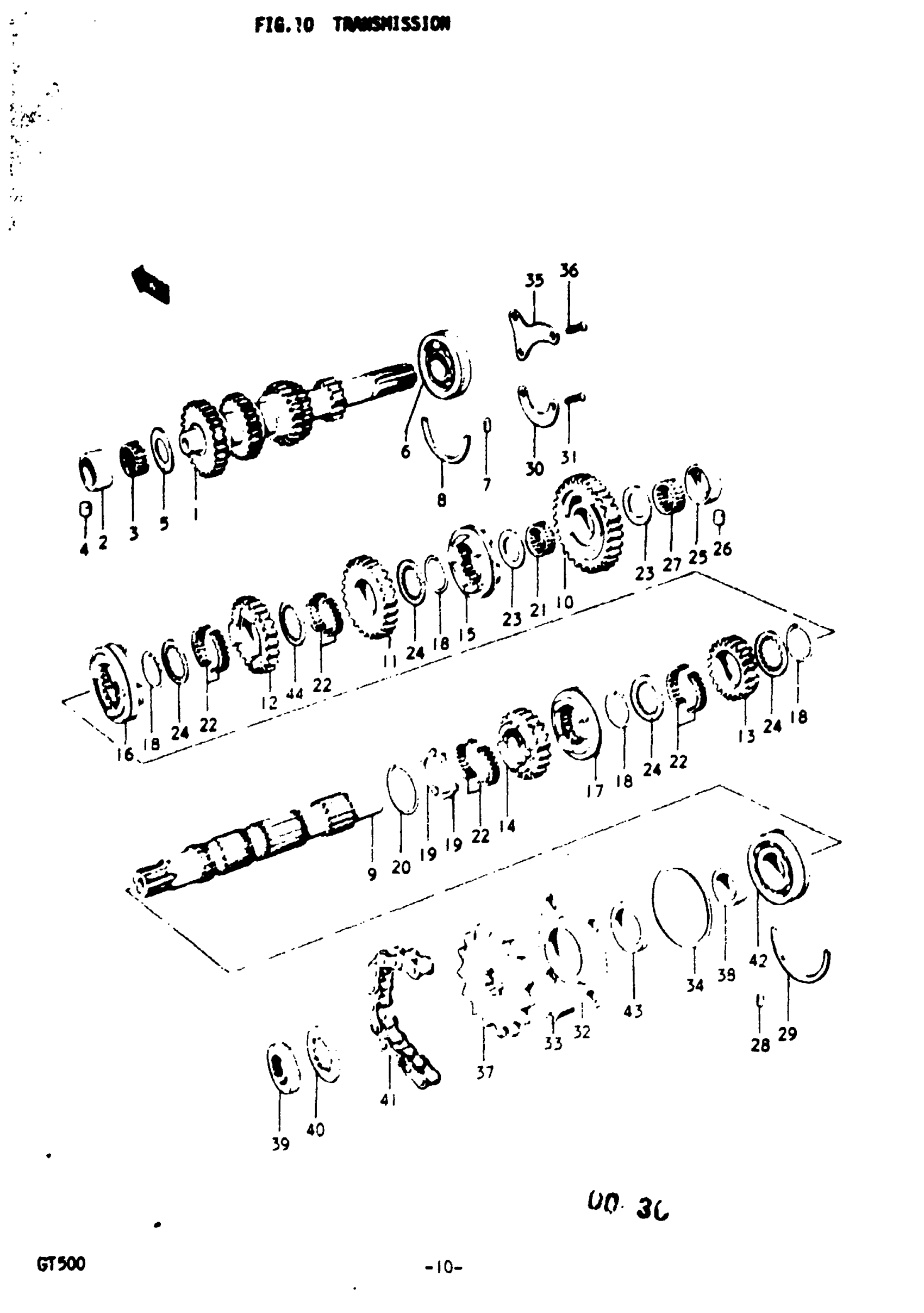

Suzuki GT500 (1977) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT | A,B

24120-15003

Unavailable

2

BUSHING | A,B

09319-26001

Unavailable

3

BEARING | A,B

09263-20005

Unavailable

4

PIN | A,B This part replaces 06211-07123.

04221-07129

$1.86

5

WASHER | A,B; 20x30x1

09160-20004

Unavailable

6

BEARING | A,B

09262-22004

Unavailable

7

PIN | A,B This part replaces 06211-04063.

04221-04069

$2.12

8

C RING | A,B

09390-59001

Unavailable

9

DRIVESHAFT | A,B

24131-15000

Unavailable

10

GEAR, 1ST DRIVEN | A,B; NT:30

24311-15001

Unavailable

11

GEAR, 2ND DRIVEN | A,B; NT:25

24321-15000

Unavailable

12

GEAR, 3RD DRIVEN | A,B; NT:22

24331-15000

Unavailable

13

GEAR, 4TH DRIVEN | A,B; NT:21

24341-15001

Unavailable

14

GEAR, 5TH DRIVEN | A,B; NT:20

24351-15003

Unavailable

15

WHEEL, 1ST DRIVEN GEAR | A,B

24411-15000

Unavailable

16

WHEEL, 3RD DRIVEN GEAR | A,B

24413-15000

Unavailable

17

WHEEL, 5TH DRIVEN GEAR | A,B

24415-15000

Unavailable

18

CIRCLIP | A,B

09380-30001

Unavailable

19

RING, 5TH DRIVEN GEAR | A,B

09399-30002

Unavailable

20

CIRCLIP, 5TH DRIVEN GEAR | A,B

09380-41001

Unavailable

21

BEARING, 1ST DRIVEN GEAR | A,B

09263-20005

Unavailable

22

BEARING SET | A,B

20000-15814

Unavailable

23

WASHER, 1ST DRIVEN GEAR | A,B

09160-20004

Unavailable

24

WASHER | A,B; T:2

09167-30002

Unavailable

25

BUSHING | A,B

09319-26001

Unavailable

26

PIN | A,B This part replaces 06211-07123.

04221-07129

$1.86

27

BEARING | A,B

09263-20005

Unavailable

28

PIN | A,B This part replaces 06211-04063.

04221-04069

$2.12

29

C RING | A,B

09390-59001

Unavailable

30

RETAINER, DRIVESHAFT BEARING | A,B

24741-15000

Unavailable

31

SCREW | A,B This part replaces 02122-06168.

02122-06167

$1.49

32

RETAINER, DRIVESHAFT BEARING | A,B

24751-15000

Unavailable

33

SCREW | A,B This part replaces 02122-06128.

02122-06127

$1.84

34

O-RING | A,B This part replaces 09280-63001.

09280-63005

$2.16

35

CUP, OIL RESERVOIR | A,B

24871-15000

Unavailable

36

SCREW | A,B This part replaces 02122-06128.

02122-06127

$1.84

37

SPROCKET, ENGINE | A,B; NT:15

27511-15000

Unavailable

37

SPROCKET, ENGINE | A,B; NT:14 OPT

27511-15700

Unavailable

37

SPROCKET, ENGINE | A,B; NT:13 OPT

27511-15710

Unavailable

38

SPACER | A,B

09180-22001

Unavailable

39

NUT | A,B

09140-22003

Unavailable

40

LOCK WASHER | A,B

09167-22005

$2.11

41

CHAIN, DRIVE | A,B; 110&

27600-15911

Unavailable

42

BEARING | A,B

09262-22001

Unavailable

43

OIL SEAL | A,B

09283-27001

Unavailable

44

WASHER | A,B; T:1

09167-30001

Unavailable
