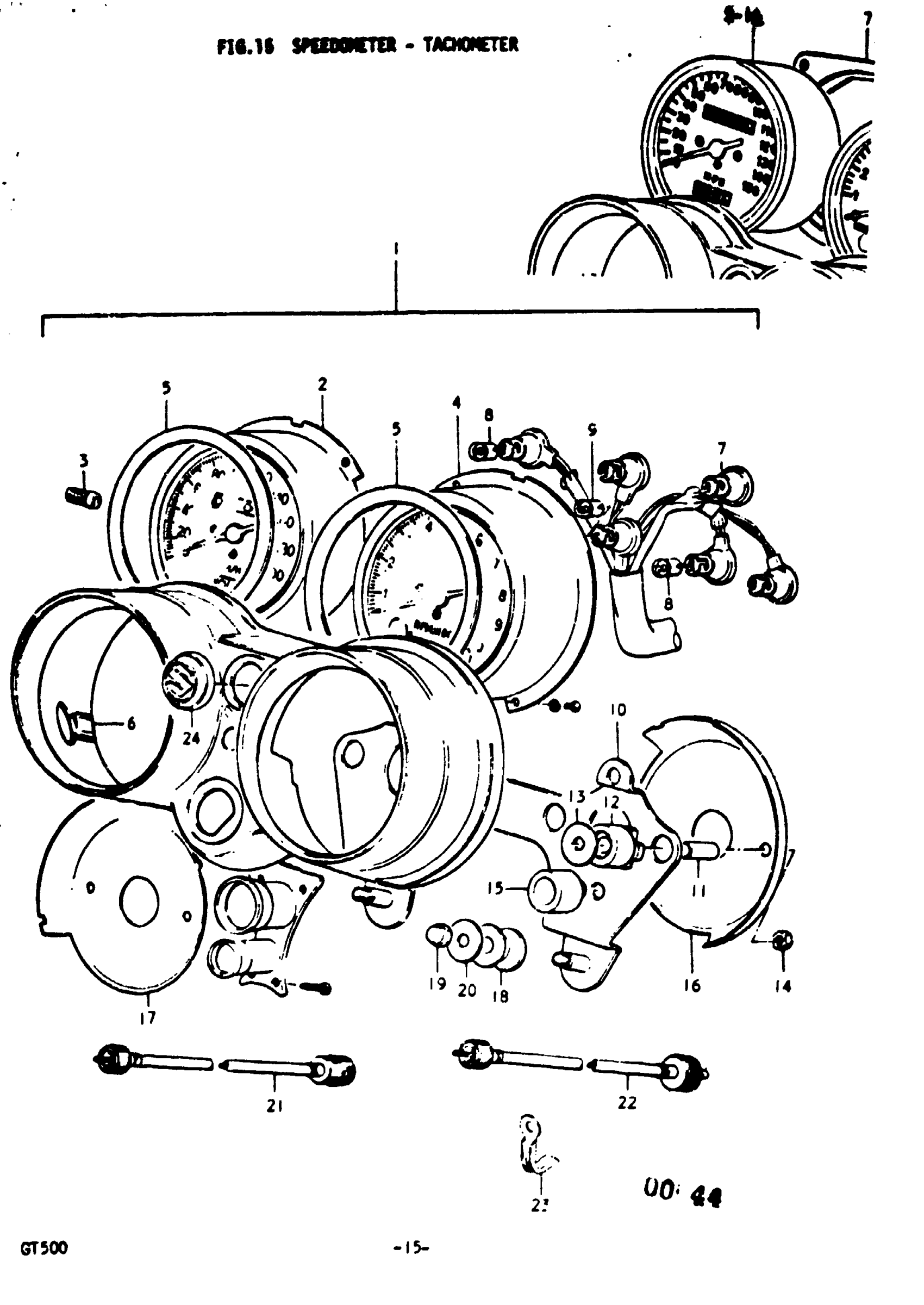

Suzuki GT500 (1977) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER / TACHOMETER | A

34100-15634

Unavailable

1

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 2 - 17 This part replaces 34100-15637.

34100-15651

Unavailable

2

NO DESCRIPTION AVAILABLE | A This part replaces 34110-33632.

34110-33633

Unavailable

2A

NO DESCRIPTION AVAILABLE | A This part replaces 34110-33634.

34110-33635

Unavailable

2

NO DESCRIPTION AVAILABLE | B This part replaces 34110-15631.

34110-15632

Unavailable

3

KNOB | A,B

34980-33600

Unavailable

4

TACHOMETER | A

34210-15124

Unavailable

4

NO DESCRIPTION AVAILABLE | B This part replaces 34210-15630.

34210-15631

Unavailable

5

GASKET | A,B

34181-33600

Unavailable

6

CAP | A,B

34192-33600

Unavailable

7

SOCKET | A,B

34170-33020

Unavailable

8

BULB | A,B; 12V, 3.4W

09471-12001

$1.65

9

BULB | A,B; 12V, 1.7W

09471-12004

$2.69

10

BRACKET | A,B

34950-33601

Unavailable

11

SPACER | A,B

34972-16420

Unavailable

12

CUSHION | A,B

34955-16420

$4.43

13

WASHER,5.5X18X1 | A,B This part replaces 09160-05006.

09160-05006-XC0

Unavailable

14

.NUT | A,B This part replaces 08311-11068.

08310-00067

$2.13

15

CUSHION | A,B

34956-33600

Unavailable

16

PLATE, TACHOMETER | A,B

34961-33602

Unavailable

17

PLATE, SPEEDOMETER | A,B

34960-33602

Unavailable

18

CUSHION, BRACKET | A,B

34956-15100

$3.71

19

NUT, LICENSE HOLDER | A,B This part replaces 08313-11067.

08313-10067

$1.84

20

WASHER | A,B; FROM 09160-06006 This part replaces 09160-06007.

09160-06084

$1.78

21

CABLE, SPEEDOMETER | A; TO 34910-33032 This part replaces 34910-33030.

34910-33032

Unavailable

21

CABLE,SPEEDOMET | B This part replaces 34910-18130.

34910-18991

$31.50

22

CABLE,TACHOMETE | A,B This part replaces 34940-33030.

34940-33032

Unavailable

23

CLAMP, CABLE | A

34991-18100

Unavailable

24

CAP | A,B

34995-31600

Unavailable
