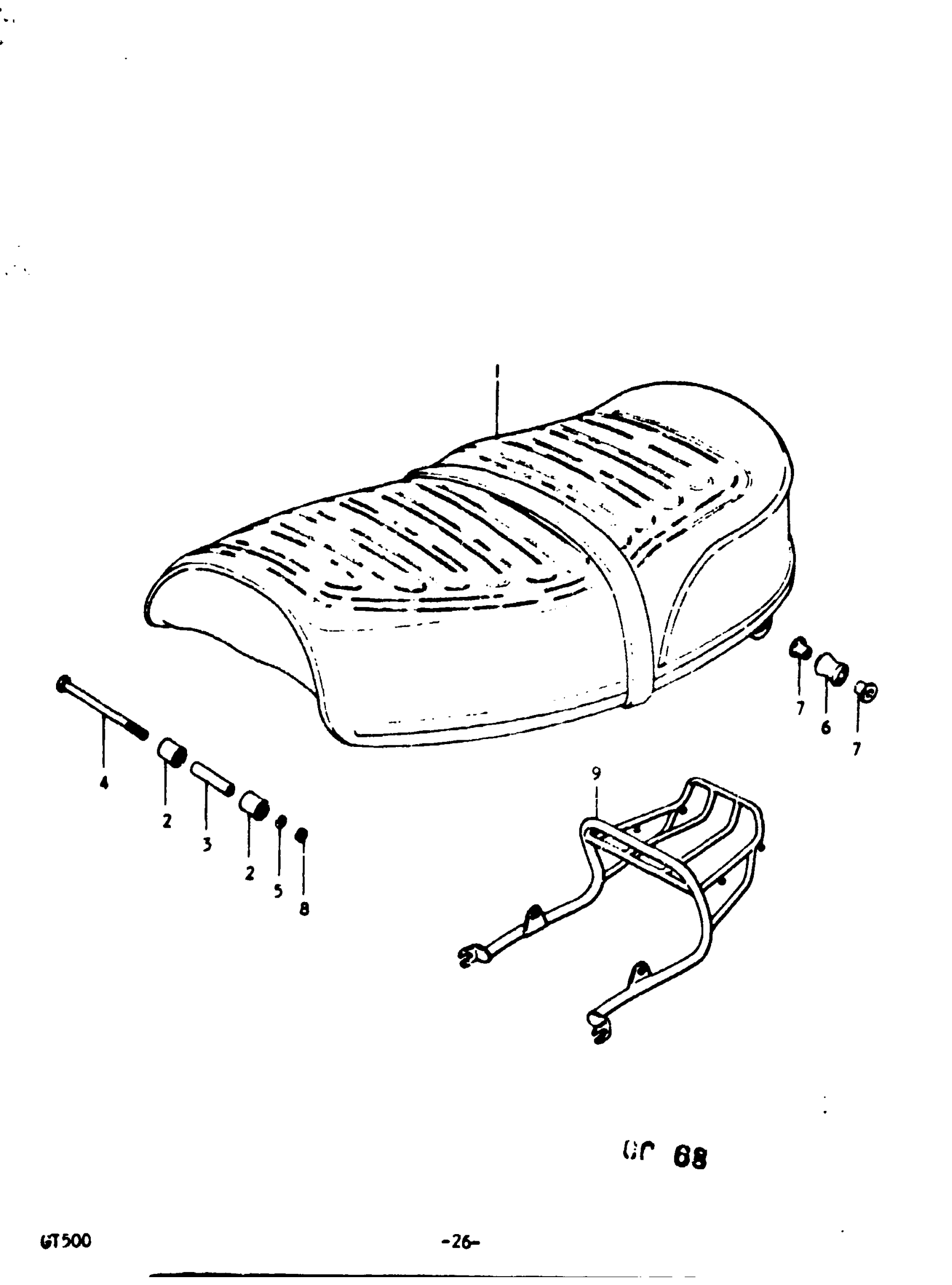

Suzuki GT500 (1977) SEAT Diagram

#

Description

Price

1

SEAT | A

45100-15600-403

Unavailable

1

SEAT | B; FROM 45100-15600-403

45100-15600-865

Unavailable

2

BUSHING | A,B

09319-08002

Unavailable

3

SPACER | A,B

09180-08023

Unavailable

4

SPACER | A,B This part replaces 09100-08029.

09100-08030

Unavailable

5

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

6

BUSHING (1) | A,B

09305-12008

Unavailable

7

BUSHING (2) | A,B

09301-08001

Unavailable

8

NUT | A,B This part replaces 08312-11088.

08310-00087

$2.13

9

CARRIER | B; OPT

46310-15101

Unavailable
