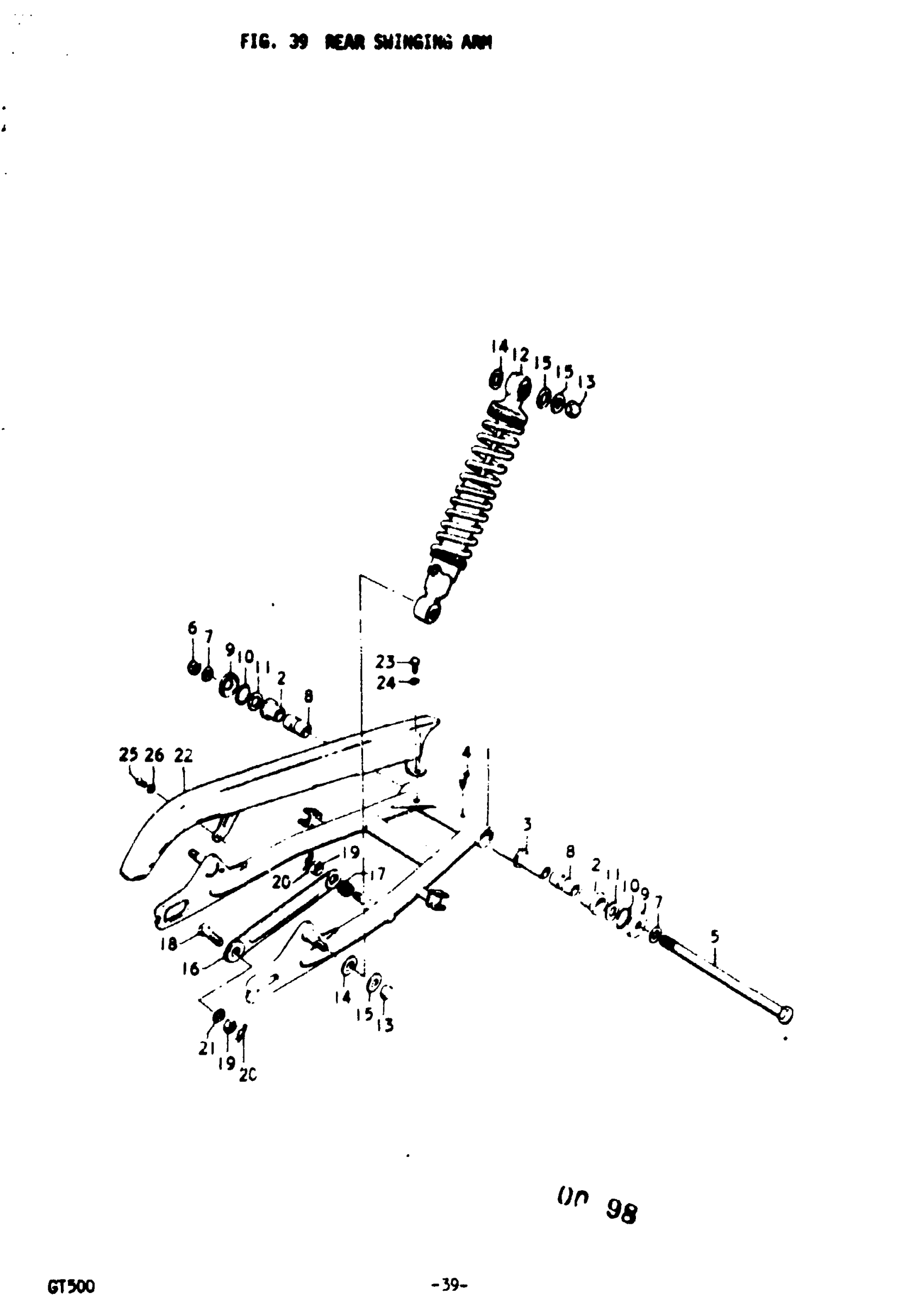

Suzuki GT500 (1977) REAR SWINGING ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A,B; Includes Item(s) 2 - 4 This part replaces 61100-15830-019.

61100-15831-019

Unavailable

2

BUSHING | A; TO 09307-22003 This part replaces 09307-22002.

09307-22003

Unavailable

2

BUSHING | B

09307-22003

Unavailable

3

SPACER | A,B

61280-15000

Unavailable

4

NIPPLE, GREASE | A,B This part replaces 08351-31008.

08351-3100A

$4.45

5

SHAFT, REAR SWINGING ARM | A,B This part replaces 61211-15006.

61211-15007

Unavailable

6

NUT | A,B

09159-14003

Unavailable

7

WASHER | A,B This part replaces 08322-11148.

08322-01147

$1.91

8

SPACER, PIVOT | A,B; FROM 61251-15000

61251-15001

Unavailable

9

COVER, DUST SEAL | A,B

61262-15000

$93.03

10

.O RING (D:3,ID:29.5) | A,B

09280-30001

$1.72

11

WASHER | A,B

09160-14009

$2.82

12

SHOCK ABSORBER, REAR | A,B

62100-18602

Unavailable

13

NUT | A,B This part replaces 08313-11107.

08313-10107

$2.50

14

WASHER | A,B This part replaces 08322-11128.

08322-01127

$1.84

15

WASHER, LOWER (10.5X24X2.3) | A,B This part replaces 09160-10001.

09160-10093

$2.35

16

TORQUE LINK, REAR VRAKE | A,B

64310-15000

Unavailable

17

SPRING | A,B

09440-18002

$1.49

18

BOLT | A,B

09101-10003

Unavailable

19

NUT | A,B This part replaces 08311-11108.

08310-00107

$2.19

20

CLIP | A,B This part replaces 09385-10001.

09385-10005

$1.56

21

LOCK WASHER | A,B This part replaces 08321-21108.

08321-01107

$1.84
