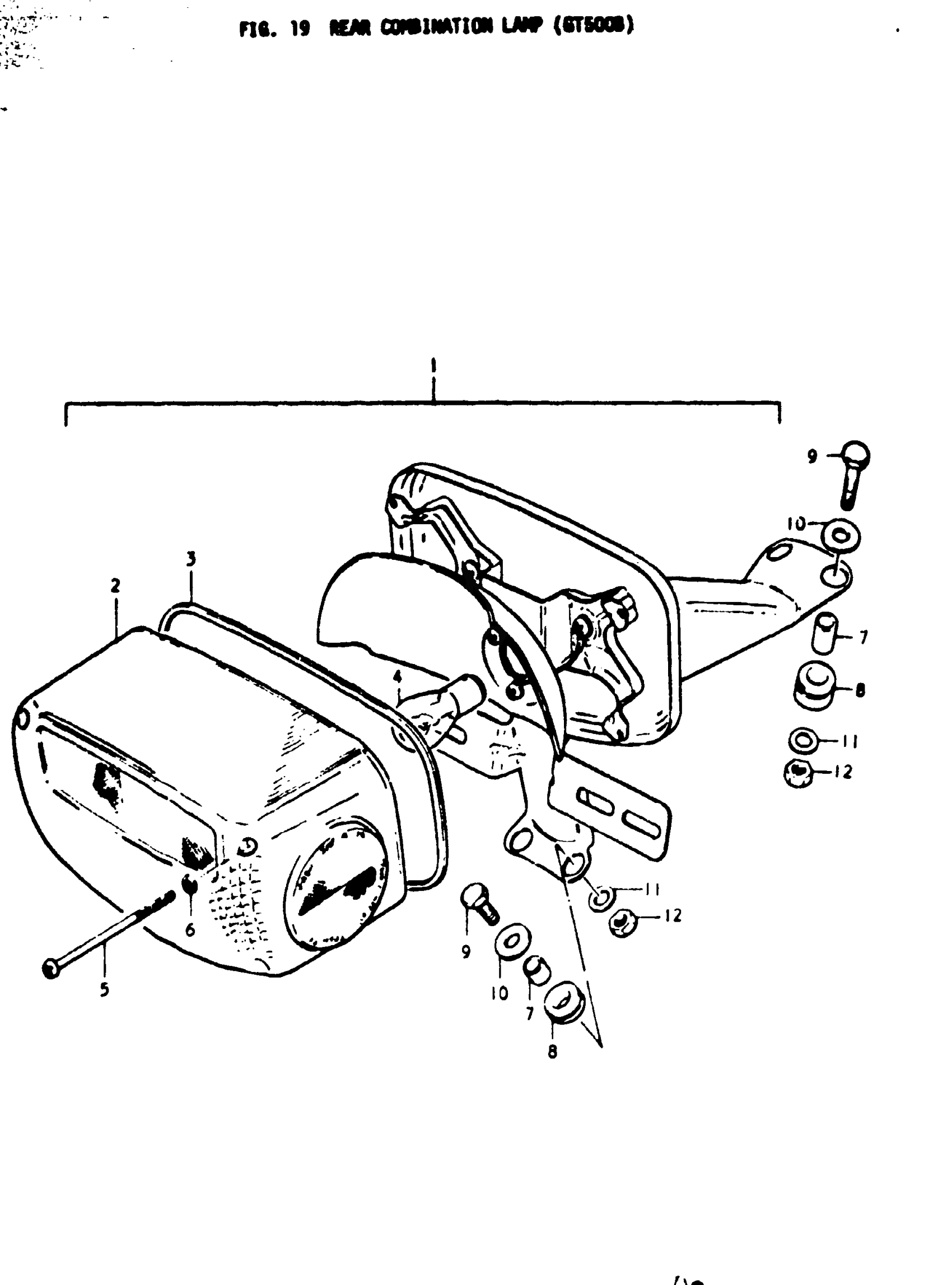

Suzuki GT500 (1977) REAR COMBINATION LAMP (GT500B) Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 8 This part replaces 35710-31210.

35710-31211

Unavailable

2

LENS,RR COMBI L This part replaces 35712-45010.

35712-45013

Unavailable

3

GASKET

35713-45010

Unavailable

4

BULB | 12V, 23/BW

09471-12035

$4.49

5

SCREW 4X55 This part replaces 02111-04558.

02112-04558

$1.65

6

GASKET

35627-43010

$2.28

7

SPACER This part replaces 35766-15010.

35766-37110

$5.28

8

CUSHION

35765-27691

Unavailable

9

BOLT This part replaces 01112-06208.

01500-06207

$2.28

10

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

11

WASHER This part replaces 08322-21068.

08322-01067

$2.13

12

.NUT This part replaces 08311-11068.

08310-00067

$2.13
