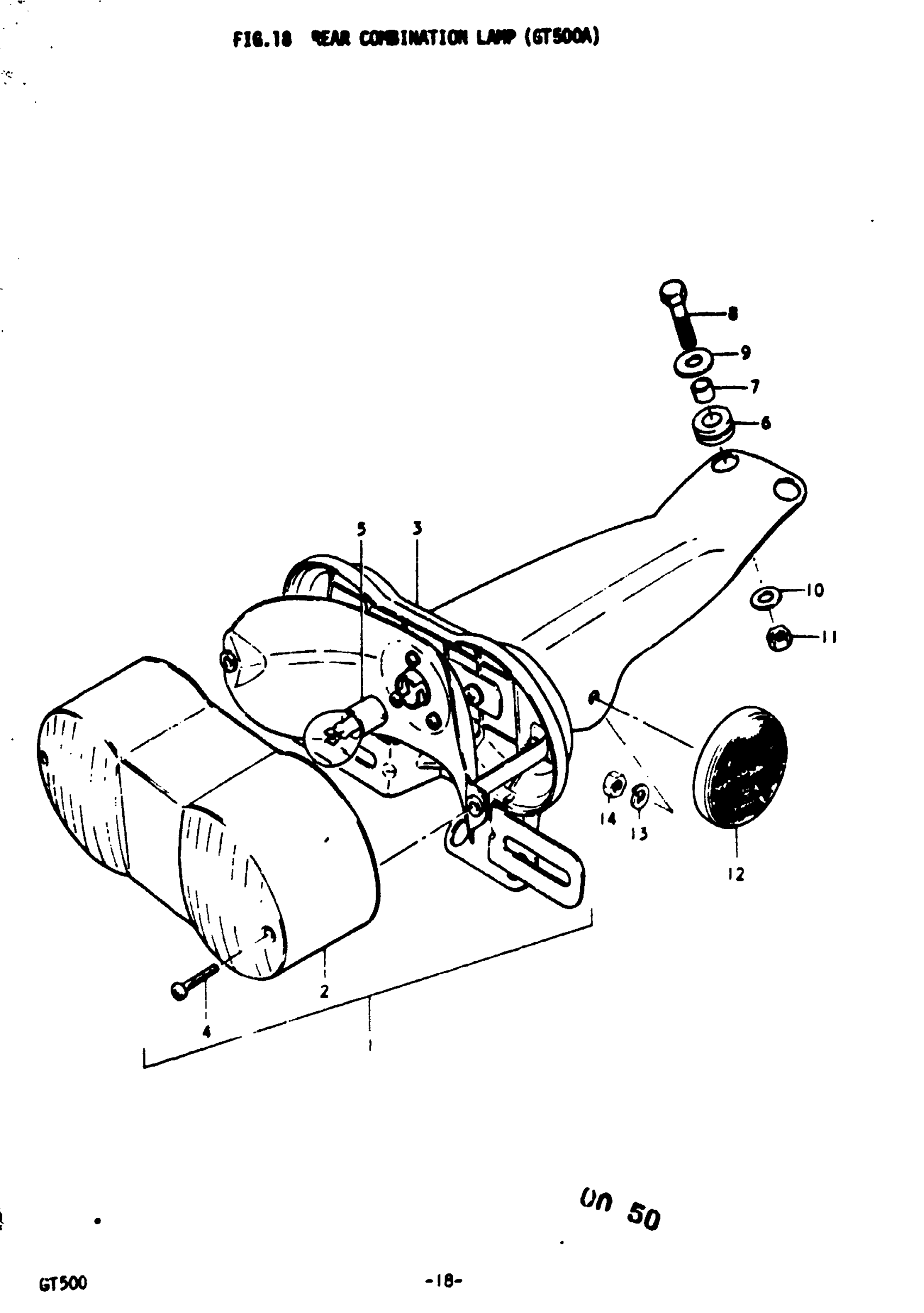

Suzuki GT500 (1977) REAR COMBINATION LAMP (GT500A) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 7

35710-18110

Unavailable

2

TAIL LAMP LENS This part replaces 35712-27660.

35712-27671

Unavailable

3

HOUSING

35715-27691

Unavailable

4

SCREW 4X55 This part replaces 02111-04558.

02112-04558

$1.65

5

BULB | 12V, 23/8W

09471-12035

$4.49

6

CUSHION

35765-15010

Unavailable

7

SPACER This part replaces 35766-15010.

35766-37110

$5.28

8

BOLT This part replaces 01112-06208.

01500-06207

$2.28

9

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

.NUT This part replaces 08311-11068.

08310-00067

$2.13

12

REFLEX REFLECTOR, REAR

35970-15010

Unavailable

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

14

NUT This part replaces 08311-11058.

08310-00057

$1.84
