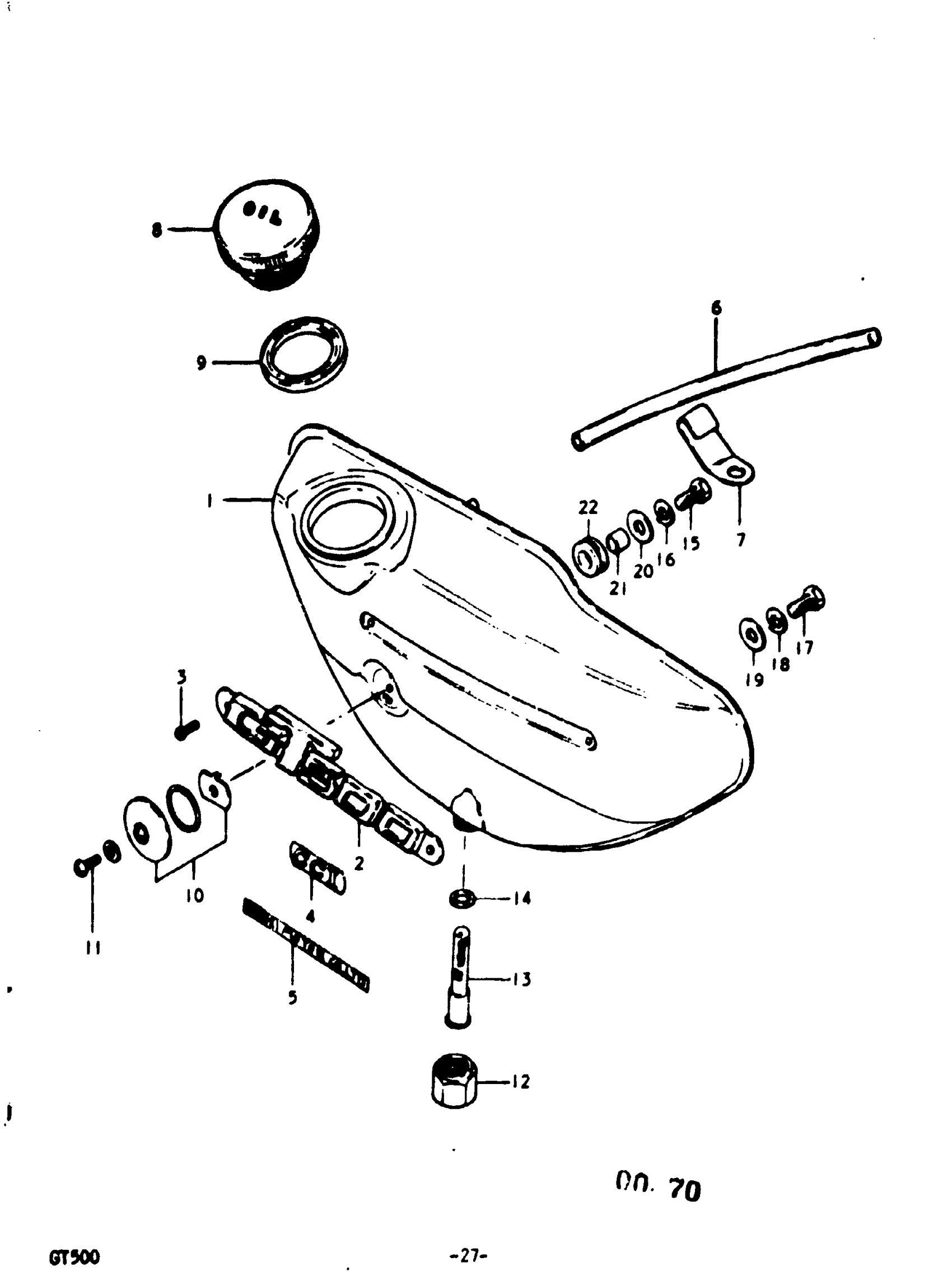

Suzuki GT500 (1977) OIL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A This part replaces 44610-15101-00U.

44610-15101-019

Unavailable

1

NO DESCRIPTION AVAILABLE | A This part replaces 44610-15101-01J.

44610-15101-019

Unavailable

1

NO DESCRIPTION AVAILABLE | B This part replaces 44610-15101-291.

44610-15101-019

Unavailable

2

EMBLEM | A,B

68141-15610

Unavailable

3

SCREW | A,B

09125-03007

Unavailable

4

EMBLEM, CCI | A,B

68171-26000

$3.59

5

LABEL, COMPANY NAME | A,B

68363-26200

Unavailable

6

HOSE (5X8X2000) | A,B This part replaces 09344-05005.

09351-50803-00B

$9.10

7

CLAMP | A,B

09403-08301

Unavailable

8

CAP, OIL FILLER | A,B

44651-11040

$15.05

9

GASKET,OIL TANK | A,B This part replaces 44661-11000.

44661-11001

$3.66

10

OIL LEVEL INSPECTION SET | A,B

44640-11843

Unavailable

11

SCREW | A,B This part replaces 02112-05168.

02112-05167

$1.97

12

UNION, OIL OUTLET | A,B

09361-14001

Unavailable

13

FILTER, OIL | A,B

44720-11030

$5.38

14

GASKET | A,B

44733-11030

$2.28

15

BOLT, CANISTER | AB This part replaces 01112-06168.

01500-06167

$1.97

16

LOCK WASHER | A This part replaces 08321-21068.

08321-01067

$2.13

17

BOLT | B This part replaces 01131-06128.

01500-06127

$1.97

18

LOCK WASHER | B This part replaces 08321-21068.

08321-01067

$2.13

19

WASHER | B This part replaces 08322-21068.

08322-01067

$2.13

20

WASHER (6.5X20X1.2) | A,B This part replaces 09160-06027.

09160-06077

$1.91

21

SPACER | A,B

09180-06038

$1.98

22

CUSHION (8.5X20X8) | A,B This part replaces 09320-08007.

09320-08510

$1.97
