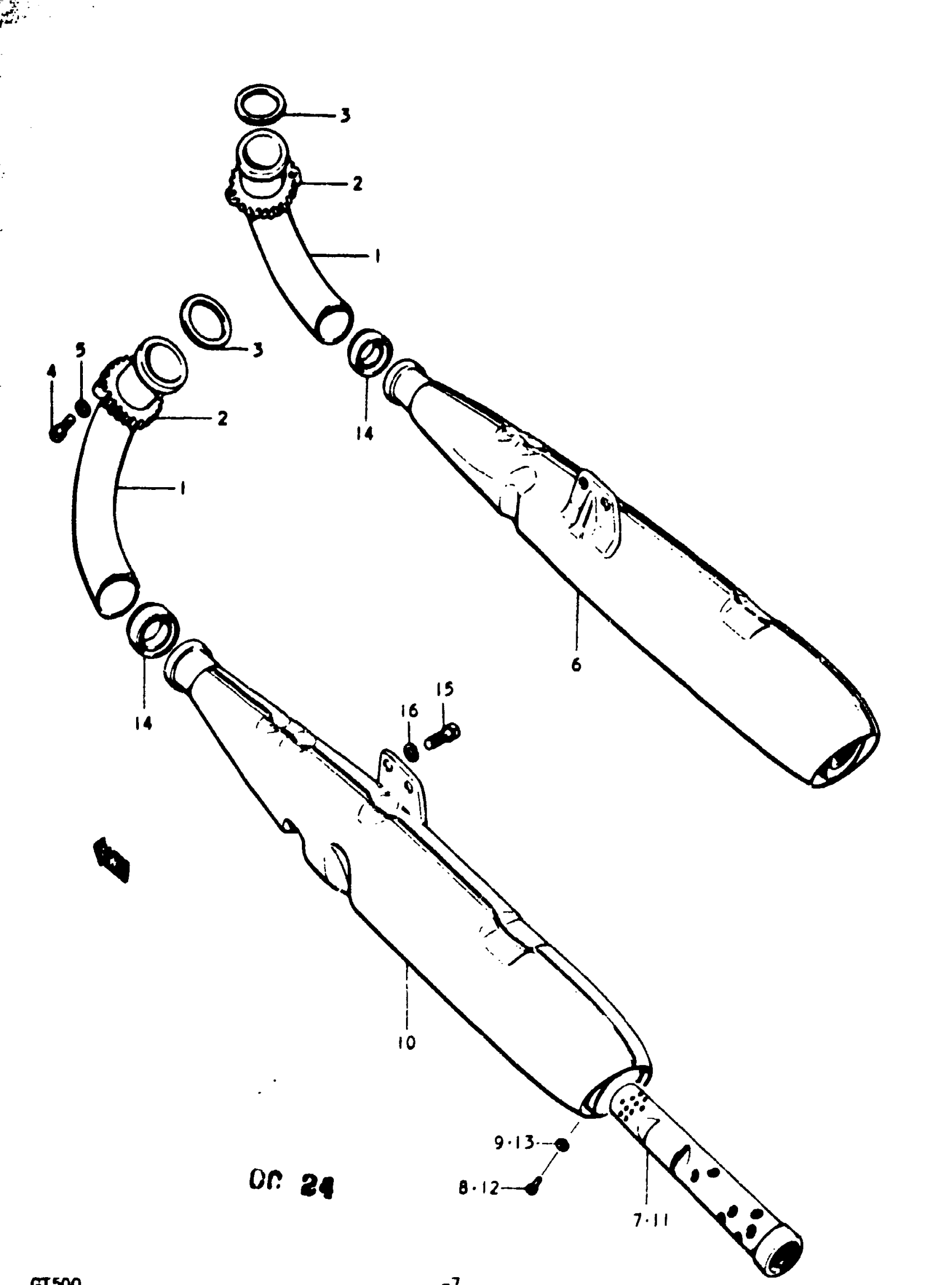

Suzuki GT500 (1977) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST | A,B

14150-15000

Unavailable

2

CLAMP, EXHAUST PIPE | A,B

14182-15000

Unavailable

3

GASKET,EXHAUST | A,B This part replaces 14181-15010.

14181-15020

Unavailable

4

BOLT | A,B This part replaces 01122-08408.

01500-0840A

$2.60

5

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

6

NO DESCRIPTION AVAILABLE | A This part replaces 14301-15003.

14301-15601-H01

Unavailable

6

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 7 - 9 This part replaces 14301-15004.

14301-15601-H01

Unavailable

7

PIPE, BAFFLE RH | A,B This part replaces 14510-15004.

14510-31000

Unavailable

8

SCREW | A,B

09128-05004

Unavailable

9

LOCK WASHER | A,B This part replaces 08321-21058.

08321-0105A

$1.84

10

NO DESCRIPTION AVAILABLE | A This part replaces 14302-15003.

14302-15601-H01

Unavailable

10

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 11 - 13 This part replaces 14302-15004.

14302-15601-H01

Unavailable

11

PIPE, BAFFLE RH | A,B This part replaces 14510-15004.

14510-31000

Unavailable

12

SCREW | A,B

09128-05004

Unavailable

13

LOCK WASHER | A,B This part replaces 08321-21058.

08321-0105A

$1.84

14

CONNECTOR, MUFFLER | A,B

14771-15080

Unavailable

15

BOLT | A,B This part replaces 01122-10168.

01500-10167

$3.85

16

LOCK WASHER | A,B This part replaces 08321-21108.

08321-01107

$1.84
