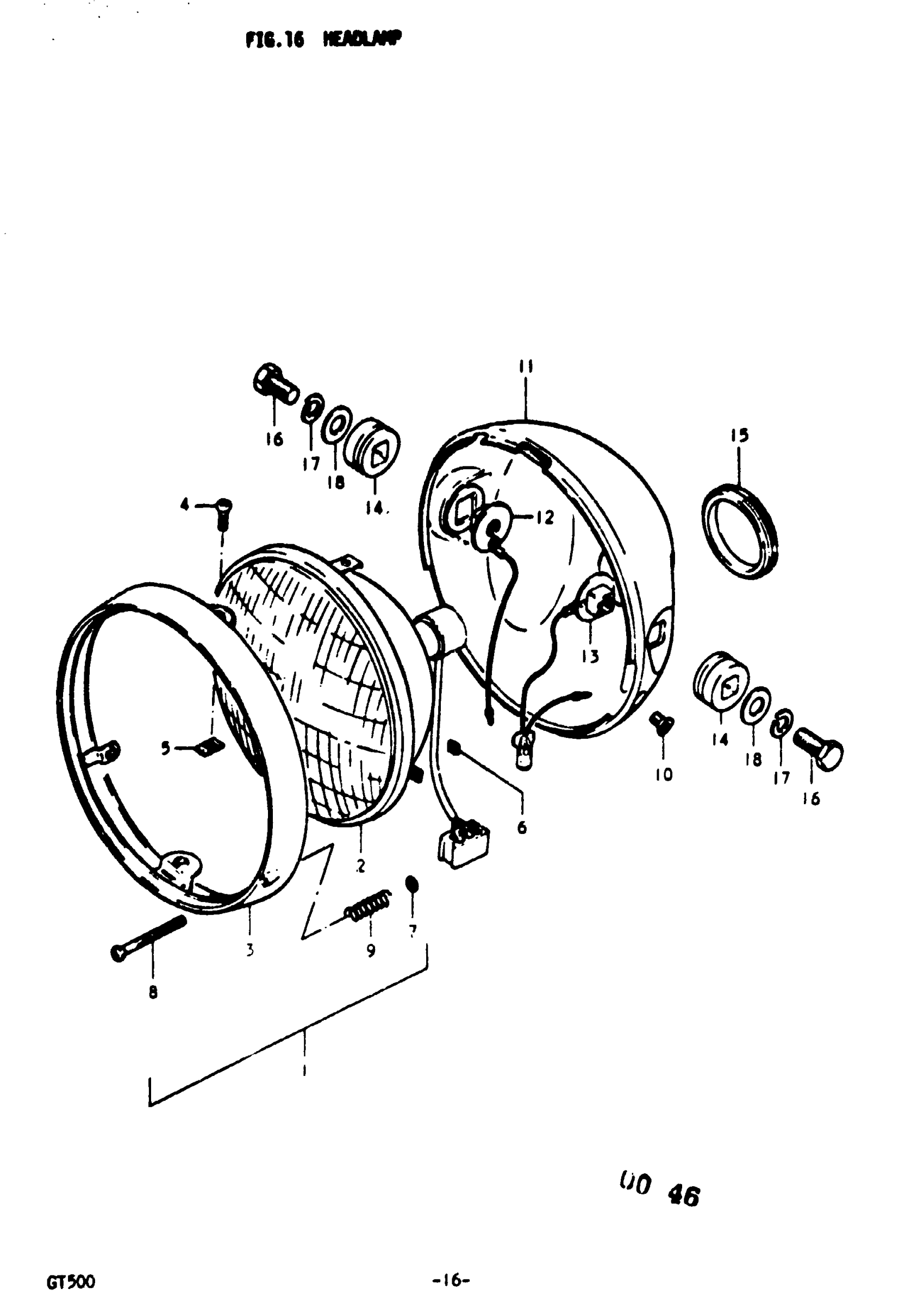

Suzuki GT500 (1977) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | A,B; Includes Item(s) 2 - 9

35100-18620

Unavailable

2

UNIT | A,B; 12V, 30/30W

35121-18620

Unavailable

3

RIM | A,B

35111-27630

Unavailable

4

SCREW | A,B This part replaces 02111-05087.

02112-05087

$1.49

5

NUT | A,B This part replaces 35135-12610.

35155-48510

$2.28

6

NUT | A,B This part replaces 35155-27630.

35135-45600

$3.65

7

WASHER | A,B

35157-27630

$3.25

8

SCREW | A,B This part replaces 35151-27630.

35151-45230

Unavailable

9

SPRING | A,B

35154-27630

Unavailable

10

SCREW | A,B This part replaces 02231-05128.

02122-05127

$1.93

11

HOSUING, HEADLAMP | A

51810-30000

Unavailable

11

NO DESCRIPTION AVAILABLE | B This part replaces 51810-27300-291.

51810-27300-737

Unavailable

12

SPACER, RH | A,B

51821-27301

Unavailable

13

SPACER, LH | A,B

51822-27301

Unavailable

14

CUSHION,HEADLAM | A,B This part replaces 51827-27301.

51827-27303

$3.66

15

GROMMET | A,B

51845-31031

$4.52

16

BOLT | A,B This part replaces 01221-08207.

01204-08207

$2.30

17

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

18

WASHER | A,B This part replaces 08322-11088.

08322-01087

$2.13
