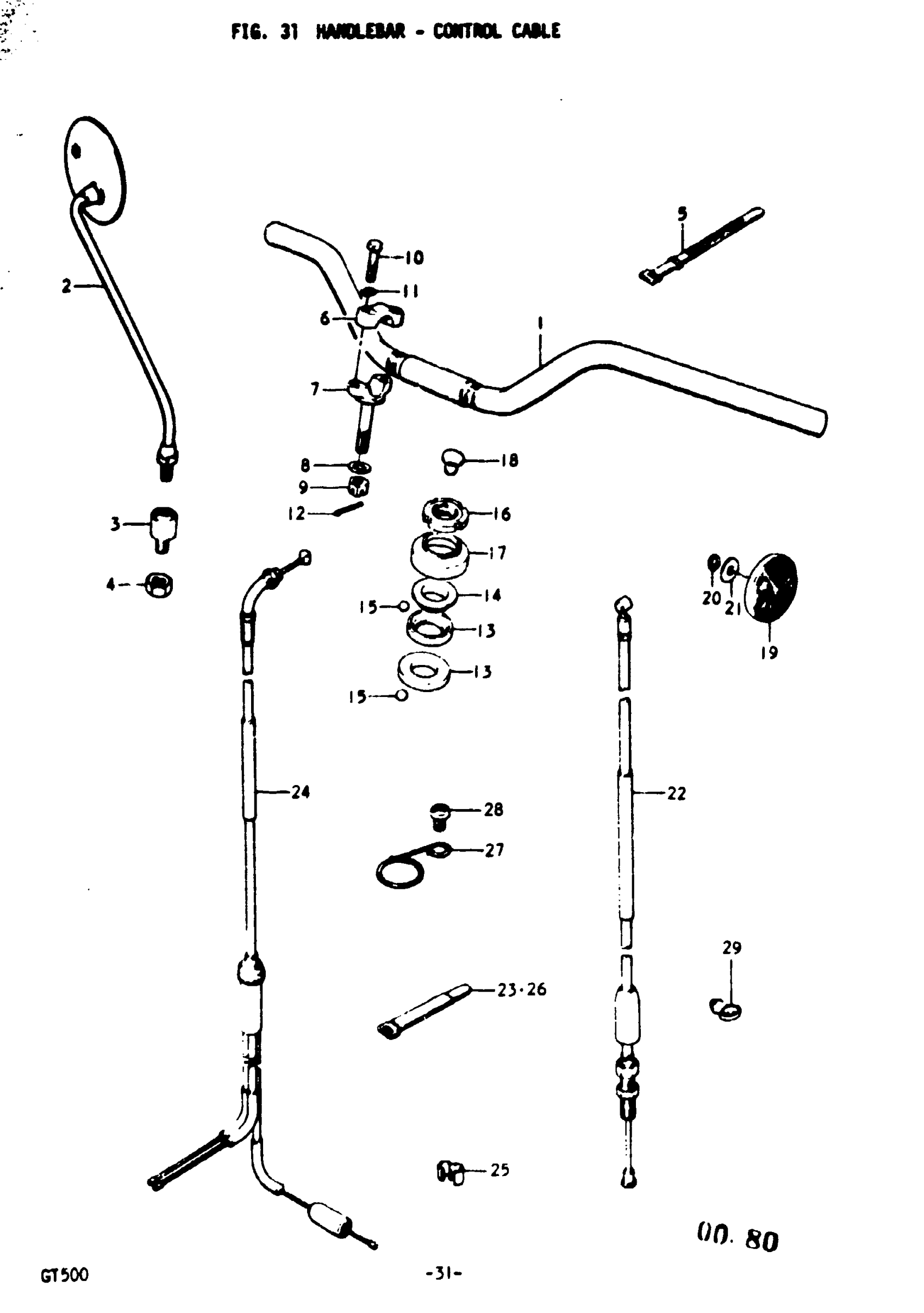

Suzuki GT500 (1977) HANDLEBAR - CONTROL CABLE Diagram

#

Description
Price

1

HANDLEBAR | A,B

56111-15103

Unavailable

2

MIRROR ASSY,RR | A,B This part replaces 56500-31011.

56500-31014

$48.02

2

MIRROR ASSY,RR | A,B This part replaces 56600-31011.

56600-31014

$48.02

3

CUSHION | A,B

56700-31000

Unavailable

4

NUT | A This part replaces 08312-32108.

08310-00107

$2.19

5

BAND, HARNESS | A,B

09407-12402

$3.04

6

CLAMP, HANDLEBAR UPPER | A,B

56211-33000

Unavailable

7

CLAMP, HANDLEBAR LOWER | A,B

56221-33000

Unavailable

8

WASHER | A,B

09160-10035

$1.78

9

NUT | A,B This part replaces 08314-11108.

08314-3110A

$1.99

10

BOLT | A,B This part replaces 01221-08307.

01204-08307

$1.99

11

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

12

PIN | A,B This part replaces 04111-20308.

04111-2030A

$1.50

13

INNER RACE, STEERING | A,B

51611-33002

$13.81

14

OUTER RACE, STEERING | A,B

51621-30001

Unavailable

15

BALL, STEERING | A,B

06111-08003

$1.49

16

NUT, STEERING STEM | A,B

51631-28000

$17.37

17

DUST SEAL, STEERING UPPER | A,B

51643-30000

Unavailable

18

CAP, STEERING | A,B

09250-08005

$2.45
