1977 Suzuki GT500 Handle Switch LH Diagram

← All diagrams

Find the part on the Handle Switch LH diagram for your 1977 Suzuki GT500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

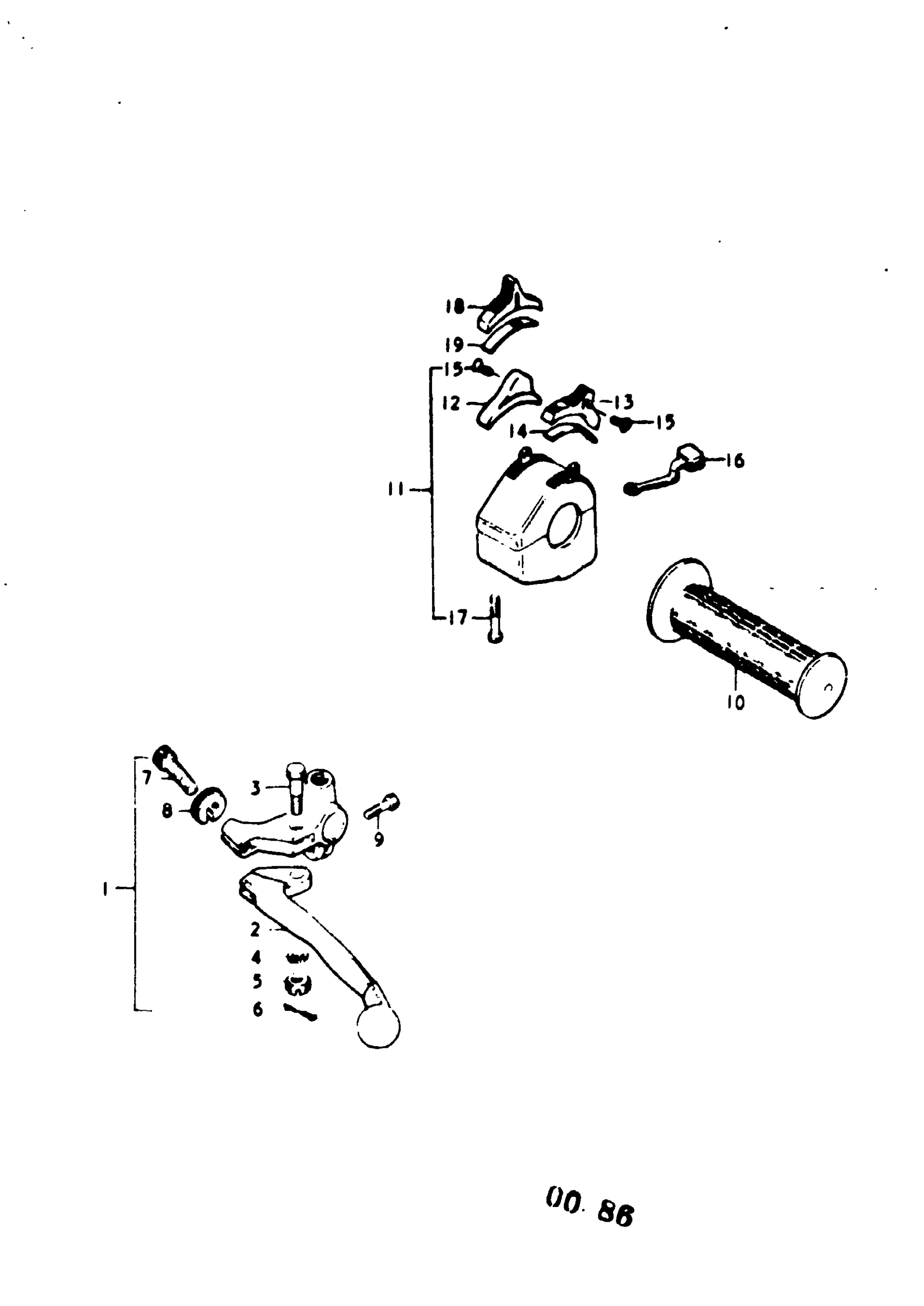

1977 Suzuki GT500 Handle Switch LH Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER ASSY, CLUTCH | A,B; Includes Item(s) 2 - 9 This part replaces 57500-18601.

57500-45010

1
Out of stock

2

LEVER, CLUTCH | A,B This part replaces 57620-11011.

57620-45010

1
Out of stock

3

BOLT | A,B This part replaces 57431-11010.

57431-11013

1
Out of stock

4

1

$2.28

In stock

5

NUT | A,B

57433-11010

1
Out of stock

6

PIN | A,B This part replaces 04111-16158.

04111-1620A

1
Out of stock

7

ADJUSTER, CABLE | A,B

57441-11010

1
Out of stock

8

NUT | A,B

57442-11010

1
Out of stock

9

BOLT | A,B This part replaces 01112-06208.

01500-06207

1
Out of stock

10

GRIP, LH | A,B

57211-15110

1
Out of stock

11

SWITCH ASSY, HANDLE LH | A,B; Includes Item(s) 12 - 17

37400-18610

1
Out of stock

12

KNOB | A,B; LIGHT SWITCH FIXED IN "ON"

57718-36630

1
Out of stock

13

KNOB, LIGHTING | A,B This part replaces 57713-33010.

57713-33011

1
Out of stock

14

SPRING | A,B

57714-33010

1
Out of stock

15

SCREW | A,B This part replaces 03121-03088.

03121-03068

2
Out of stock

16

KNOB, TURN SIGNAL | A,B

57650-33013

1
Out of stock

17

SCREW,5X22 | A,B This part replaces 09125-05105.

09125-05105-XC0

2
Out of stock

18

KNOB,HANDLE SWI | A,B; OPT This part replaces 57712-33011.

57712-33012

1
Out of stock

19

SPRING | A,B; OPT

57714-33010

1
Out of stock
