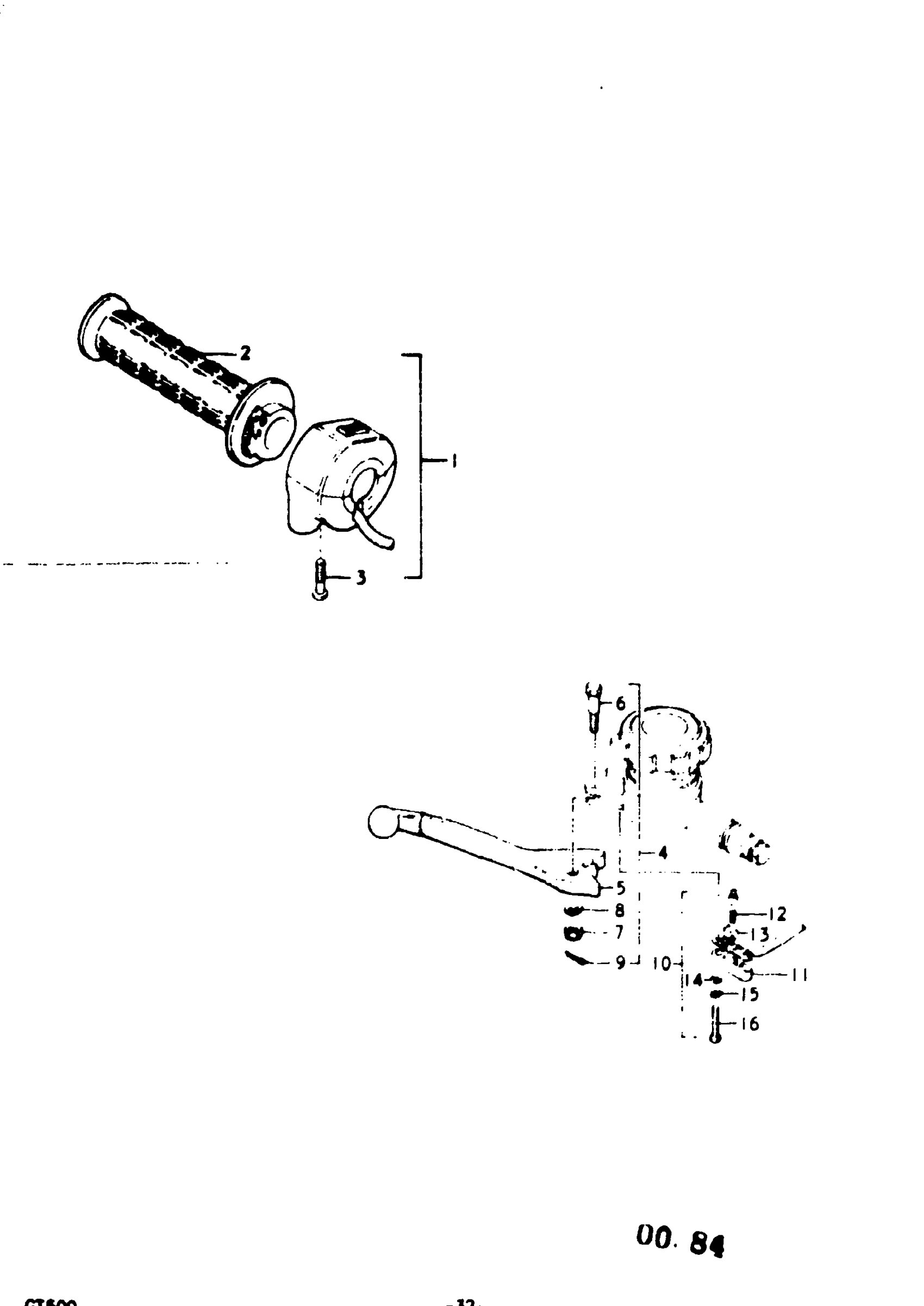

Suzuki GT500 (1977) HANDLE SWITCH RM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A,B; Includes Item(s) 2 - 3 This part replaces 57100-15610.

57100-15611

Unavailable

2

GRIP, THROTTLE | A,B

57110-33012

Unavailable

3

SCREW | A,B This part replaces 02111-05257.

02112-05257

$1.49

4

LEVER ASSY, BRAKE | A,B; Includes Item(s) 5 - 9 This part replaces 57300-18621.

57300-45010

Unavailable

5

LEVER, BRAKE | A,B This part replaces 57420-18620.

57420-45010

Unavailable

6

BOLT | A,B This part replaces 57431-18620.

57431-18621

$9.35

7

NUT | A,B

57433-11010

$5.32

8

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$1.83

9

PIN | A,B This part replaces 04111-16158.

04111-1620A

$0.96

10

SWITCH ASSY, STOP | A; TO 57460-33700

57460-33010

Unavailable

10

SWITCH ASSY, STOP | B; Includes Item(s) 11 - 16

57460-33700

$40.84

11

COVER | A,B

57481-33010

$5.50

12

HOLDER | A,B This part replaces 57462-18600.

57465-18601

$3.97

13

HOLDER | A,B This part replaces 57463-18600.

57465-18601

$3.97

14

WASHER | A,B This part replaces 08322-21038.

08322-01037

$1.95

15

WASHER,LOCK | A,B This part replaces 08321-21038.

09162-03001

$1.18

16

SCREW | A,B This part replaces 09125-03105.

09125-03105-XC0

$2.08
